Bodine Electric Company

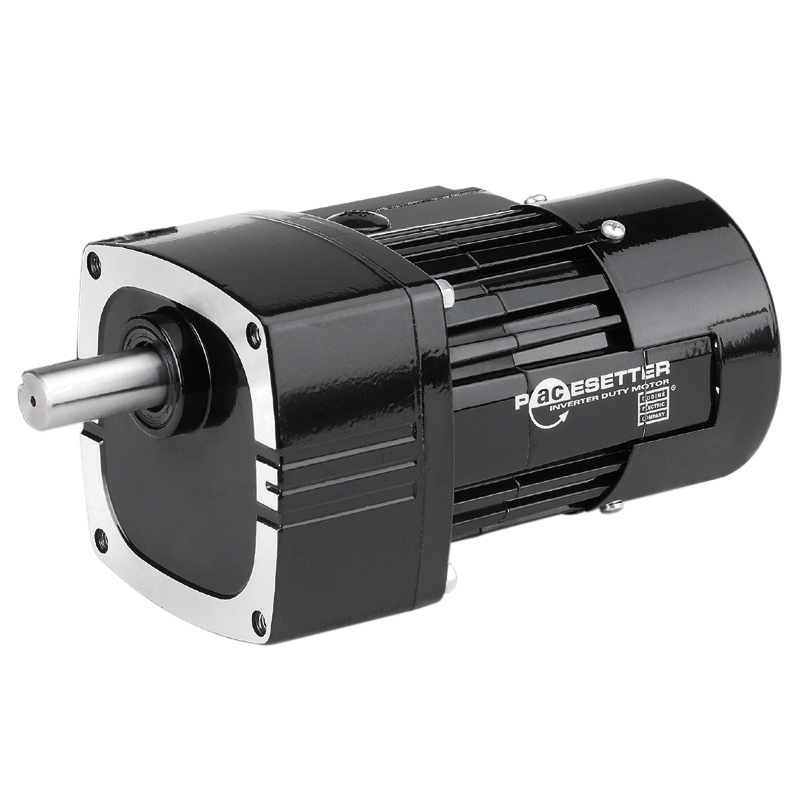

Bodine 2252 MOTOR 34R4BFPP-E3 inverter duty
Bodine Electric Company
Bodine 2252 MOTOR 34R4BFPP-E3 inverter duty
SKU45624
MFGR #2252
Your Cost: $642.36/ea
BODINE 2252 34R4BFPP-FX3 / inverter duty
BODINE 2252 34R4BFPP-FX3 / inverter duty
Application Face mounting is standard.We offer most standard models with either 230 VAC, 60Hz, 3-phase, or 230/460 VAC, 60 Hz, 3-phase winding options. Brand Bodine Electric Company Catalog Number 2252 Enclosure Type TEFC (Totally Enclosed Fan Cooled) Frequency Rating 60 Full Load Current 1 A Gear Ratio 60:1 Harmonization Code 8501.51.3020 Horsepower 1/6 Insulation Class F IP Rating IP20 Manufacturer Bodine Electric Company Motor Power AC Mounting Type Face NEMA Frame Size 34R Optional Accessories Die cast terminal box kit model 0984,1984 achieves IP-44 rating."L" bracket kit model 0969 permits base, ceiling, and sidewall mounting.Adapter plate kit model 0995 provides for drop-in replacement of competitive gearmotors. Phase 3 pH Shaft Type Parallel Stage 3 Standard CSA;CURUS;ROHS;UL Stock Status NONSTOCK Supply Voltage 230 V UPC 11 78169302252 UPC 12 78169302252 Face mounting is standard.We offer most standard models with either 230 VAC, 60Hz, 3-phase, or 230/460 VAC, 60 Hz, 3-phase winding options. -Quintsulation™5-stage insulation system designed to meet NEMA MG 1-1993, Section IV, Part 31--Variable speed, 3-phase design for operation with a wide range of inverter (AC drive) products--Inverter-Grade magnet wire and Class "F" insulation system for increased protection against spikes and corona damage caused by the inverter--All new optimized motor and gearhead combinations for maximum output power in the smallest package--UL recognized for construction (cURus), and in compliance with the Low Voltage Directive "CE"--Totally enclosed IP-20 rating. IP-44 with optional t-box kit installed--Unvented gearhousing for universal horizontal mounting--Permanently lubricated with high-performance lubricant--Hardened helical gearing for quietness and high output to size ratio-
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Face mounting is standard.We offer most standard models with either 230 VAC, 60Hz, 3-phase, or 230/460 VAC, 60 Hz, 3-phase winding options. |
| Brand | Bodine Electric Company |
| Catalog Number | 2252 |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Frequency Rating | 60 |
| Full Load Current | 1 A |
| Gear Ratio | 60:1 |
| Harmonization Code | 8501.51.3020 |
| Horsepower | 1/6 |
| Insulation Class | F |
| IP Rating | IP20 |
| Manufacturer | Bodine Electric Company |
| Motor Power | AC |
| Mounting Type | Face |
| NEMA Frame Size | 34R |
| Optional Accessories | Die cast terminal box kit model 0984,1984 achieves IP-44 rating."L" bracket kit model 0969 permits base, ceiling, and sidewall mounting.Adapter plate kit model 0995 provides for drop-in replacement of competitive gearmotors. |
| Phase | 3 pH |
| Shaft Type | Parallel |
| Stage | 3 |
| Standard | CSA;CURUS;ROHS;UL |
| Stock Status | NONSTOCK |
| Supply Voltage | 230 V |
| UPC 11 | 78169302252 |
| UPC 12 | 78169302252 |
| Face mounting is standard.We offer most standard models with either 230 VAC, 60Hz, 3-phase, or 230/460 VAC, 60 Hz, 3-phase winding options. |
| -Quintsulation™5-stage insulation system designed to meet NEMA MG 1-1993, Section IV, Part 31--Variable speed, 3-phase design for operation with a wide range of inverter (AC drive) products--Inverter-Grade magnet wire and Class "F" insulation system for increased protection against spikes and corona damage caused by the inverter--All new optimized motor and gearhead combinations for maximum output power in the smallest package--UL recognized for construction (cURus), and in compliance with the Low Voltage Directive "CE"--Totally enclosed IP-20 rating. IP-44 with optional t-box kit installed--Unvented gearhousing for universal horizontal mounting--Permanently lubricated with high-performance lubricant--Hardened helical gearing for quietness and high output to size ratio- |
