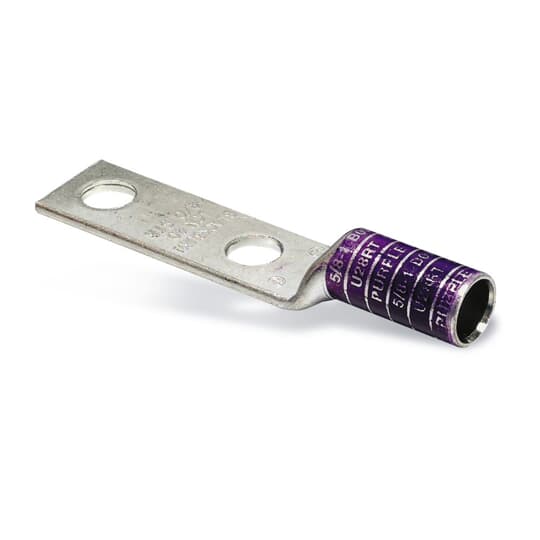

Blackburn® LCN6-12 LCN 2-Hole Compression Lug, 6 AWG Copper Conductor, 1/2 in Stud, Copper
Lug Compression Connectors
569790
MFG #: LCN6-12
Blackburn®
2005.46000
/ ea
Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.
- Compliance Cert URL - Blackburn_LCN6_12_RoHS_Sheet.pdf(Compliance Cert URL)
- http://www.TNB.com(Seller Home Page URL)
- Install Instructions 1 URL - TA01328-TB2.pdf(Install Instructions 1 URL)
- Line Drawing URL - lcn814_bb1ld(Line Drawing URL)
- Spec Sheet URL - 007_CAT3_F111.pdf(Spec Sheet URL)
- Spec Sheet URL - 12055_92MKVH156CWYOL7G.pdf(Spec Sheet URL)
- Tech Drawing URL - lcn814_bb1.JPG(Tech Drawing URL)
- Features
| Long Barrel Copper Lug |
| For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord |
| Made of high conductivity seamless copper tubing |
| Tin plated for corrosion-resistance |
| Specially chamfered barrel for ease of installation |
| Color coded for matching die identification |
| Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used |
| Comply with subpart 111.60-17 of federal registers coast guard electrical engineering rules and regulations |
| Heavy duty design which permits additional crimp for added mechanical strength |
