Blackburn® ADR2 Type ADR Dual Rated Mechanical Terminal Lug, 14 to 2 AWG Copper/Stranded Aluminum Conductor, 1/4 in Stud

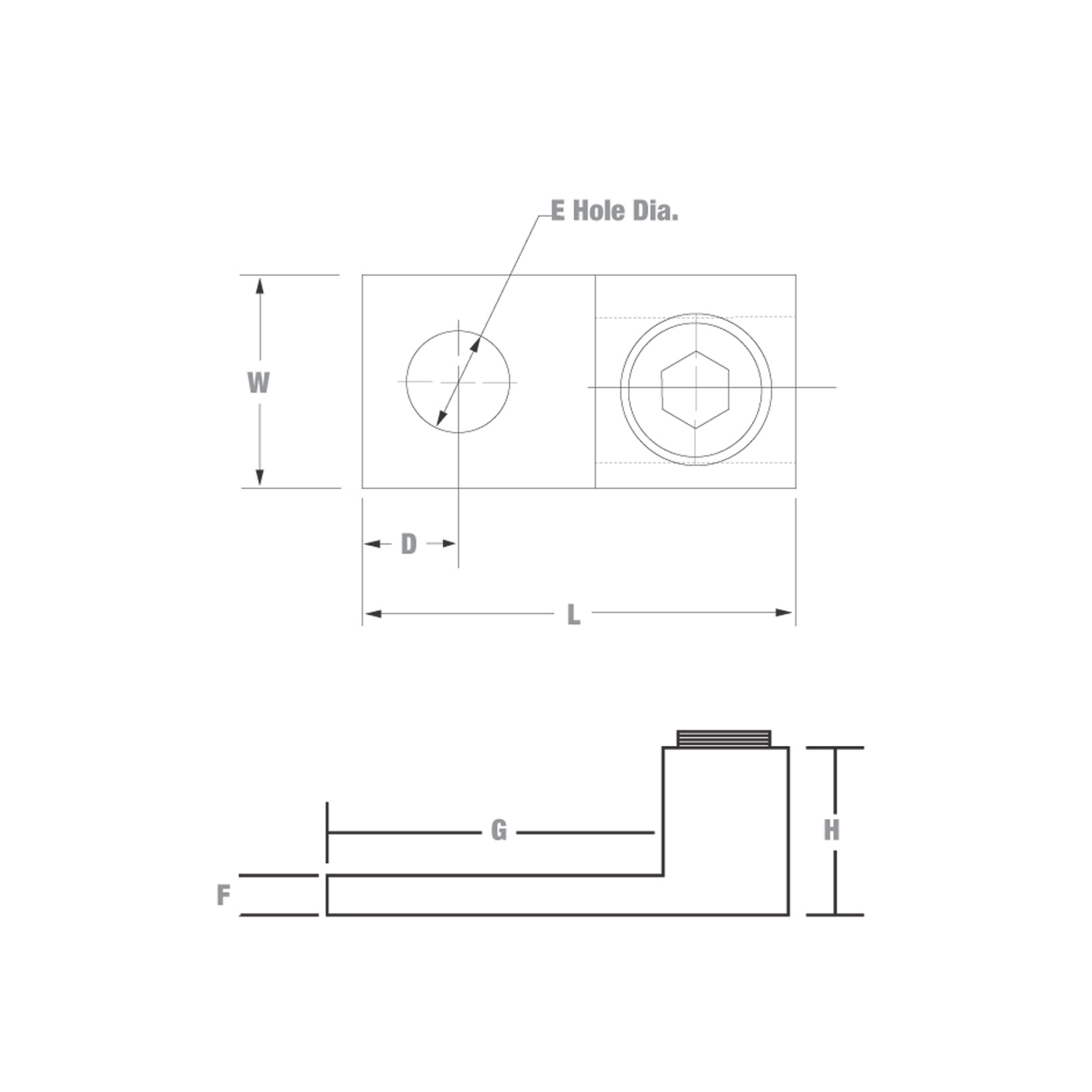

Custom_Product_Images_Illustration
Blackburn® ADR2 Type ADR Dual Rated Mechanical Terminal Lug, 14 to 2 AWG Copper/Stranded Aluminum Conductor, 1/4 in Stud
SKU93618
MFGR #ADR2
Your Cost: $2.4765/ea($247.65 / c)
Blackburn® cast, forged, or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of U.L. and C.S.A. certified solutions for your electrical interface needs.
Blackburn® cast, forged, or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of U.L. and C.S.A. certified solutions for your electrical interface needs.
Alternate Catalog Number 7TAH006600R0197 ARRA Compliant C Buy American Compliant C Catalog Number ADR2 Conductor Range [Main|Primary] 14-2 Country of Origin MX Currency USD Dimensions 1-5/32 in L x 1/2 in W x 9/16 in H EU RoHS Indicator C Finish Tin Plated Gross Volume Per Pack 0.02 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.0200 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 2.90 in Height [Metric] 7.3660 cm Item Group 1G Item Group 2 1GG Length 4.40 in Length [Metric] 11.1760 cm Number Of Conductors 1 Number Of Mounting Holes 1 Returnable A Specifications 1-Conductor, Slotted Screw, 1/4 in Hole Spacing Standard UL E9809 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedUL File No. E9809 Tongue Size 11/16 in L x 1/2 in W x 7/64 in THK Tongue Type Straight Type Type ADR-ALCUL Dual Rated UNSPSC 39121408 UPC 11 78378661000 UPC 12 783786610006 Voltage Rating 600 VAC Width 3.30 in Width [Metric] 8.3820 cm Stock Status NONSTOCK Brand Blackburn® Manufacturer Thomas & Betts Conductor Size 14 to 2 AWG Conductor Type Aluminum/Stranded Copper Material Aluminum Number of Bolt Holes 1 Stud Size 1/4 in Easy Installation - no special tools required. Slotted screw-on lugs up through 2/0 stranded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 7TAH006600R0197 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | ADR2 |
| Conductor Range [Main|Primary] | 14-2 |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1-5/32 in L x 1/2 in W x 9/16 in H |
| EU RoHS Indicator | C |
| Finish | Tin Plated |
| Gross Volume Per Pack | 0.02 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.0200 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 2.90 in |
| Height [Metric] | 7.3660 cm |
| Item Group | 1G |
| Item Group 2 | 1GG |
| Length | 4.40 in |
| Length [Metric] | 11.1760 cm |
| Number Of Conductors | 1 |
| Number Of Mounting Holes | 1 |
| Returnable | A |
| Specifications | 1-Conductor, Slotted Screw, 1/4 in Hole Spacing |
| Standard | UL E9809 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedUL File No. E9809 |
| Tongue Size | 11/16 in L x 1/2 in W x 7/64 in THK |
| Tongue Type | Straight |
| Type | Type ADR-ALCUL Dual Rated |
| UNSPSC | 39121408 |
| UPC 11 | 78378661000 |
| UPC 12 | 783786610006 |
| Voltage Rating | 600 VAC |
| Width | 3.30 in |
| Width [Metric] | 8.3820 cm |
| Stock Status | NONSTOCK |
| Brand | Blackburn® |
| Manufacturer | Thomas & Betts |
| Conductor Size | 14 to 2 AWG |
| Conductor Type | Aluminum/Stranded Copper |
| Material | Aluminum |
| Number of Bolt Holes | 1 |
| Stud Size | 1/4 in |
| Easy Installation - no special tools required. |
| Slotted screw-on lugs up through 2/0 stranded |
