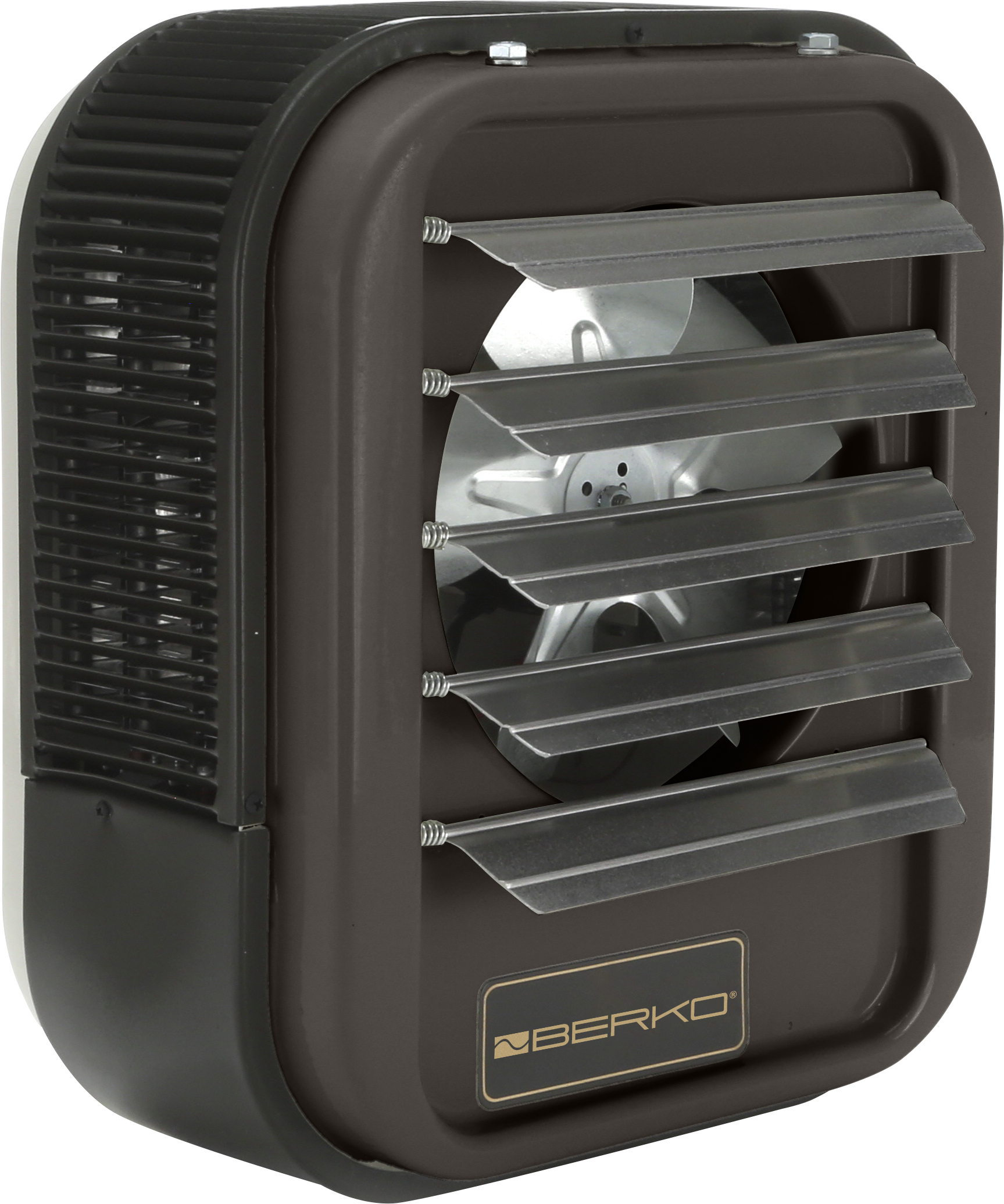

Berko® HUHAA1024 1 to 3-Phase Unit Heater, 7.5/10 kW, 208/240 VAC
Strip Heaters
173486
MFG #: HUHAA1024
QMARK®
1611.55000
/ ea
Berko® Unit Heater, 1 to 3-Phase, Series: HUHAA, 208/240 VAC, 36/42 A, 7.5/10 kW Power, 650 cfm Flow Rate, 1600 rpm Speed, 49 deg F, Surface Mounting, 9 ft Horizontal/14 ft Vertical Mounting Height, 20 ga Steel, Bronze, Polyester Powder Coated, 19 in W x 8-1/2 in D x 21-3/4 in H Dimensions
- 360 Degree View URL - gqctrahjinqbzsehfebo.jpg(360 Degree View URL)
- Catalog URL - Marley_56001_Catalog.pdf(Catalog URL)
- http://www.marleymep.com(Seller Home Page URL)
- Install Instructions 1 URL - 11271_KFJU09W1QGTHDVM3.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 11271_VDXMRK4J7HLZN5E3.pdf(Install Instructions 1 URL)
- Install Instructions URL - duwfpxzsgfadwpnxer0w.pdf(Install Instructions URL)
- Line Drawing URL - 11271_VU37A428CYGW5IPR.jpg(Line Drawing URL)
- Spec Sheet URL - 11271_QGP2TDKC87MSWV4U.pdf(Spec Sheet URL)
- Features
| Advanced Airflow |
| Advanced pull-through air flow design draws air across heating element for more even air distribution and cooler element operation |
| 32 compatible models (no need to try to assemble a heating system from 70 to 80 models) |
| Forced air unit heater (field interchangeable) |
| Branch circuit fusing (when required to meet NEC requirements for maximum 24 A/ckt) |
| Automatic control delays fan action until heating element is warm, when thermostat is satisfied, fan continues to operate until heating element is cool, by preventing circulation of cold air and expelling excess heat, comfort level is raised and component life is extended |
| Specially designed venturi outlet to meet that added throw required in vertical position, choice of optional diffusers for variety of air patterns, maximizing heat concentration and coverage in the vertical position |
| Individually adjustable discharge louvers to control air flow |
| Transformer standard on most models, providing a safer and more accurate |
| When thermostat is satisfied, fan continues to operate until heating element is cool |
| By preventing circulation of cold air and expelling excess heat, comfort level is raised and component life is extended |
