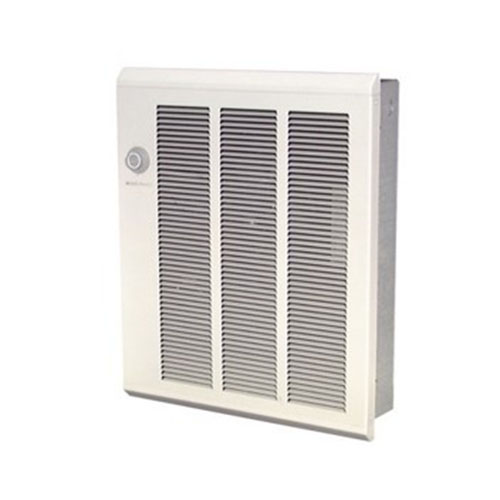

Berko® FRA4027 4,000/2,000W 277V (3,000/1,500W 240V) Architectural Wall Heater, Fan Forced
SKUPDW~628407
MFGR #FRA4027
Your Cost: $1,102.39/ea
240/277 V; 12.5/14.4 AMPERE; POWER RATING 3000/4000 W; 1 PHASE; WALL MOUNT THERMOSTAT CONTROL; HEATING CAPACITY 10239/13652 BTU/HR; COPPER BRAZED STEEL FIN HEATING ELEMENT; LENGTH 14 5/16 INCH; HEIGHT 18 1/4 INCH; STEEL; POWDER COATED; NAVAJO WHITE
240/277 V; 12.5/14.4 AMPERE; POWER RATING 3000/4000 W; 1 PHASE; WALL MOUNT THERMOSTAT CONTROL; HEATING CAPACITY 10239/13652 BTU/HR; COPPER BRAZED STEEL FIN HEATING ELEMENT; LENGTH 14 5/16 INCH; HEIGHT 18 1/4 INCH; STEEL; POWDER COATED; NAVAJO WHITE
Amperage Rating 12.5/14.4 A Catalog Number FRA4027 Color White Country of Origin USA Finish Enamel Gross Weight Per Pack 23.0000 lb Material Steel Mounting Type Wall Series FRA Type Complementary Fan Forced UNSPSC 40101821 UPC 11 68536002753 Stock Status NONSTOCK Brand Berko® Manufacturer Marley Engineered Products Power Rating 4/3 kW Voltage Rating 208/277 VAC Heating element are non-glowing design consisting of 80/20 Ni-Ch resistance wire enclosed in a steel sheath to which steel plate fins are brazed, element shall cover the entire air discharge area to ensure uniform heating of all discharge air Fan shall be five-bladed aluminum, fan motor shall be totally enclosed Fan delay switch shall be of bi-metallic, snap-action type and shall activate fan after heating element reaches operating temperature and continue to operate until the heating element is cool Thermostat shall be of the bi-metallic, snap-action type with enclosed contacts A thermal cutout shall be Built-into the system to shut off the heater in the event of overheating A double-pole, single throw disconnect switch shall be mounted on the back box to provide positive disconnect The back box shall be commercial grade galvanized steel and shall contain knockouts through which power leads are brought Louvered front cover shall be of commercial grade steel finished in navajo white, it shall attach to the fan deck via snaps in the high impact plastic trim pieces and shall have no exposed screw heads Steel grille
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
Amperage Rating | 12.5/14.4 A |
Catalog Number | FRA4027 |
Color | White |
Country of Origin | USA |
Finish | Enamel |
Gross Weight Per Pack | 23.0000 lb |
Material | Steel |
Mounting Type | Wall |
Series | FRA |
Type | Complementary Fan Forced |
UNSPSC | 40101821 |
UPC 11 | 68536002753 |
Stock Status | NONSTOCK |
Brand | Berko® |
Manufacturer | Marley Engineered Products |
Power Rating | 4/3 kW |
Voltage Rating | 208/277 VAC |
Heating element are non-glowing design consisting of 80/20 Ni-Ch resistance wire enclosed in a steel sheath to which steel plate fins are brazed, element shall cover the entire air discharge area to ensure uniform heating of all discharge air |
Fan shall be five-bladed aluminum, fan motor shall be totally enclosed |
Fan delay switch shall be of bi-metallic, snap-action type and shall activate fan after heating element reaches operating temperature and continue to operate until the heating element is cool |
Thermostat shall be of the bi-metallic, snap-action type with enclosed contacts |
A thermal cutout shall be Built-into the system to shut off the heater in the event of overheating |
A double-pole, single throw disconnect switch shall be mounted on the back box to provide positive disconnect |
The back box shall be commercial grade galvanized steel and shall contain knockouts through which power leads are brought |
Louvered front cover shall be of commercial grade steel finished in navajo white, it shall attach to the fan deck via snaps in the high impact plastic trim pieces and shall have no exposed screw heads |
Steel grille |
