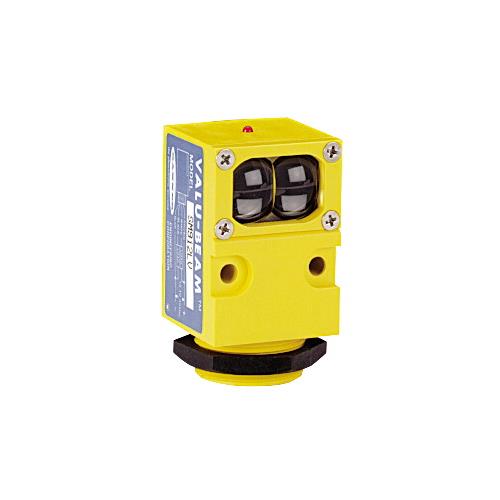

Banner Engineering Valu-Beam® SMA91EQD Photoelectric Sensor, Rectangle Shape
SKU149456
MFGR #SMA91EQD
$/ea
Banner Engineering Valu-Beam® Photoelectric Sensor, Rectangle, LED Light Source
Banner Engineering Valu-Beam® Photoelectric Sensor, Rectangle, LED Light Source
Application For Use With 912 Series Photoelectric Sensor Receiver Catalog Number SMA91EQD Connection 3-Pin Mini-Style Quick Disconnect Country of Origin US Enclosure IEC IP66 NEMA 1, 2, 3, 3S, 4, 4X, 12 and 13 Reinforced Thermoplastic Polyester Environmental Conditions 90 PCT At 50 ° C Relative Humidity Gross Weight Per Pack 0.4120 lb Lens Acrylic Operating Temperature -20 To 70 Sensing Beam 880 NMTR Infrared Sensing Range 60 Size 36.6 MM Length X 35.6 MM Width X 77.5 MM Height Standards CE Marked, CSA Approval, UL Approval Type Opposed Mode Emitter UNSPSC 39121528 UPC 11 66248825312 UPC 12 66248825312 Voltage Rating 10 - 250 V Stock Status NONSTOCK Brand Banner® Manufacturer Banner Engineering Corp. For Use With 912 Series Photoelectric Sensor Receiver Rear panel sensitivity adjustment and light/dark operate switch; DC - protected against reverse polarity and transient voltages; AC - protected against transient voltages AC models have an SPST solid-state output rated for up to 3/4 amp with simple 2-wires hook-up DC models include Banners alignment Indicating device (AID™) system Choose models with integral 2 m (6.5 ft) cable or mini-style QD (quick disconnect) connector; 9 m (30 ft) cables are also available
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With 912 Series Photoelectric Sensor Receiver |
| Catalog Number | SMA91EQD |
| Connection | 3-Pin Mini-Style Quick Disconnect |
| Country of Origin | US |
| Enclosure | IEC IP66 NEMA 1, 2, 3, 3S, 4, 4X, 12 and 13 Reinforced Thermoplastic Polyester |
| Environmental Conditions | 90 PCT At 50 ° C Relative Humidity |
| Gross Weight Per Pack | 0.4120 lb |
| Lens | Acrylic |
| Operating Temperature | -20 To 70 |
| Sensing Beam | 880 NMTR Infrared |
| Sensing Range | 60 |
| Size | 36.6 MM Length X 35.6 MM Width X 77.5 MM Height |
| Standards | CE Marked, CSA Approval, UL Approval |
| Type | Opposed Mode Emitter |
| UNSPSC | 39121528 |
| UPC 11 | 66248825312 |
| UPC 12 | 66248825312 |
| Voltage Rating | 10 - 250 V |
| Stock Status | NONSTOCK |
| Brand | Banner® |
| Manufacturer | Banner Engineering Corp. |
| For Use With 912 Series Photoelectric Sensor Receiver |
| Rear panel sensitivity adjustment and light/dark operate switch; DC - protected against reverse polarity and transient voltages; AC - protected against transient voltages |
| AC models have an SPST solid-state output rated for up to 3/4 amp with simple 2-wires hook-up |
| DC models include Banners alignment Indicating device (AID™) system |
| Choose models with integral 2 m (6.5 ft) cable or mini-style QD (quick disconnect) connector; 9 m (30 ft) cables are also available |
