BANNER®

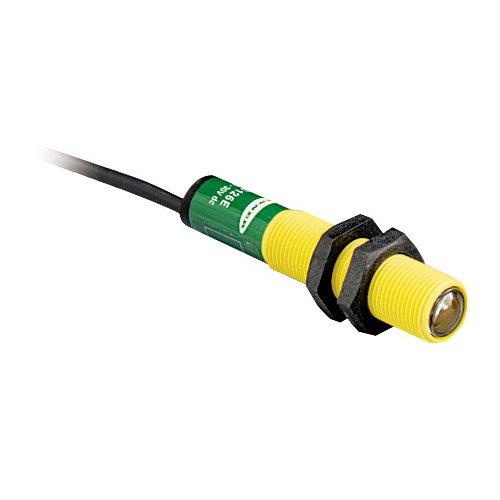

Banner Engineering S126EQP S12 Photoelectric Sensor, Barrel Shape, 15000 mm Sensing, Visible Red Sensing Beam, NPN/PNP Output
BANNER®
Banner Engineering S126EQP S12 Photoelectric Sensor, Barrel Shape, 15000 mm Sensing, Visible Red Sensing Beam, NPN/PNP Output
SKU241211
MFGR #S126EQP
$/ea
Banner Engineering Photoelectric Sensor, Series: S12, Barrel, Opposed Sensing Method, 15000 mm Sensing Range, Visible Red Sensing Beam, 1.5 to 3 ms Response, NPN/PNP Output, 10 to 30 VDC, 4-Pin M8 Pigtail Quick-Disconnect, Audible Alarm/LED Light Source, NEMA 6P/IP67, -40 to 70 deg C Operating, Environmental Conditions: 90% at 50 deg C Maximum Relative Humidity
Banner Engineering Photoelectric Sensor, Series: S12, Barrel, Opposed Sensing Method, 15000 mm Sensing Range, Visible Red Sensing Beam, 1.5 to 3 ms Response, NPN/PNP Output, 10 to 30 VDC, 4-Pin M8 Pigtail Quick-Disconnect, Audible Alarm/LED Light Source, NEMA 6P/IP67, -40 to 70 deg C Operating, Environmental Conditions: 90% at 50 deg C Maximum Relative Humidity
Catalog Number S126EQP Connection Type 4-Pin M8 Pigtail Quick-Disconnect Country of Origin MX Enclosure Type NEMA 6P/IP67 Environmental Conditions 90% at 50 deg C Maximum Relative Humidity Gross Weight Per Pack 0.0800 lb Light Source Audible Alarm/LED Operating Temperature -40 to 70 °C Output Type NPN/PNP Response Time 1.5 to 3 ms Sensing Beam Red Laser Sensing Method Opposed Sensing Range 15000 mm Series S12 Shape Barrel Standards CE Approval UNSPSC 39121528 UPC 11 66248842493 UPC 12 66248842493 Voltage Rating 10 to 30 VDC Stock Status NONSTOCK Brand BANNER® Manufacturer Banner Engineering Corp. Barrel housing style; One output may be used as a marginal signal alarm; LED indications for power on, output overload, object sensed, and low gain conditions; Protected against reverse polarity and transient voltages Emitter sensing mode (detailed) Thermoplastic primary housing material M8 (pico) quick disconnect cable connection 100 ms delay at power-up 375 us repeatability Polycarbonate lens material 12 mm barrel diameter Pigtail quick disconnect cable connection
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | S126EQP |
| Connection Type | 4-Pin M8 Pigtail Quick-Disconnect |
| Country of Origin | MX |
| Enclosure Type | NEMA 6P/IP67 |
| Environmental Conditions | 90% at 50 deg C Maximum Relative Humidity |
| Gross Weight Per Pack | 0.0800 lb |
| Light Source | Audible Alarm/LED |
| Operating Temperature | -40 to 70 °C |
| Output Type | NPN/PNP |
| Response Time | 1.5 to 3 ms |
| Sensing Beam | Red Laser |
| Sensing Method | Opposed |
| Sensing Range | 15000 mm |
| Series | S12 |
| Shape | Barrel |
| Standards | CE Approval |
| UNSPSC | 39121528 |
| UPC 11 | 66248842493 |
| UPC 12 | 66248842493 |
| Voltage Rating | 10 to 30 VDC |
| Stock Status | NONSTOCK |
| Brand | BANNER® |
| Manufacturer | Banner Engineering Corp. |
| Barrel housing style; One output may be used as a marginal signal alarm; LED indications for power on, output overload, object sensed, and low gain conditions; Protected against reverse polarity and transient voltages |
| Emitter sensing mode (detailed) |
| Thermoplastic primary housing material |
| M8 (pico) quick disconnect cable connection |
| 100 ms delay at power-up |
| 375 us repeatability |
| Polycarbonate lens material |
| 12 mm barrel diameter |
| Pigtail quick disconnect cable connection |
