BANNER®

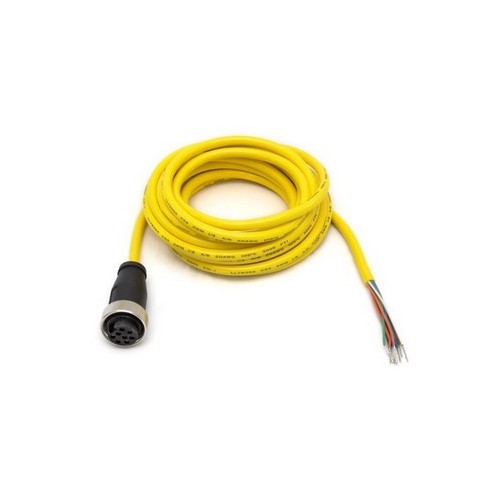

Banner Engineering QDS-850C Single End Cordset, 15.2 m L Cable
BANNER®
Banner Engineering QDS-850C Single End Cordset, 15.2 m L Cable
SKU157781
MFGR #QDS-850C
$/ea
Banner Engineering Cordset, Single End, Polyurethane, 15.2 m Cable Length, PVC Cable, 250 VAC/300 VDC, 9 A, Black/Blue/Brown/Green/Orange/Violet/White/Yellow Wire Pin Colors, NEMA IP67
Banner Engineering Cordset, Single End, Polyurethane, 15.2 m Cable Length, PVC Cable, 250 VAC/300 VDC, 9 A, Black/Blue/Brown/Green/Orange/Violet/White/Yellow Wire Pin Colors, NEMA IP67
Amperage Rating 9 A Cable Material PVC Catalog Number QDS-850C Connector Material Polyurethane Country of Origin CN/TW/US Gross Weight Per Pack 2.6600 lb Length [Metric] 15.2 m NEMA Rating NEMA IP67 Type Single End UNSPSC 26121652 UPC 11 66248867214 UPC 12 66248867214 Voltage Rating 250 VAC/300 VDC Wire Pin Colors Black/Blue/Brown/Green/Orange/Violet/White/Yellow Stock Status NONSTOCK Brand BANNER® Manufacturer Banner Engineering Corp. Cable Length 15.2 m 8-contacts 1 number of connectors PVC cable jacket material Yellow cable jacket color PUR black connector body material 6.9 mm outside cable diameter Nickel plated brass coupling material -40 to 105 deg C temperature Mini style primary connector type Flying leads secondary connector Female primary gender Straight primary orientation 20 AWG conductor
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 9 A |
| Cable Material | PVC |
| Catalog Number | QDS-850C |
| Connector Material | Polyurethane |
| Country of Origin | CN/TW/US |
| Gross Weight Per Pack | 2.6600 lb |
| Length [Metric] | 15.2 m |
| NEMA Rating | NEMA IP67 |
| Type | Single End |
| UNSPSC | 26121652 |
| UPC 11 | 66248867214 |
| UPC 12 | 66248867214 |
| Voltage Rating | 250 VAC/300 VDC |
| Wire Pin Colors | Black/Blue/Brown/Green/Orange/Violet/White/Yellow |
| Stock Status | NONSTOCK |
| Brand | BANNER® |
| Manufacturer | Banner Engineering Corp. |
| Cable Length | 15.2 m |
| 8-contacts |
| 1 number of connectors |
| PVC cable jacket material |
| Yellow cable jacket color |
| PUR black connector body material |
| 6.9 mm outside cable diameter |
| Nickel plated brass coupling material |
| -40 to 105 deg C temperature |
| Mini style primary connector type |
| Flying leads secondary connector |
| Female primary gender |
| Straight primary orientation |
| 20 AWG conductor |
