BANNER®

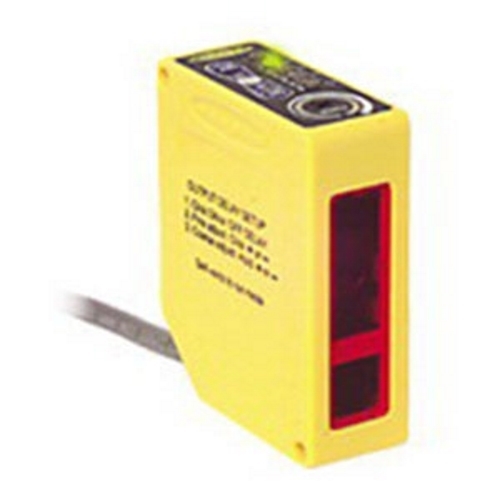

Banner Engineering Q60VR3LAF2000Q1 Q60 Proximity Adjustable Field Sensor, Rectangle, 2000 mm Sensing, Laser Sensing Beam, 15 ms Response
BANNER®
Banner Engineering Q60VR3LAF2000Q1 Q60 Proximity Adjustable Field Sensor, Rectangle, 2000 mm Sensing, Laser Sensing Beam, 15 ms Response
SKU304464
MFGR #Q60VR3LAF2000Q1
Your Cost: $496.30/ea
List: Banner Engineering Adjustable Field Sensor, Proximity, Series: Q60, Rectangle, Adjustable Background Suppression Sensing Method, 2000 mm Sensing Range, Laser Sensing Beam, 15 ms Response, SPST Electromechanical Relay Output, 24 to 250 VAC/12 to 250 VDC, M8, LED Light Source, NEMA 6/IP67, -10 to 45 deg C Operating, Environmental Conditions: 95% at 50 deg C Maximum Relative Humidity
Banner Engineering Adjustable Field Sensor, Proximity, Series: Q60, Rectangle, Adjustable Background Suppression Sensing Method, 2000 mm Sensing Range, Laser Sensing Beam, 15 ms Response, SPST Electromechanical Relay Output, 24 to 250 VAC/12 to 250 VDC, M8, LED Light Source, NEMA 6/IP67, -10 to 45 deg C Operating, Environmental Conditions: 95% at 50 deg C Maximum Relative Humidity
Catalog Number Q60VR3LAF2000Q1 Connection Type M8 Country of Origin US Enclosure Type NEMA 6/IP67 Environmental Conditions 95% at 50 deg C Maximum Relative Humidity Gross Weight Per Pack 0.3200 lb Light Source LED Operating Temperature -10 to 45 °C Sensing Method Adjustable Background Suppression Series Q60 Standards CE Marked, UL Listed Type Proximity UNSPSC 39121528 UPC 11 66248871745 UPC 12 66248871745 Voltage Rating 24 to 250 VAC/12 to 250 VDC Stock Status NONSTOCK Brand Banner® Manufacturer Banner Engineering Corp. Output Type SPST Electromechanical Relay Response Time 15 ms Sensing Beam Laser Sensing Range 2000 mm Shape Rectangular Rectangular housing style; Long-range adjustable-field background suppression sensor detects objects within a defined sensing field, and ignores objects located beyond the sensing field cutoff; Powerful visible red laser sensing beam; Two-turn, logarithmic cutoff point adjustment for easy setting of cutoff point at long range; rotating pointer indicates relative cutoff point setting; Easy push-button or remote setting of light/dark operate and output timing; continuous status indicators verify all settings at a glance; Output ON and/or OFF delays adjustable from 8 MS to 16 S; Supply protection circuitry: Protected against reverse polarity and transient voltages; Output protection circuitry: Protected against false pulse on power-up; Laser characteristics: spot size - approximately 4 X 2 MM throughout range (collimated beam), 5 milliradians angle of divergence Thermoplastic housing material M8 no quick disconnect cable connection Light/dark switching operation Remote teach is not possible Acrylic lens material Screw adjustment E/m relay input/output Class 2 laser classification 1000 ms delay at power-up 500 us repeatability Timing (hold/delay) can possible
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | Q60VR3LAF2000Q1 |
| Connection Type | M8 |
| Country of Origin | US |
| Enclosure Type | NEMA 6/IP67 |
| Environmental Conditions | 95% at 50 deg C Maximum Relative Humidity |
| Gross Weight Per Pack | 0.3200 lb |
| Light Source | LED |
| Operating Temperature | -10 to 45 °C |
| Sensing Method | Adjustable Background Suppression |
| Series | Q60 |
| Standards | CE Marked, UL Listed |
| Type | Proximity |
| UNSPSC | 39121528 |
| UPC 11 | 66248871745 |
| UPC 12 | 66248871745 |
| Voltage Rating | 24 to 250 VAC/12 to 250 VDC |
| Stock Status | NONSTOCK |
| Brand | Banner® |
| Manufacturer | Banner Engineering Corp. |
| Output Type | SPST Electromechanical Relay |
| Response Time | 15 ms |
| Sensing Beam | Laser |
| Sensing Range | 2000 mm |
| Shape | Rectangular |
| Rectangular housing style; Long-range adjustable-field background suppression sensor detects objects within a defined sensing field, and ignores objects located beyond the sensing field cutoff; Powerful visible red laser sensing beam; Two-turn, logarithmic cutoff point adjustment for easy setting of cutoff point at long range; rotating pointer indicates relative cutoff point setting; Easy push-button or remote setting of light/dark operate and output timing; continuous status indicators verify all settings at a glance; Output ON and/or OFF delays adjustable from 8 MS to 16 S; Supply protection circuitry: Protected against reverse polarity and transient voltages; Output protection circuitry: Protected against false pulse on power-up; Laser characteristics: spot size - approximately 4 X 2 MM throughout range (collimated beam), 5 milliradians angle of divergence |
| Thermoplastic housing material |
| M8 no quick disconnect cable connection |
| Light/dark switching operation |
| Remote teach is not possible |
| Acrylic lens material |
| Screw adjustment |
| E/m relay input/output |
| Class 2 laser classification |
| 1000 ms delay at power-up |
| 500 us repeatability |
| Timing (hold/delay) can possible |
