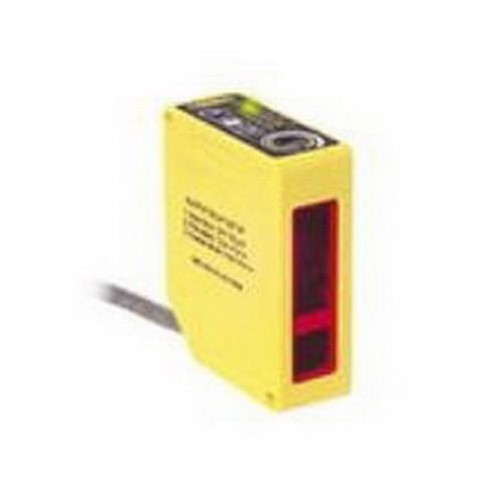

Banner Engineering Q60VR3AF2000 Q60 Proximity Adjustable Field Sensor, Rectangle, 2000 mm Sensing, Infrared LED Sensing Beam
Banner Engineering Q60VR3AF2000 Q60 Proximity Adjustable Field Sensor, Rectangle, 2000 mm Sensing, Infrared LED Sensing Beam
SKU106518
MFGR #Q60VR3AF2000
$/ea
Banner Engineering Adjustable Field Sensor, Proximity, Series: Q60, Rectangle, Adjustable Background Suppression Sensing Method, 2000 mm Sensing Range, Infrared LED Sensing Beam, 15 ms Response, SPDT Electromechanical Relay Output, 24 to 250 VAC/12 to 250 VDC, M8, LED Light Source, NEMA 6/IP67, -20 to 55 deg C Operating, Environmental Conditions: 95% at 50 deg C Maximum Relative Humidity
Banner Engineering Adjustable Field Sensor, Proximity, Series: Q60, Rectangle, Adjustable Background Suppression Sensing Method, 2000 mm Sensing Range, Infrared LED Sensing Beam, 15 ms Response, SPDT Electromechanical Relay Output, 24 to 250 VAC/12 to 250 VDC, M8, LED Light Source, NEMA 6/IP67, -20 to 55 deg C Operating, Environmental Conditions: 95% at 50 deg C Maximum Relative Humidity
Catalog Number Q60VR3AF2000 Connection Type M8 Country of Origin US Enclosure Type NEMA 6/IP67 Environmental Conditions 95% at 50 deg C Maximum Relative Humidity Gross Weight Per Pack 0.5200 lb Light Source LED Operating Temperature -20 to 55 °C Sensing Method Adjustable Background Suppression Series Q60 Standards CE Marked, UL Listed Type Proximity UNSPSC 39121528 UPC 11 66248863004 UPC 12 66248863004 Voltage Rating 24 to 250 VAC/12 to 250 VDC Stock Status NONSTOCK Brand Banner® Manufacturer Banner Engineering Corp. Output Type SPDT Electromechanical Relay Response Time 15 ms Sensing Beam Infrared LED Sensing Range 2000 mm Shape Rectangular The Q60 universal voltage sensor detects objects within a defined sensing range and operates on either ac or dc voltage for use in many locations, regardless of power supply; Powerful infrared sensing beam; Features 2-turn, logarithmic adjustment of sensing field cutoff point from 0.2 - 2 MR; Easy push-button or remote programming of output timing; Integral cable or quick disconnect options; Protected against reverse polarity and transient voltages Thermoplastic housing material M8 2 m length no quick disconnect cable connection Light/dark switching operation Remote teach is not possible Acrylic lens material Screw adjustment E/m relay input/output 150 ms delay at power-up 500 us repeatability Timing (hold/delay) can possible
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | Q60VR3AF2000 |
| Connection Type | M8 |
| Country of Origin | US |
| Enclosure Type | NEMA 6/IP67 |
| Environmental Conditions | 95% at 50 deg C Maximum Relative Humidity |
| Gross Weight Per Pack | 0.5200 lb |
| Light Source | LED |
| Operating Temperature | -20 to 55 °C |
| Sensing Method | Adjustable Background Suppression |
| Series | Q60 |
| Standards | CE Marked, UL Listed |
| Type | Proximity |
| UNSPSC | 39121528 |
| UPC 11 | 66248863004 |
| UPC 12 | 66248863004 |
| Voltage Rating | 24 to 250 VAC/12 to 250 VDC |
| Stock Status | NONSTOCK |
| Brand | Banner® |
| Manufacturer | Banner Engineering Corp. |
| Output Type | SPDT Electromechanical Relay |
| Response Time | 15 ms |
| Sensing Beam | Infrared LED |
| Sensing Range | 2000 mm |
| Shape | Rectangular |
| The Q60 universal voltage sensor detects objects within a defined sensing range and operates on either ac or dc voltage for use in many locations, regardless of power supply; Powerful infrared sensing beam; Features 2-turn, logarithmic adjustment of sensing field cutoff point from 0.2 - 2 MR; Easy push-button or remote programming of output timing; Integral cable or quick disconnect options; Protected against reverse polarity and transient voltages |
| Thermoplastic housing material |
| M8 2 m length no quick disconnect cable connection |
| Light/dark switching operation |
| Remote teach is not possible |
| Acrylic lens material |
| Screw adjustment |
| E/m relay input/output |
| 150 ms delay at power-up |
| 500 us repeatability |
| Timing (hold/delay) can possible |
