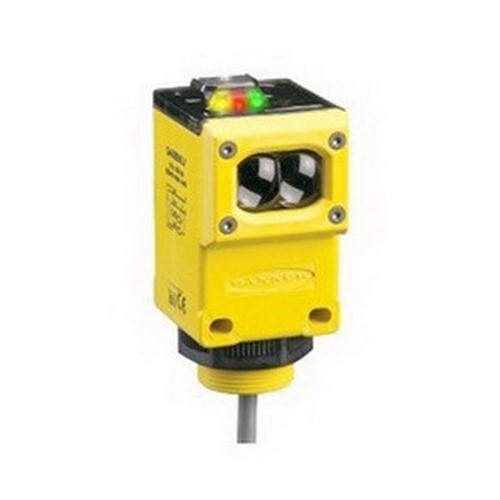

Banner Engineering Q45BB6LVQ Q45 Rugged Rectangle Sensor, Rectangle Shape, 9000 mm Sensing, Visible Red LED Sensing Beam
Banner Engineering Q45BB6LVQ Q45 Rugged Rectangle Sensor, Rectangle Shape, 9000 mm Sensing, Visible Red LED Sensing Beam
SKU134759
MFGR #Q45BB6LVQ
$/ea
Banner Engineering Rugged Rectangle Sensor, Series: Q45, Rectangle, Retro Reflective/Non-Polarized Sensing Method, 9000 mm Sensing Range, Visible Red LED Sensing Beam, 2 ms Response, Bi-Polar NPN/PNP Output, 10/30 VDC, Integral Quick-Disconnect 7/8 in (Mini), LED Light Source, NEMA 6P/IP67, -40 to 70 deg C Operating, Environmental Conditions: 90% at 50 deg C Maximum Operating Relative Humidity
Banner Engineering Rugged Rectangle Sensor, Series: Q45, Rectangle, Retro Reflective/Non-Polarized Sensing Method, 9000 mm Sensing Range, Visible Red LED Sensing Beam, 2 ms Response, Bi-Polar NPN/PNP Output, 10/30 VDC, Integral Quick-Disconnect 7/8 in (Mini), LED Light Source, NEMA 6P/IP67, -40 to 70 deg C Operating, Environmental Conditions: 90% at 50 deg C Maximum Operating Relative Humidity
Catalog Number Q45BB6LVQ Connection Type Integral Quick-Disconnect 7/8 in (Mini) Country of Origin US Enclosure Type NEMA 6P/IP67 Environmental Conditions 90% at 50 deg C Maximum Operating Relative Humidity Gross Weight Per Pack 0.5550 lb Light Source LED Operating Temperature -40 to 70 °C Sensing Method Retro Reflective/Non-Polarized Series Q45 Standards CSA Certified, CE Masrked UNSPSC 39121528 UPC 11 66248836727 UPC 12 66248836727 Voltage Rating 10/30 VDC Stock Status NONSTOCK Brand Banner® Manufacturer Banner Engineering Corp. Output Type Bi-Polar NPN/PNP Response Time 2 ms Sensing Beam Visible Red LED Sensing Range 9000 mm Shape Rectangular Advanced one-piece photoelectric sensors with outstanding optical performance and extremely rugged design; The visible red sensing beam of these sensors makes them very easy to align; Highly visible power, signal (AID System) and output indicator LEDs; Versatile plug-in modules available for output timing logic and/or signal strength display; Designed to withstand 1200 PSI washdown; Potentiometer adjustments; Supply protection circuitry protected against reverse polarity and transient voltages; Output protection circuitry protected against false pulse on power-up and continuous overload or short circuit of outputs Thermoplastic housing material Light/dark switching Intrinsically safe 100 ms delay at power-up 500 us repeatability Four number of pins Acrylic lens Potentiometer adjustment 30 mm Dia barrel
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | Q45BB6LVQ |
| Connection Type | Integral Quick-Disconnect 7/8 in (Mini) |
| Country of Origin | US |
| Enclosure Type | NEMA 6P/IP67 |
| Environmental Conditions | 90% at 50 deg C Maximum Operating Relative Humidity |
| Gross Weight Per Pack | 0.5550 lb |
| Light Source | LED |
| Operating Temperature | -40 to 70 °C |
| Sensing Method | Retro Reflective/Non-Polarized |
| Series | Q45 |
| Standards | CSA Certified, CE Masrked |
| UNSPSC | 39121528 |
| UPC 11 | 66248836727 |
| UPC 12 | 66248836727 |
| Voltage Rating | 10/30 VDC |
| Stock Status | NONSTOCK |
| Brand | Banner® |
| Manufacturer | Banner Engineering Corp. |
| Output Type | Bi-Polar NPN/PNP |
| Response Time | 2 ms |
| Sensing Beam | Visible Red LED |
| Sensing Range | 9000 mm |
| Shape | Rectangular |
| Advanced one-piece photoelectric sensors with outstanding optical performance and extremely rugged design; The visible red sensing beam of these sensors makes them very easy to align; Highly visible power, signal (AID System) and output indicator LEDs; Versatile plug-in modules available for output timing logic and/or signal strength display; Designed to withstand 1200 PSI washdown; Potentiometer adjustments; Supply protection circuitry protected against reverse polarity and transient voltages; Output protection circuitry protected against false pulse on power-up and continuous overload or short circuit of outputs |
| Thermoplastic housing material |
| Light/dark switching |
| Intrinsically safe |
| 100 ms delay at power-up |
| 500 us repeatability |
| Four number of pins |
| Acrylic lens |
| Potentiometer adjustment |
| 30 mm Dia barrel |
