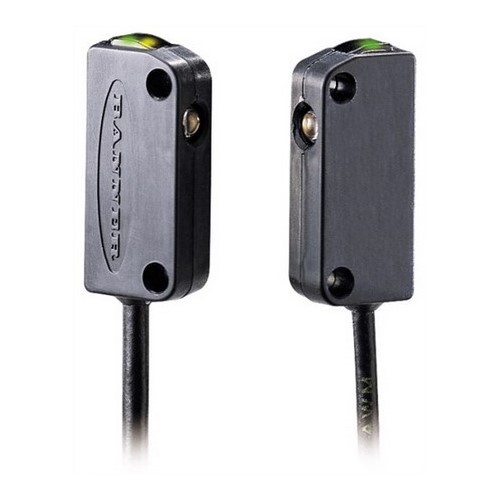

Banner Engineering Q14RP6RQ Q14 Receiver, 1800 mm Sensing, Infrared Sensing Beam, 8 ms On/4 ms Off Response Time, PNP Output
Banner Engineering Q14RP6RQ Q14 Receiver, 1800 mm Sensing, Infrared Sensing Beam, 8 ms On/4 ms Off Response Time, PNP Output
SKU201198
MFGR #Q14RP6RQ
Your Cost: $84.62/ea
List: Banner Engineering Receiver, Series: Q14, Opposed Sensing Method, 1800 mm Sensing Range, Infrared Sensing Beam, 8 ms On/4 ms Off Response, PNP Output, 10 to 30 VDC, Pigtail Quick Disconnect, LED Light Source, NEMA 4/IP54, -20 to 55 deg C Operating, Environmental Conditions: 90% at 50 deg C Relative Humidity
Banner Engineering Receiver, Series: Q14, Opposed Sensing Method, 1800 mm Sensing Range, Infrared Sensing Beam, 8 ms On/4 ms Off Response, PNP Output, 10 to 30 VDC, Pigtail Quick Disconnect, LED Light Source, NEMA 4/IP54, -20 to 55 deg C Operating, Environmental Conditions: 90% at 50 deg C Relative Humidity
Catalog Number Q14RP6RQ Connection Type Pigtail Quick-Disconnect Country of Origin MX Enclosure Type NEMA 4/IP54 Environmental Conditions 90% at 50 deg C Relative Humidity Gross Weight Per Pack 0.0930 lb Light Source LED Operating Temperature -20 to 55 °C Output Type PNP Response Time 8 ms On/4 ms Off Sensing Beam Infrared Sensing Method Opposed Sensing Range 1800 mm Series Q14 Standards CE Approval UNSPSC 39121528 UPC 11 66248845735 UPC 12 66248845735 Voltage Rating 10 to 30 VDC Stock Status NONSTOCK Brand BANNER® Manufacturer Banner Engineering Corp. 0 Thermoplastic primary housing material 3-pin M8 pico-style quick disconnect cable connection Dark operation 880 nm sensing beam wavelength 1000 us repeatability Glass lens Opposed mode receiver Solid state DC switch input/output One open collector PNP transistor output
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | Q14RP6RQ |
| Connection Type | Pigtail Quick-Disconnect |
| Country of Origin | MX |
| Enclosure Type | NEMA 4/IP54 |
| Environmental Conditions | 90% at 50 deg C Relative Humidity |
| Gross Weight Per Pack | 0.0930 lb |
| Light Source | LED |
| Operating Temperature | -20 to 55 °C |
| Output Type | PNP |
| Response Time | 8 ms On/4 ms Off |
| Sensing Beam | Infrared |
| Sensing Method | Opposed |
| Sensing Range | 1800 mm |
| Series | Q14 |
| Standards | CE Approval |
| UNSPSC | 39121528 |
| UPC 11 | 66248845735 |
| UPC 12 | 66248845735 |
| Voltage Rating | 10 to 30 VDC |
| Stock Status | NONSTOCK |
| Brand | BANNER® |
| Manufacturer | Banner Engineering Corp. |
| 0 |
| Thermoplastic primary housing material |
| 3-pin M8 pico-style quick disconnect cable connection |
| Dark operation |
| 880 nm sensing beam wavelength |
| 1000 us repeatability |
| Glass lens |
| Opposed mode receiver |
| Solid state DC switch input/output |
| One open collector PNP transistor output |
