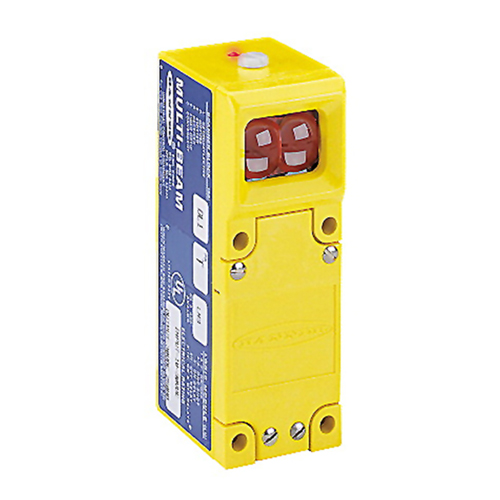

Banner Engineering Multi-Beam® SBDL1 Medium Range Scanner Block, 24 in Sensor, 1 ms Response Time
Banner Engineering Multi-Beam® SBDL1 Medium Range Scanner Block, 24 in Sensor, 1 ms Response Time
SKU13357
MFGR #SBDL1
Your Cost: $285.23/ea
List: Banner Engineering Multi-Beam® Scanner Block, Medium Range, 24 in Sensing Range, 1 ms Response
Banner Engineering Multi-Beam® Scanner Block, Medium Range, 24 in Sensing Range, 1 ms Response
Catalog Number SBDL1 Country of Origin US Gross Weight Per Pack 1 lb Standards CE Marked, CSA Approval, cULus Listed Type Medium Range UNSPSC 39121528 UPC 11 66248817626 UPC 12 66248817626 Stock Status NONSTOCK Brand BANNER® Manufacturer Banner Engineering Corp. Response Time 1 ms Sensing Range 24 in Scanner blocks for opposed, retro, diffuse, convergent, and fiber optic sensing modes; Most scanner blocks include Banner's exclusive, patented AID (Alignment indicating device) system, which lights a top-mounted indicator LED whenever the sensor sees its own modulated light source, and pulses the LED at a rate proportional to the strength of the received light signal; SBDL1 - longer range than SBD1, but with less response to objects passing the sensor at close range, and greater sensitivity to background objects; Models SBD1 and SBDL1 are identical except for their upper cover (lens) assembly (SBD1 uses UC-D; SBDL1 uses UC-L); 3 and 4 wire system; Interconnecting pins Medium range diffuse proximity Longer range than SBD1, but with less response to objects passing the sensor at close range, and greater sensitivity to background objects 940 nm sensing beam wavelength 0.3 ms repeatability
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | SBDL1 |
| Country of Origin | US |
| Gross Weight Per Pack | 1 lb |
| Standards | CE Marked, CSA Approval, cULus Listed |
| Type | Medium Range |
| UNSPSC | 39121528 |
| UPC 11 | 66248817626 |
| UPC 12 | 66248817626 |
| Stock Status | NONSTOCK |
| Brand | BANNER® |
| Manufacturer | Banner Engineering Corp. |
| Response Time | 1 ms |
| Sensing Range | 24 in |
| Scanner blocks for opposed, retro, diffuse, convergent, and fiber optic sensing modes; Most scanner blocks include Banner's exclusive, patented AID (Alignment indicating device) system, which lights a top-mounted indicator LED whenever the sensor sees its own modulated light source, and pulses the LED at a rate proportional to the strength of the received light signal; SBDL1 - longer range than SBD1, but with less response to objects passing the sensor at close range, and greater sensitivity to background objects; Models SBD1 and SBDL1 are identical except for their upper cover (lens) assembly (SBD1 uses UC-D; SBDL1 uses UC-L); 3 and 4 wire system; Interconnecting pins |
| Medium range diffuse proximity |
| Longer range than SBD1, but with less response to objects passing the sensor at close range, and greater sensitivity to background objects |
| 940 nm sensing beam wavelength |
| 0.3 ms repeatability |
