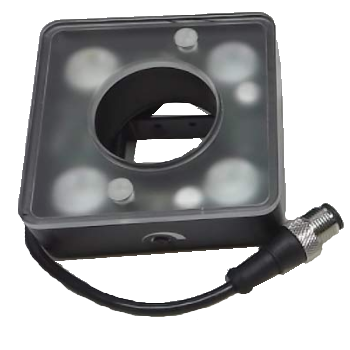

Banner Engineering LEDRR70X70-78587 Ring Light, Visible Red, 627 nm, 24 VDC
SKU569940
MFGR #LEDRR70X70-78587
Your Cost: $441.16/ea
List: Banner Engineering Ring Light, Visible Red Light, 627 nm Light Wavelength, 24 VDC, Integral Pigtail
Banner Engineering Ring Light, Visible Red Light, 627 nm Light Wavelength, 24 VDC, Integral Pigtail
Catalog Number LEDRR70X70-78587 Connection Type Integral Pigtail Gross Weight Per Pack 1 lb Standards CE Marked UPC 11 66248878587 UPC 12 66248878587 Stock Status NONSTOCK Brand BANNER® Manufacturer Banner Engineering Corp. Light Color Visible Red Light Wavelength 627 nm Voltage Rating 24 VDC Aluminum black anodized housing Acrylic clear window with frosted diffusing surface on inside Four visible red high-intensity LED Optically isolated active low strobe 350 mA max current draw at full intensity 200 mm integral pigtail with 5-pin male euro-style connector 50000 hr(LED ON time) when operated within specifications, output will decrease less than 30% after 50000 hr 0 to 50 deg C operating 90% non-condensing maximum relative humidity High-Intensity LED ring light for use with Fanuc Robotics
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | LEDRR70X70-78587 |
| Connection Type | Integral Pigtail |
| Gross Weight Per Pack | 1 lb |
| Standards | CE Marked |
| UPC 11 | 66248878587 |
| UPC 12 | 66248878587 |
| Stock Status | NONSTOCK |
| Brand | BANNER® |
| Manufacturer | Banner Engineering Corp. |
| Light Color | Visible Red |
| Light Wavelength | 627 nm |
| Voltage Rating | 24 VDC |
| Aluminum black anodized housing |
| Acrylic clear window with frosted diffusing surface on inside |
| Four visible red high-intensity LED |
| Optically isolated active low strobe |
| 350 mA max current draw at full intensity |
| 200 mm integral pigtail with 5-pin male euro-style connector |
| 50000 hr(LED ON time) when operated within specifications, output will decrease less than 30% after 50000 hr |
| 0 to 50 deg C operating |
| 90% non-condensing maximum relative humidity |
| High-Intensity LED ring light for use with Fanuc Robotics |
