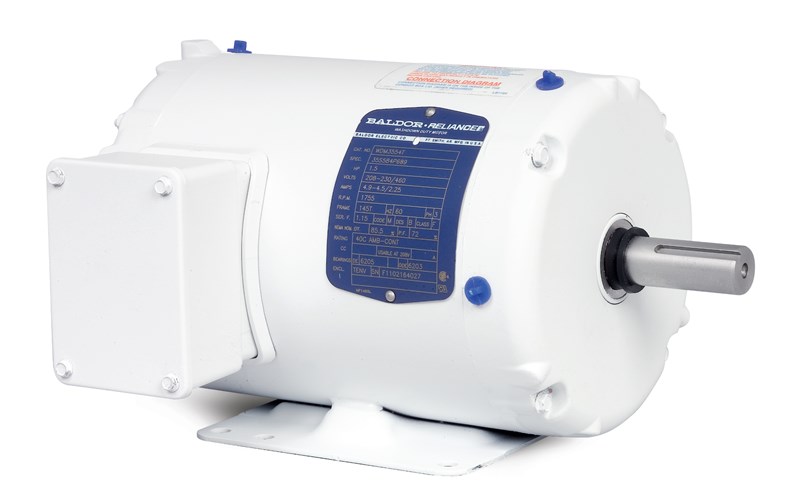

Baldor-Reliance WDM3546T AC Motor, 208/230/460 VAC, 1.5/3/3.2 A, 143 Frame, 1 hp, 1740 rpm
Custom_Product_Images_Illustration
Baldor-Reliance WDM3546T AC Motor, 208/230/460 VAC, 1.5/3/3.2 A, 143 Frame, 1 hp, 1740 rpm
SKUPDW~1483333
MFGR #WDM3546T
Your Cost: $900.15/ea
Baldor-Reliance AC Motor, 208/230/460 VAC, 1.5/3/3.2 A, 60 Hz, 1 hp, 3, 1740 rpm, 1 Speed, TENV, 143 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.15, Sealed Bearing, 13.7 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 11.12 in L x 10.26 in W x 6.81 in H
Baldor-Reliance AC Motor, 208/230/460 VAC, 1.5/3/3.2 A, 60 Hz, 1 hp, 3, 1740 rpm, 1 Speed, TENV, 143 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.15, Sealed Bearing, 13.7 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 11.12 in L x 10.26 in W x 6.81 in H
Application Wash Down Base Rigid Catalog Number WDM3546T Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 34.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard, NEMA Type AC Motors UNSPSC 26101112 UPC 11 78156810844 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure TENV Frame 143 Full Load Current 1.5/3/3.2 A Horsepower 1000 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,740 rpm Voltage Rating 208/230/460 V Wash Down 1HP,1740RPM,3PH,60HZ,143T,3518M,TENV,F1 300 series stainless steel hardware Moisture sealant on bolt heads, between frame and endplates Neoprene gaskets Double sealed bearings Lip and V-Ring seal on drive end Electrostically applied epoxy finish over autophoretic primer Suitable for use where motor is regularly exposed to high pressure washdown 74 power factor Rigid base
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wash Down |
| Base | Rigid |
| Catalog Number | WDM3546T |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 34.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard, NEMA |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156810844 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | TENV |
| Frame | 143 |
| Full Load Current | 1.5/3/3.2 A |
| Horsepower | 1000 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,740 rpm |
| Voltage Rating | 208/230/460 V |
| Wash Down |
| 1HP,1740RPM,3PH,60HZ,143T,3518M,TENV,F1 |
| 300 series stainless steel hardware |
| Moisture sealant on bolt heads, between frame and endplates |
| Neoprene gaskets |
| Double sealed bearings |
| Lip and V-Ring seal on drive end |
| Electrostically applied epoxy finish over autophoretic primer |
| Suitable for use where motor is regularly exposed to high pressure washdown |
| 74 power factor |
| Rigid base |
