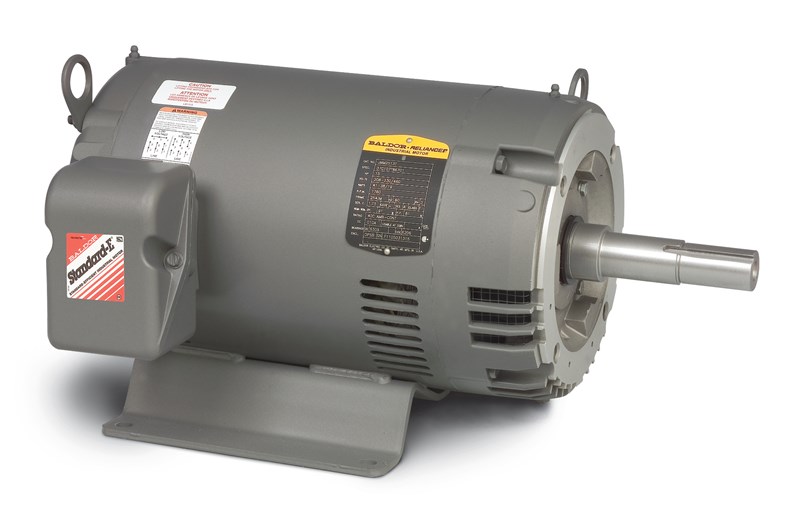

Baldor-Reliance WCM3219T 7.5HP,3450RPM,3PH,6
SKUPDW~1270745
MFGR #WCM3219T
$/ea
Electric Motors, Pump, Three Phase, Close Coupled, Open Drip Proof, Horsepower: 7 1/2, RPM: 3450, Frame Size: 184TCZ, Voltage Rating: 208-230/460 VAC, Rotation: Counter Clockwise, Bearings: Ball, Service Factor: 1.15, Enclosure Type: Open Dripproof, Therm
Electric Motors, Pump, Three Phase, Close Coupled, Open Drip Proof, Horsepower: 7 1/2, RPM: 3450, Frame Size: 184TCZ, Voltage Rating: 208-230/460 VAC, Rotation: Counter Clockwise, Bearings: Ball, Service Factor: 1.15, Enclosure Type: Open Dripproof, Therm
Application General purpose Base Rigid Catalog Number WCM3219T Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 83.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Type AC Motors UNSPSC 26101112 UPC 11 78156811398 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure OPSB Frame 184 Full Load Current 8.7/17.4/18.8 A Horsepower 7.5 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 3,450 rpm Voltage Rating 208/230/460 V General Purpose 7.5HP,3450RPM,3PH,60HZ,184TCZ,3627M,OPSB
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose |
| Base | Rigid |
| Catalog Number | WCM3219T |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 83.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156811398 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | OPSB |
| Frame | 184 |
| Full Load Current | 8.7/17.4/18.8 A |
| Horsepower | 7.5 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 3,450 rpm |
| Voltage Rating | 208/230/460 V |
| General Purpose |
| 7.5HP,3450RPM,3PH,60HZ,184TCZ,3627M,OPSB |
