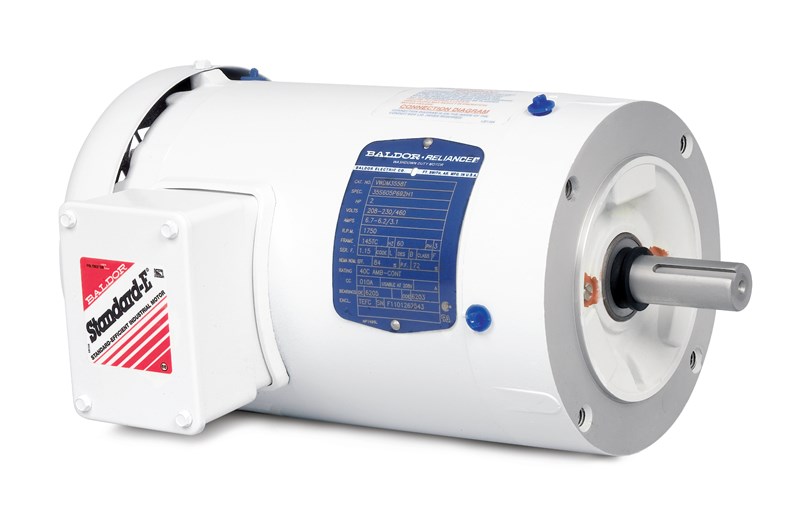

Baldor-Reliance VWDM3558 AC Motor, 208/230/460 VAC, 3/6/6.5 A, 56 Frame, 2 hp, 1735 rpm
Custom_Product_Images_Illustration
Baldor-Reliance VWDM3558 AC Motor, 208/230/460 VAC, 3/6/6.5 A, 56 Frame, 2 hp, 1735 rpm
SKUPDW~1482926
MFGR #VWDM3558
$/ea
Baldor-Reliance AC Motor, 208/230/460 VAC, 3/6/6.5 A, 60 Hz, 2 hp, 3, 1735 rpm, 1 Speed, TEFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.15, Sealed Bearing, 27.3 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 13.22 in L x 10.24 in W
Baldor-Reliance AC Motor, 208/230/460 VAC, 3/6/6.5 A, 60 Hz, 2 hp, 3, 1735 rpm, 1 Speed, TEFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.15, Sealed Bearing, 27.3 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 13.22 in L x 10.24 in W
Application Wash Down Base No mounting Catalog Number VWDM3558 Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 40.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard, NEMA Type AC Motors UNSPSC 26101112 UPC 11 78156810882 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure TEFC Frame 56 Full Load Current 3/6/6.5 A Horsepower 2 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,735 rpm Voltage Rating 208/230/460 V Wash Down 2HP,1735RPM,3PH,60HZ,56C,3523M,TEFC,F1,N 300 series stainless steel hardware Moisture sealant on bolt heads, between frame and endplates Neoprene gaskets Double sealed bearings Lip and V-Ring seal on drive end Electrostically applied epoxy finish over autophoretic primer Suitable for use where motor is regularly exposed to high pressure washdown 76 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wash Down |
| Base | No mounting |
| Catalog Number | VWDM3558 |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 40.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard, NEMA |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156810882 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | TEFC |
| Frame | 56 |
| Full Load Current | 3/6/6.5 A |
| Horsepower | 2 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,735 rpm |
| Voltage Rating | 208/230/460 V |
| Wash Down |
| 2HP,1735RPM,3PH,60HZ,56C,3523M,TEFC,F1,N |
| 300 series stainless steel hardware |
| Moisture sealant on bolt heads, between frame and endplates |
| Neoprene gaskets |
| Double sealed bearings |
| Lip and V-Ring seal on drive end |
| Electrostically applied epoxy finish over autophoretic primer |
| Suitable for use where motor is regularly exposed to high pressure washdown |
| 76 power factor |
