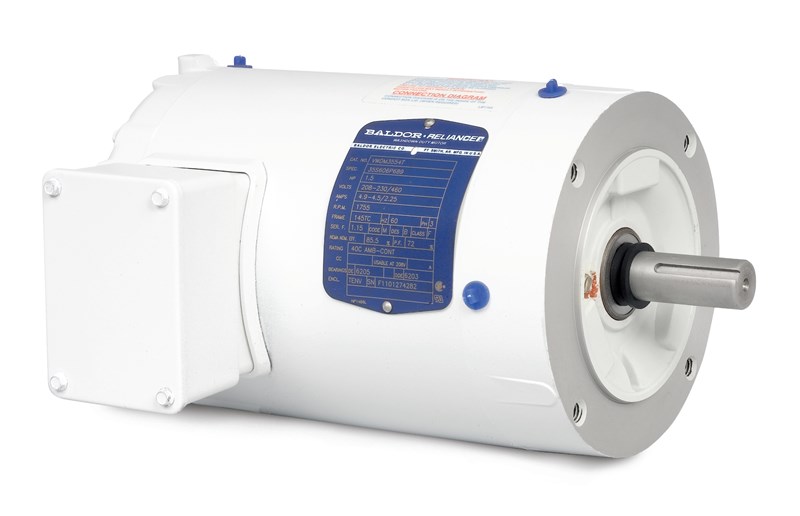

Baldor-Reliance VWDM3554T AC Motor, 208/230/460 VAC, 2.3/4.5/4.9 A, 145 Frame, 1.5 hp, 1755 rpm
Custom_Product_Images_Illustration
Baldor-Reliance VWDM3554T AC Motor, 208/230/460 VAC, 2.3/4.5/4.9 A, 145 Frame, 1.5 hp, 1755 rpm
SKUPDW~1482925
MFGR #VWDM3554T
$/ea
Baldor-Reliance AC Motor, 208/230/460 VAC, 2.3/4.5/4.9 A, 60 Hz, 1.5 hp, 3, 1755 rpm, 1 Speed, TENV, 145 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.15, Sealed Bearing, 20.3 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 12.13 in L x 10-1/4 in W
Baldor-Reliance AC Motor, 208/230/460 VAC, 2.3/4.5/4.9 A, 60 Hz, 1.5 hp, 3, 1755 rpm, 1 Speed, TENV, 145 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.15, Sealed Bearing, 20.3 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 12.13 in L x 10-1/4 in W
Application Wash Down Base No mounting Catalog Number VWDM3554T Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 43.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard, NEMA Type AC Motors UNSPSC 26101112 UPC 11 78156810881 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure TENV Frame 145 Full Load Current 2.3/4.5/4.9 A Horsepower 1.5 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,755 rpm Voltage Rating 208/230/460 V Wash Down 1.5HP,1755RPM,3PH,60HZ,145TC,3526M,TENV 300 series stainless steel hardware Moisture sealant on bolt heads, between frame and endplates Neoprene gaskets Double sealed bearings Lip and V-Ring seal on drive end Electrostically applied epoxy finish over autophoretic primer Suitable for use where motor is regularly exposed to high pressure washdown 72 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wash Down |
| Base | No mounting |
| Catalog Number | VWDM3554T |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 43.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard, NEMA |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156810881 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | TENV |
| Frame | 145 |
| Full Load Current | 2.3/4.5/4.9 A |
| Horsepower | 1.5 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,755 rpm |
| Voltage Rating | 208/230/460 V |
| Wash Down |
| 1.5HP,1755RPM,3PH,60HZ,145TC,3526M,TENV |
| 300 series stainless steel hardware |
| Moisture sealant on bolt heads, between frame and endplates |
| Neoprene gaskets |
| Double sealed bearings |
| Lip and V-Ring seal on drive end |
| Electrostically applied epoxy finish over autophoretic primer |
| Suitable for use where motor is regularly exposed to high pressure washdown |
| 72 power factor |
