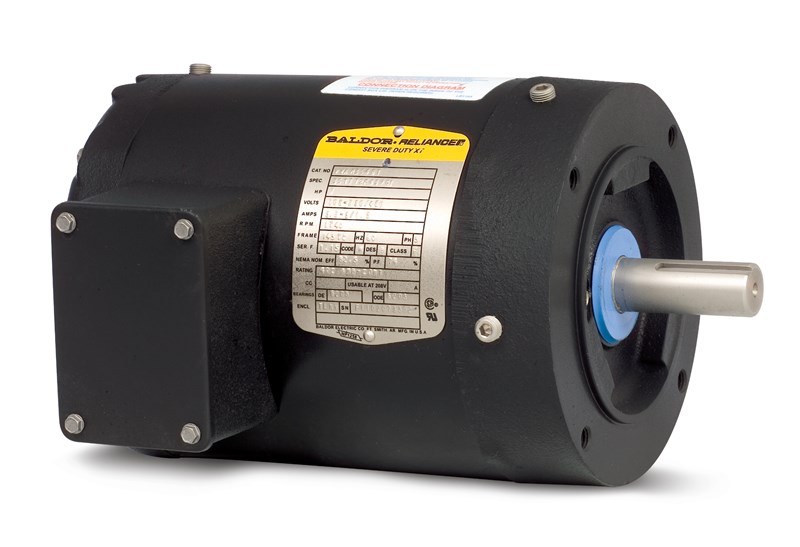

Baldor-Reliance VWAM3538 AC Motor, 208/230/460 VAC, 0.8/1.6/1.8 A, 56 Frame, 0.5 hp, 1740 rpm
Custom_Product_Images_Illustration
Baldor-Reliance VWAM3538 AC Motor, 208/230/460 VAC, 0.8/1.6/1.8 A, 56 Frame, 0.5 hp, 1740 rpm
SKUPDW~1760462
MFGR #VWAM3538
Your Cost: $914.83/ea
Baldor-Reliance AC Motor, 208/230/460 VAC, 0.8/1.6/1.8 A, 60 Hz, 0.5 hp, 3, 1740 rpm, 1 Speed, TENV, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.25, 6.71 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 14.3 in L x 9.88 in W
Baldor-Reliance AC Motor, 208/230/460 VAC, 0.8/1.6/1.8 A, 60 Hz, 0.5 hp, 3, 1740 rpm, 1 Speed, TENV, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.25, 6.71 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 14.3 in L x 9.88 in W
Application Wash Down C.I. Autophoretic Base No mounting Catalog Number VWAM3538 Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 35.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Type AC Motors UNSPSC 26101112 UPC 11 78156838394 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure TENV Frame 56 Full Load Current 0.8/1.6/1.8 A Horsepower 0.5 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,740 rpm Voltage Rating 208/230/460 V Wash Down C.I. Autophoretic .5HP,1740RPM,3PH,60HZ,56C,3512M,TENV,F1 69 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wash Down C.I. Autophoretic |
| Base | No mounting |
| Catalog Number | VWAM3538 |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 35.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156838394 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | TENV |
| Frame | 56 |
| Full Load Current | 0.8/1.6/1.8 A |
| Horsepower | 0.5 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,740 rpm |
| Voltage Rating | 208/230/460 V |
| Wash Down C.I. Autophoretic |
| .5HP,1740RPM,3PH,60HZ,56C,3512M,TENV,F1 |
| 69 power factor |
