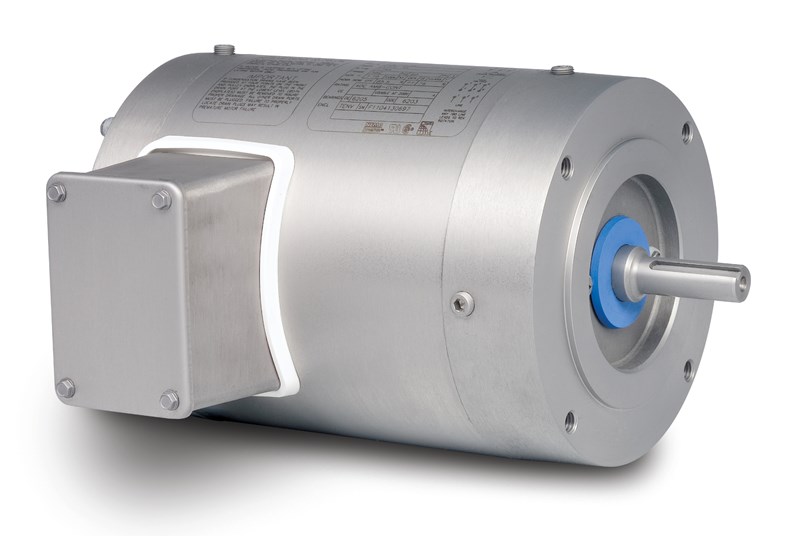

Baldor-Reliance VSSWDM3542 AC Motor, 208/230/460 VAC, 1.1/2.2/2.4 A, 56 Frame, 0.75 hp, 1740 rpm
Custom_Product_Images_Illustration
Baldor-Reliance VSSWDM3542 AC Motor, 208/230/460 VAC, 1.1/2.2/2.4 A, 56 Frame, 0.75 hp, 1740 rpm
SKUPDW~1482898
MFGR #VSSWDM3542
Your Cost: $3,279.00/ea
Baldor-Reliance AC Motor, 208/230/460 VAC, 1.1/2.2/2.4 A, 60 Hz, 0.75 hp, 3, 1740 rpm, 1 Speed, TENV, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 10.4 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Stainless Steel, 11.09 in L
Baldor-Reliance AC Motor, 208/230/460 VAC, 1.1/2.2/2.4 A, 60 Hz, 0.75 hp, 3, 1740 rpm, 1 Speed, TENV, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 10.4 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Stainless Steel, 11.09 in L
Application Wash Down All Stainless Steel Base No mounting Catalog Number VSSWDM3542 Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 42.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard, NEMA Type AC Motors UNSPSC 26101112 UPC 11 78156855552 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure TENV Frame 56 Full Load Current 1.1/2.2/2.4 A Horsepower 0.75 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,740 rpm Voltage Rating 208/230/460 V Wash Down All Stainless Steel .75HP,1740RPM,3PH,60HZ,56C,3519M,TENV,F1 Moisture resistant 200 deg C ISR® (Inverter Spike resistant) magnet wire Four condensate drains in each endplate Endplate rabbets sealed and conduit box gasketed Lip seals Especially effective in highly corrosive environments where paint or other finishes do not hold up 78 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wash Down All Stainless Steel |
| Base | No mounting |
| Catalog Number | VSSWDM3542 |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 42.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard, NEMA |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156855552 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | TENV |
| Frame | 56 |
| Full Load Current | 1.1/2.2/2.4 A |
| Horsepower | 0.75 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,740 rpm |
| Voltage Rating | 208/230/460 V |
| Wash Down All Stainless Steel |
| .75HP,1740RPM,3PH,60HZ,56C,3519M,TENV,F1 |
| Moisture resistant 200 deg C ISR® (Inverter Spike resistant) magnet wire |
| Four condensate drains in each endplate |
| Endplate rabbets sealed and conduit box gasketed |
| Lip seals |
| Especially effective in highly corrosive environments where paint or other finishes do not hold up |
| 78 power factor |
