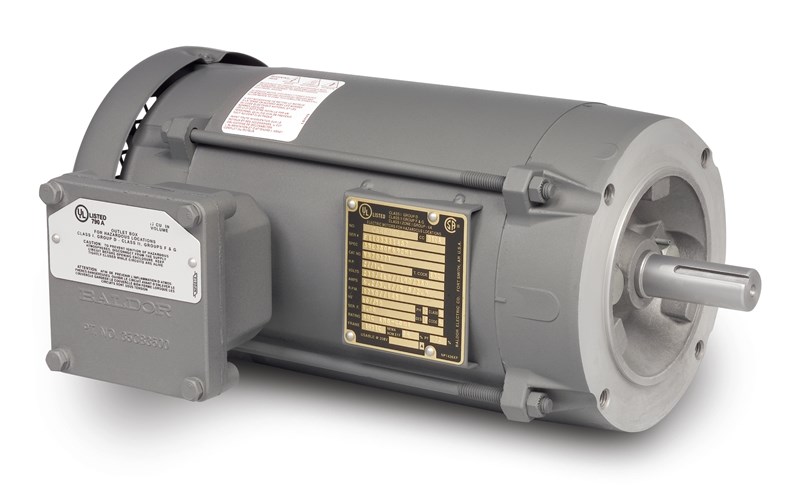

Baldor-Reliance VM7170T AC Motor, 190/230/380/460 VAC, 12/13/24/26 A, 215 Frame, 7.5/10 hp, 1460/1760 rpm
Custom_Product_Images_Illustration
Baldor-Reliance VM7170T AC Motor, 190/230/380/460 VAC, 12/13/24/26 A, 215 Frame, 7.5/10 hp, 1460/1760 rpm
SKUPDW~1271547
MFGR #VM7170T
$/ea
Baldor-Reliance AC Motor, 190/230/380/460 VAC, 12/13/24/26 A, 50/60 Hz, 7.5/10 hp, 3, 1460/1760 rpm, 1 Speed, XPFC, 215 Frame, 1-3/8 in Dia Shaft, Reversible, Service Factor: 1, 113 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 20.65 in L x 15.16 in W
Baldor-Reliance AC Motor, 190/230/380/460 VAC, 12/13/24/26 A, 50/60 Hz, 7.5/10 hp, 3, 1460/1760 rpm, 1 Speed, XPFC, 215 Frame, 1-3/8 in Dia Shaft, Reversible, Service Factor: 1, 113 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 20.65 in L x 15.16 in W
Application Hazardous Location Motor Base No mounting Catalog Number VM7170T Country of Origin US Duty Continuous Frequency Rating 50/60 Hz Gross Weight Per Pack 173.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards UL Listed Type AC Motors UNSPSC 26101112 UPC 11 78156811213 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure XPFC Frame 215 Full Load Current 12/13/24/26 A Horsepower 7.5/10 hp Mounting F1 Phase 3 Power Factor 0.00 Speed Rating 1,760 rpm; 1,460 rpm Voltage Rating 190/230/380/460 V Hazardous Location Motor 10//7.5HP,1760//1460RPM,3PH,60//50HZ,215 Corrosion resistant epoxy finish Positively locked drive end bearing 8 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Hazardous Location Motor |
| Base | No mounting |
| Catalog Number | VM7170T |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 173.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | UL Listed |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156811213 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | XPFC |
| Frame | 215 |
| Full Load Current | 12/13/24/26 A |
| Horsepower | 7.5/10 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 0.00 |
| Speed Rating | 1,760 rpm; 1,460 rpm |
| Voltage Rating | 190/230/380/460 V |
| Hazardous Location Motor |
| 10//7.5HP,1760//1460RPM,3PH,60//50HZ,215 |
| Corrosion resistant epoxy finish |
| Positively locked drive end bearing |
| 8 power factor |
