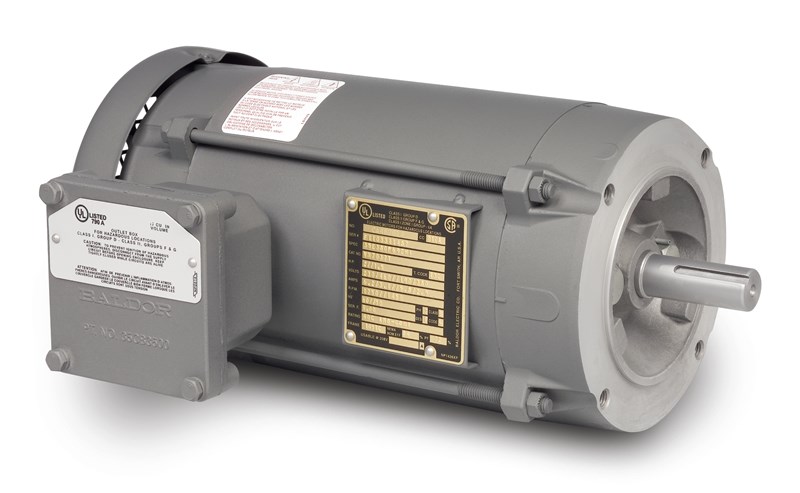

Baldor-Reliance VM7002A AC Motor, 208/230/460 VAC, 0.8/1.6/1.8 A, 56 Frame, 1/3 hp, 1725 rpm
Custom_Product_Images_Illustration
Baldor-Reliance VM7002A AC Motor, 208/230/460 VAC, 0.8/1.6/1.8 A, 56 Frame, 1/3 hp, 1725 rpm
SKUPDW~1271499
MFGR #VM7002A
Your Cost: $1,151.25/ea
Baldor-Reliance AC Motor, 208/230/460 VAC, 0.8/1.6/1.8 A, 60 Hz, 1/3 hp, 3, 1725 rpm, 1 Speed, XPFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1, Ball Bearing, 4.7 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 13.22 in L
Baldor-Reliance AC Motor, 208/230/460 VAC, 0.8/1.6/1.8 A, 60 Hz, 1/3 hp, 3, 1725 rpm, 1 Speed, XPFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1, Ball Bearing, 4.7 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 13.22 in L
Application Hazardous Location Motor Base No mounting Catalog Number VM7002A Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 27.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UL Listed, UR Standard, NEMA Type AC Motors UNSPSC 26101112 UPC 11 78156811187 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure XPFC Frame 56 Full Load Current 0.8/1.6/1.8 A Horsepower 330 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,725 rpm Voltage Rating 208/230/460 V Hazardous Location Motor .33HP,1725RPM,3PH,60HZ,56C,X3413M,XPFC Corrosion resistant epoxy finish Positively locked drive end bearing 57 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Hazardous Location Motor |
| Base | No mounting |
| Catalog Number | VM7002A |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 27.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UL Listed, UR Standard, NEMA |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156811187 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | XPFC |
| Frame | 56 |
| Full Load Current | 0.8/1.6/1.8 A |
| Horsepower | 330 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,725 rpm |
| Voltage Rating | 208/230/460 V |
| Hazardous Location Motor |
| .33HP,1725RPM,3PH,60HZ,56C,X3413M,XPFC |
| Corrosion resistant epoxy finish |
| Positively locked drive end bearing |
| 57 power factor |
