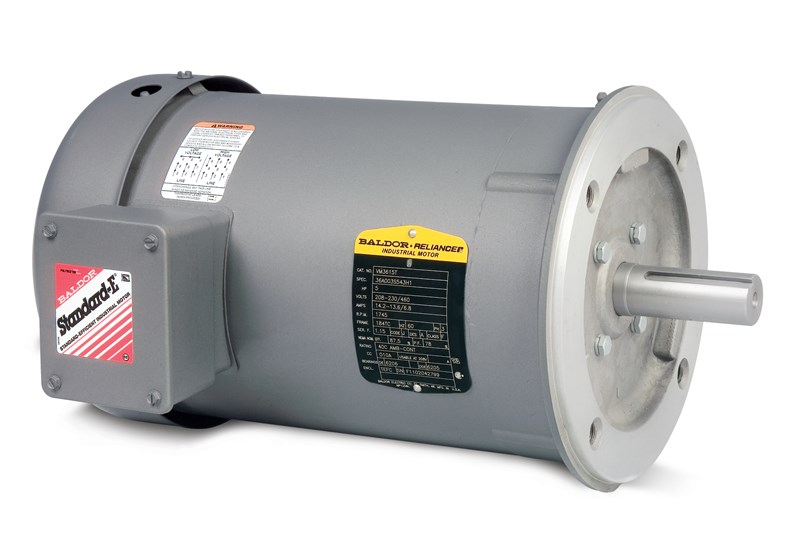

Baldor-Reliance VM3558T AC Motor, 208/230/460 VAC, 3.1/6.2/6.7 A, 145 Frame, 2 hp, 1750 rpm
Custom_Product_Images_Illustration
Baldor-Reliance VM3558T AC Motor, 208/230/460 VAC, 3.1/6.2/6.7 A, 145 Frame, 2 hp, 1750 rpm
SKU1403985
MFGR #VM3558T
Your Cost: $364.93/ea
List: Baldor-Reliance AC Motor, 208/230/460 VAC, 3.1/6.2/6.7 A, 60 Hz, 2 hp, 3, 1750 rpm, 1 Speed, TEFC, 145 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 23.5 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 13.29 in L x 10.26 in W
Baldor-Reliance AC Motor, 208/230/460 VAC, 3.1/6.2/6.7 A, 60 Hz, 2 hp, 3, 1750 rpm, 1 Speed, TEFC, 145 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 23.5 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 13.29 in L x 10.26 in W
Application General purpose Base No mounting Catalog Number VM3558T Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 41.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard, NEMA Type AC Motors UNSPSC 26101112 UPC 11 78156810980 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure TEFC Frame 145 Full Load Current 3.1/6.2/6.7 A Horsepower 2 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,750 rpm Voltage Rating 208/230/460 V General Purpose 2HP,1750RPM,3PH,60HZ,145TC,3524M,TEFC,F1 Locked drive end bearing 72 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose |
| Base | No mounting |
| Catalog Number | VM3558T |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 41.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard, NEMA |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156810980 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | TEFC |
| Frame | 145 |
| Full Load Current | 3.1/6.2/6.7 A |
| Horsepower | 2 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,750 rpm |
| Voltage Rating | 208/230/460 V |
| General Purpose |
| 2HP,1750RPM,3PH,60HZ,145TC,3524M,TEFC,F1 |
| Locked drive end bearing |
| 72 power factor |
