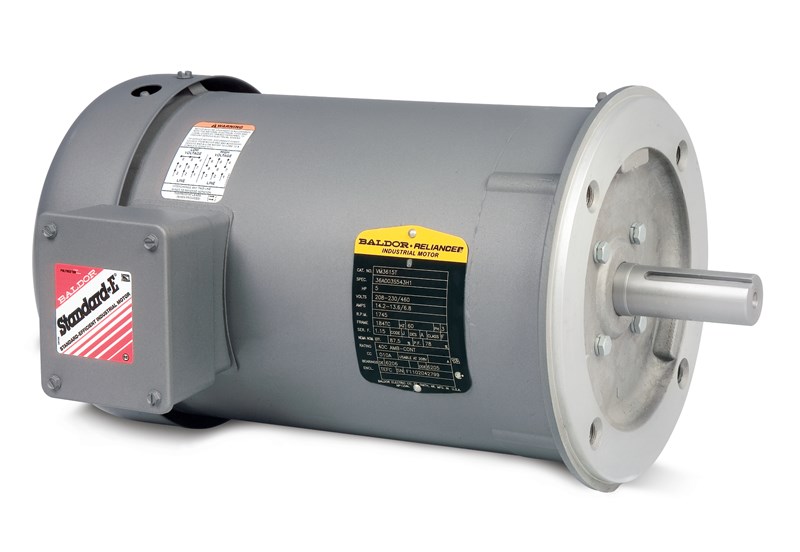

Baldor-Reliance VM3542 AC Motor, 208/230/460 VAC, 1.5/3/3.2 A, 56 Frame, 0.75 hp, 1725 rpm
Custom_Product_Images_Illustration
Baldor-Reliance VM3542 AC Motor, 208/230/460 VAC, 1.5/3/3.2 A, 56 Frame, 0.75 hp, 1725 rpm
SKU18643
MFGR #VM3542
Your Cost: $522.64/ea
List: Baldor-Reliance AC Motor, 208/230/460 VAC, 1.5/3/3.2 A, 60 Hz, 0.75 hp, 3, 1725 rpm, 1 Speed, TEFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, 10 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 11.35 in L x 9.27 in W
Baldor-Reliance AC Motor, 208/230/460 VAC, 1.5/3/3.2 A, 60 Hz, 0.75 hp, 3, 1725 rpm, 1 Speed, TEFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, 10 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 11.35 in L x 9.27 in W
Application General purpose Base No mounting Brand Baldor-Reliance Catalog Number VM3542 Country of Origin US Duty Continuous Enclosure TEFC Frame 56 Frequency Rating 60 Hz Full Load Current 1.5/3/3.2 A Gross Weight Per Pack 26.0000 lb Horsepower 0.75 hp Insulation Class F Manufacturer Baldor-Reliance (ABB) Mounting F1 NEMA DESIGN B Phase 3 Power Factor 0.00 Rotation Reversible Service Factor 1 Speed Rating 1,725 rpm Standards CSA Certified, UR Standard, NEMA Stock Status NONSTOCK Type AC Motors UNSPSC 26101112 UPC 11 78156810959 UPC 12 78156810959 Voltage Rating 208/230/460 V General Purpose .75HP,1725RPM,3PH,60HZ,56C,3420M,TEFC,F1 Locked drive end bearing 6 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose |
| Base | No mounting |
| Brand | Baldor-Reliance |
| Catalog Number | VM3542 |
| Country of Origin | US |
| Duty | Continuous |
| Enclosure | TEFC |
| Frame | 56 |
| Frequency Rating | 60 Hz |
| Full Load Current | 1.5/3/3.2 A |
| Gross Weight Per Pack | 26.0000 lb |
| Horsepower | 0.75 hp |
| Insulation Class | F |
| Manufacturer | Baldor-Reliance (ABB) |
| Mounting | F1 |
| NEMA DESIGN | B |
| Phase | 3 |
| Power Factor | 0.00 |
| Rotation | Reversible |
| Service Factor | 1 |
| Speed Rating | 1,725 rpm |
| Standards | CSA Certified, UR Standard, NEMA |
| Stock Status | NONSTOCK |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156810959 |
| UPC 12 | 78156810959 |
| Voltage Rating | 208/230/460 V |
| General Purpose |
| .75HP,1725RPM,3PH,60HZ,56C,3420M,TEFC,F1 |
| Locked drive end bearing |
| 6 power factor |
