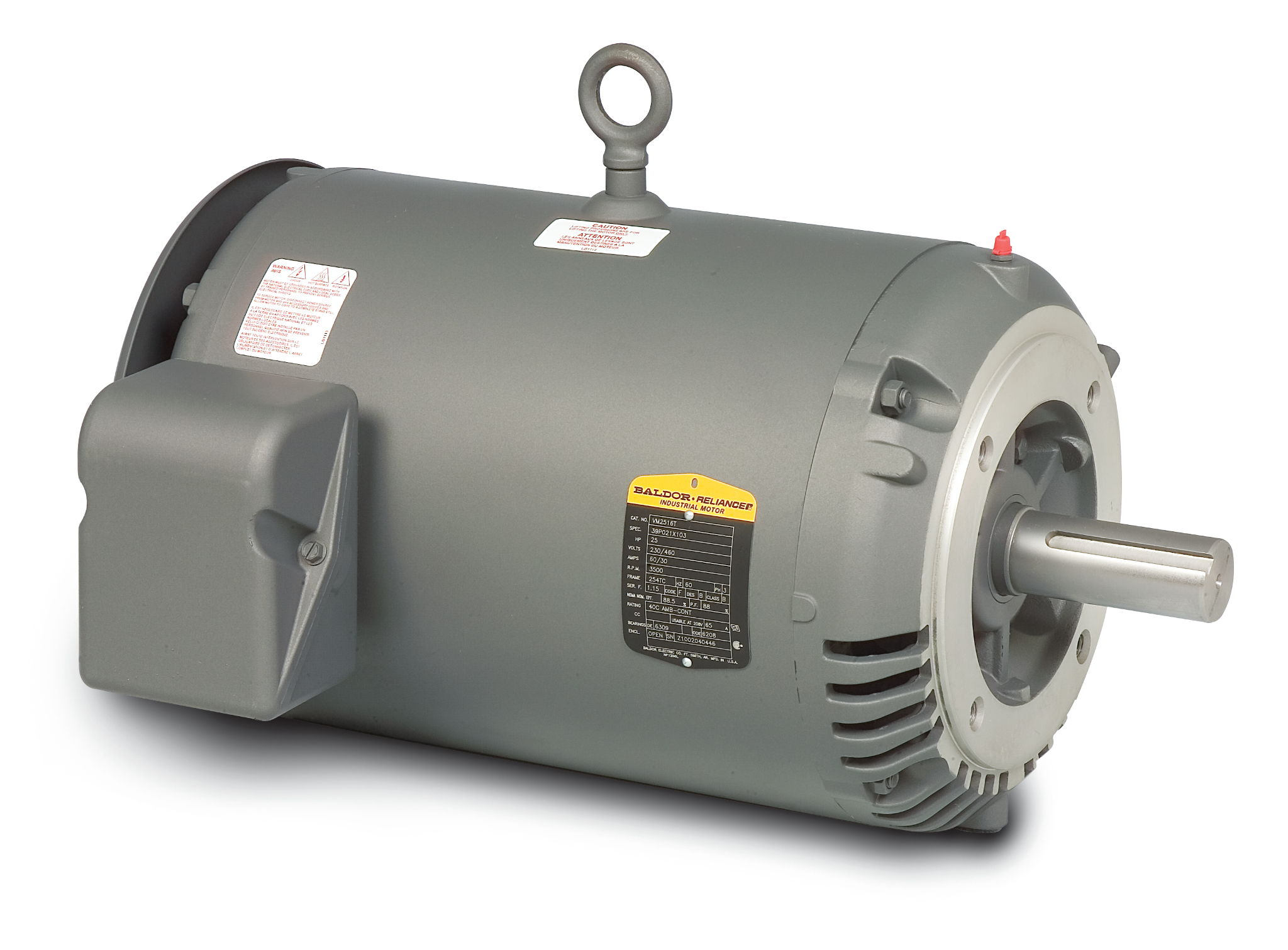

Baldor-Reliance VM3154 AC Motor, 208/230/460 VAC, 2.8/5.2/5.6 A, 56 Frame, 1.5 hp, 1725 rpm
Custom_Product_Images_Illustration
Baldor-Reliance VM3154 AC Motor, 208/230/460 VAC, 2.8/5.2/5.6 A, 56 Frame, 1.5 hp, 1725 rpm
SKUPDW~1271600
MFGR #VM3154
$/ea
Baldor-Reliance AC Motor, 208/230/460 VAC, 2.8/5.2/5.6 A, 60 Hz, 1.5 hp, 3, 1725 rpm, 1 Speed, OPEN, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 21.7 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 13.22 in L x 9.09 in W
Baldor-Reliance AC Motor, 208/230/460 VAC, 2.8/5.2/5.6 A, 60 Hz, 1.5 hp, 3, 1725 rpm, 1 Speed, OPEN, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 21.7 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 13.22 in L x 9.09 in W
Application General Purpose Base No mounting Catalog Number VM3154 Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 35.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard, NEMA Type AC Motors UNSPSC 26101112 UPC 11 78156811120 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure Open Frame 56 Full Load Current 2.8/5.2/5.6 A Horsepower 1.5 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,725 rpm Voltage Rating 208/230/460 V General Purpose 1.5HP,1725RPM,3PH,60HZ,56C,3520M,OPEN,F1 Locked drive end bearing 65 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General Purpose |
| Base | No mounting |
| Catalog Number | VM3154 |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 35.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard, NEMA |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156811120 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | Open |
| Frame | 56 |
| Full Load Current | 2.8/5.2/5.6 A |
| Horsepower | 1.5 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,725 rpm |
| Voltage Rating | 208/230/460 V |
| General Purpose |
| 1.5HP,1725RPM,3PH,60HZ,56C,3520M,OPEN,F1 |
| Locked drive end bearing |
| 65 power factor |
