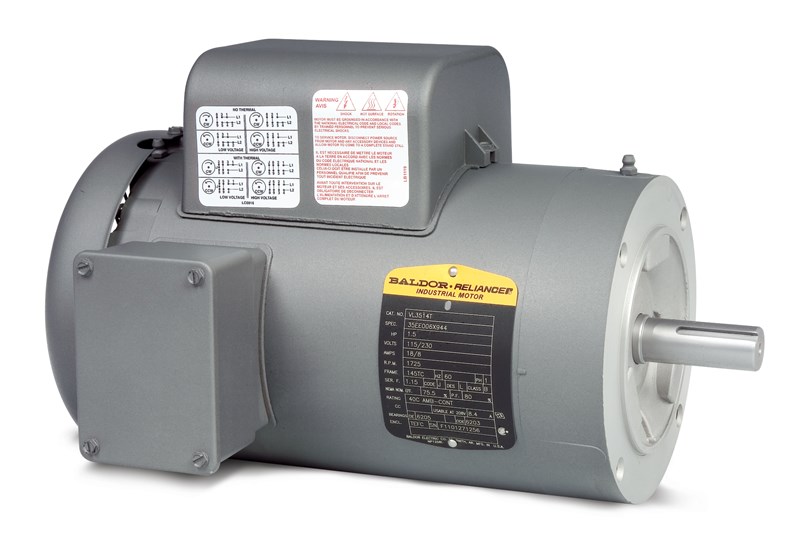

Baldor-Reliance VL3507 AC Motor, 115/230 VAC, 4.2/8.4 A, 56 Frame, 0.75 hp, 1725 rpm
Custom_Product_Images_Illustration
Baldor-Reliance VL3507 AC Motor, 115/230 VAC, 4.2/8.4 A, 56 Frame, 0.75 hp, 1725 rpm
SKU1309027
MFGR #VL3507
Your Cost: $731.86/ea
List: Baldor-Reliance AC Motor, 115/230 VAC, 4.2/8.4 A, 60 Hz, 0.75 hp, 1, 1725 rpm, 1 Speed, TEFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, 5.7 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 12.47 in L x 8.96 in W
Baldor-Reliance AC Motor, 115/230 VAC, 4.2/8.4 A, 60 Hz, 0.75 hp, 1, 1725 rpm, 1 Speed, TEFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, 5.7 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 12.47 in L x 8.96 in W
Application General purpose Base No mounting Catalog Number VL3507 Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 33.0000 lb Insulation Class F NEMA DESIGN N Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard, NEMA Type AC Motors UNSPSC 26101112 UPC 11 78156810907 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure TEFC Frame 56 Full Load Current 4.2/8.4 A Horsepower 0.75 hp Mounting F1 Phase 1 Power Factor 1.00 Speed Rating 1,725 rpm Voltage Rating 115/230 V General Purpose .75HP,1725RPM,1PH,60HZ,56C,3428LC,TEFC Gasketed conduit box and capacitor cover 78 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose |
| Base | No mounting |
| Catalog Number | VL3507 |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 33.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | N |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard, NEMA |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156810907 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | TEFC |
| Frame | 56 |
| Full Load Current | 4.2/8.4 A |
| Horsepower | 0.75 hp |
| Mounting | F1 |
| Phase | 1 |
| Power Factor | 1.00 |
| Speed Rating | 1,725 rpm |
| Voltage Rating | 115/230 V |
| General Purpose |
| .75HP,1725RPM,1PH,60HZ,56C,3428LC,TEFC |
| Gasketed conduit box and capacitor cover |
| 78 power factor |
