Baldor-Reliance

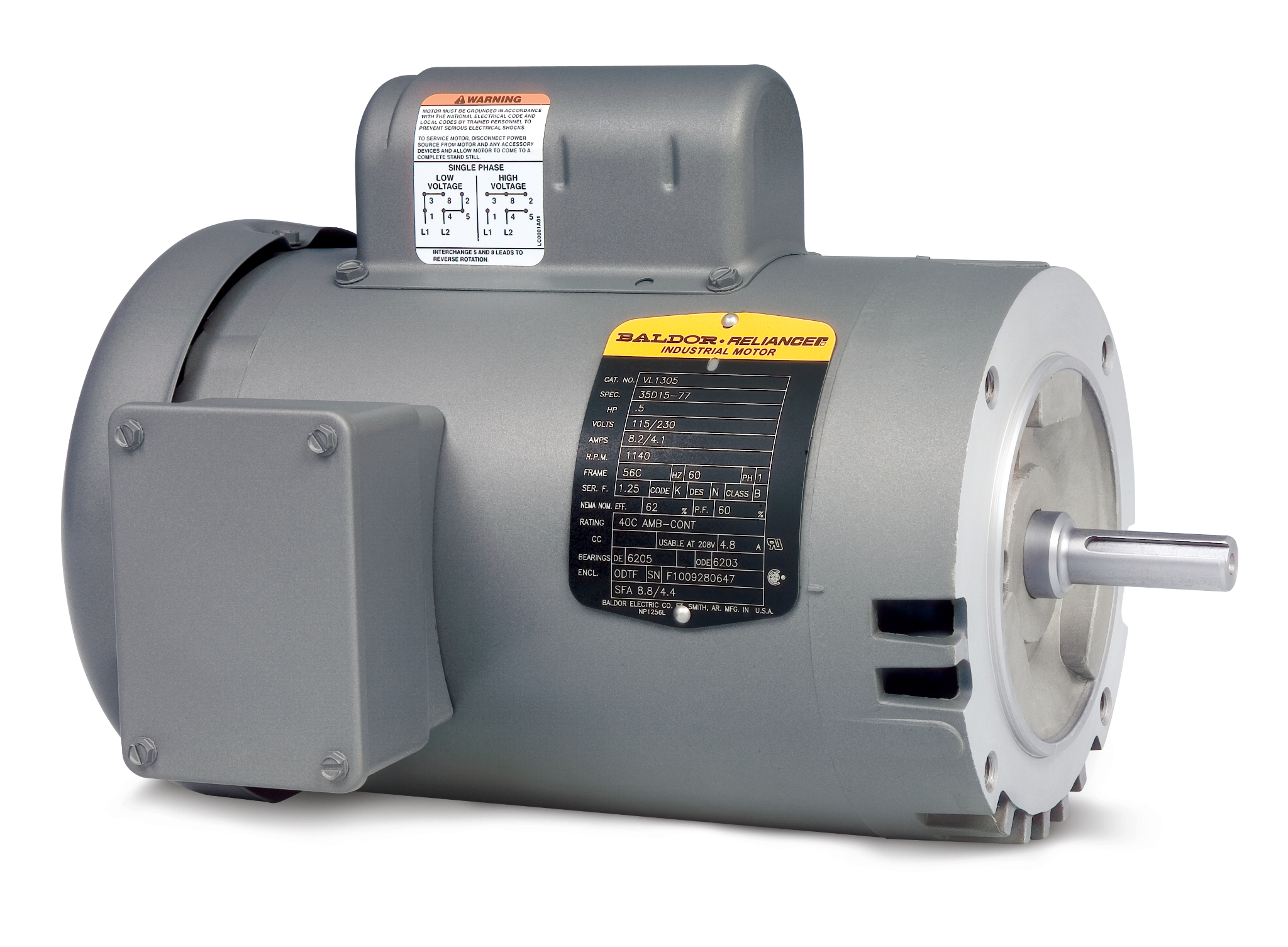

Baldor-Reliance VL1303 AC Motor, 115/230 VAC, 3.5/7 A, 56 Frame, 0.5 hp, 3450 rpm
Custom_Product_Images_Illustration
Baldor-Reliance
Baldor-Reliance VL1303 AC Motor, 115/230 VAC, 3.5/7 A, 56 Frame, 0.5 hp, 3450 rpm
SKUPDW~1271553
MFGR #VL1303
Your Cost: $411.16/ea
Baldor-Reliance AC Motor, 115/230 VAC, 3.5/7 A, 60 Hz, 0.5 hp, 1, 3450 rpm, 1 Speed, OPEN, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, 2.3 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 11.22 in L x 8.78 in W x 8.31 in H
Baldor-Reliance AC Motor, 115/230 VAC, 3.5/7 A, 60 Hz, 0.5 hp, 1, 3450 rpm, 1 Speed, OPEN, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, 2.3 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 11.22 in L x 8.78 in W x 8.31 in H
Application General purpose Base No mounting Catalog Number VL1303 Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 23.0000 lb Insulation Class F NEMA DESIGN N Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard, NEMA Type AC Motors UNSPSC 26101112 UPC 11 78156811073 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure Open Frame 56 Full Load Current 3.5/7 A Horsepower 0.5 hp Mounting F1 Phase 1 Power Factor 1.00 Speed Rating 3,450 rpm Voltage Rating 115/230 V General Purpose .5HP,3450RPM,1PH,60HZ,56C,3413L,OPEN,F1 72 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose |
| Base | No mounting |
| Catalog Number | VL1303 |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 23.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | N |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard, NEMA |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156811073 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | Open |
| Frame | 56 |
| Full Load Current | 3.5/7 A |
| Horsepower | 0.5 hp |
| Mounting | F1 |
| Phase | 1 |
| Power Factor | 1.00 |
| Speed Rating | 3,450 rpm |
| Voltage Rating | 115/230 V |
| General Purpose |
| .5HP,3450RPM,1PH,60HZ,56C,3413L,OPEN,F1 |
| 72 power factor |
