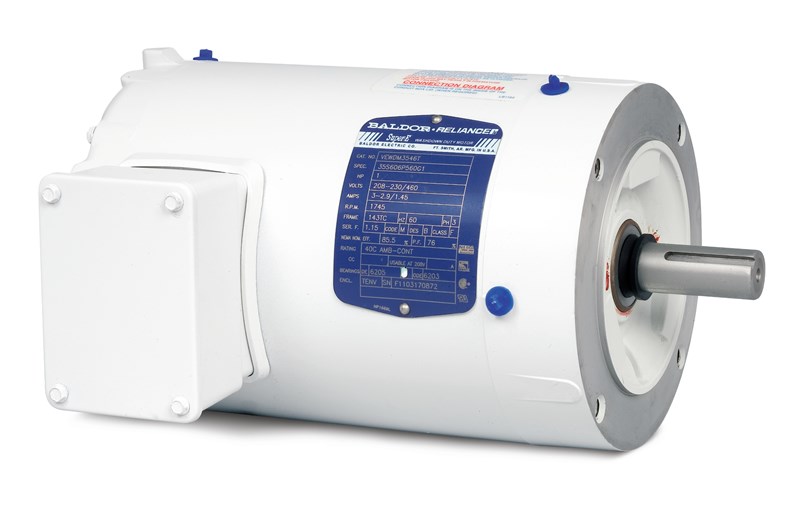

Baldor-Reliance Super-E® VEWDM3546T AC Motor, 208/230/460 VAC, 1.5/2.9/3 A, 143 Frame, 1 hp, 1745 rpm
Custom_Product_Images_Illustration
Baldor-Reliance Super-E® VEWDM3546T AC Motor, 208/230/460 VAC, 1.5/2.9/3 A, 143 Frame, 1 hp, 1745 rpm
SKU1157567
MFGR #VEWDM3546T
Your Cost: $1,398.92/ea
List: Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 1.5/2.9/3 A, 60 Hz, 1 hp, 3, 1745 rpm, 1 Speed, TENV, 143 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 14.3 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 12.12 in L x 10-1/4 in W
Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 1.5/2.9/3 A, 60 Hz, 1 hp, 3, 1745 rpm, 1 Speed, TENV, 143 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 14.3 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 12.12 in L x 10-1/4 in W
Application Wash Down Base No mounting Catalog Number VEWDM3546T Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 40.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard, NEMA Sub Brand Super-E Type AC Motors UNSPSC 26101112 UPC 11 78156848469 UPC 12 78156848469 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure TENV Frame 143 Full Load Current 1.5/2.9/3 A Horsepower 1000 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,745 rpm Voltage Rating 208/230/460 V Wash Down 1HP,1745RPM,3PH,60HZ,143TC,3524M,TENV,F1 300 series stainless steel hardware Moisture sealant on bolt heads, between frame and endplates Neoprene gaskets Double sealed bearings Lip and V-Ring seal on drive end Electrostically applied epoxy finish over autophoretic primer Nema Premium® efficiency 76 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Wash Down |
| Base | No mounting |
| Catalog Number | VEWDM3546T |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 40.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard, NEMA |
| Sub Brand | Super-E |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156848469 |
| UPC 12 | 78156848469 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | TENV |
| Frame | 143 |
| Full Load Current | 1.5/2.9/3 A |
| Horsepower | 1000 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,745 rpm |
| Voltage Rating | 208/230/460 V |
| Wash Down |
| 1HP,1745RPM,3PH,60HZ,143TC,3524M,TENV,F1 |
| 300 series stainless steel hardware |
| Moisture sealant on bolt heads, between frame and endplates |
| Neoprene gaskets |
| Double sealed bearings |
| Lip and V-Ring seal on drive end |
| Electrostically applied epoxy finish over autophoretic primer |
| Nema Premium® efficiency |
| 76 power factor |
