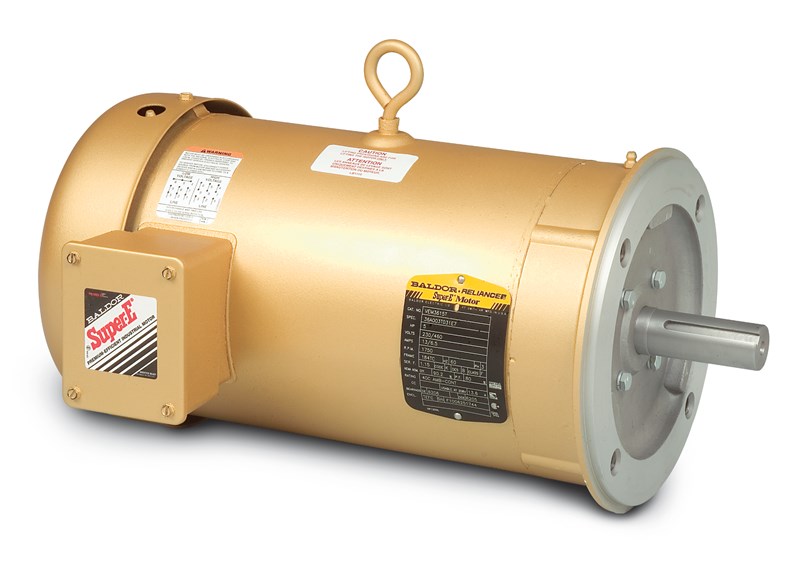

Baldor-Reliance Super-E® VEM3710T AC Motor, 208/230/460 VAC, 9.4/18.8/21 A, 213 Frame, 7.5 hp, 1770 rpm
Custom_Product_Images_Illustration
Baldor-Reliance Super-E® VEM3710T AC Motor, 208/230/460 VAC, 9.4/18.8/21 A, 213 Frame, 7.5 hp, 1770 rpm
SKU1188889
MFGR #VEM3710T
$/ea
Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 9.4/18.8/21 A, 60 Hz, 7.5 hp, 3, 1770 rpm, 1 Speed, TEFC, 213 Frame, 1-3/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 70.9 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 19.76 in L
Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 9.4/18.8/21 A, 60 Hz, 7.5 hp, 3, 1770 rpm, 1 Speed, TEFC, 213 Frame, 1-3/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 70.9 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 19.76 in L
Application General purpose Base No mounting Catalog Number VEM3710T Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 129.0000 lb Insulation Class F NEMA DESIGN A Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard, NEMA Sub Brand Super-E Type AC Motors UNSPSC 26101112 UPC 11 78156852663 UPC 12 78156852663 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure TEFC Frame 213 Full Load Current 9.4/18.8/21 A Horsepower 7.5 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,770 rpm Voltage Rating 208/230/460 V General Purpose 7.5HP,1770RPM,3PH,60HZ,213TC,3736M,TEFC ISR® (Inverter Spike Resistant®) copper windings Low-loss electrical grade lamination steel 81 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose |
| Base | No mounting |
| Catalog Number | VEM3710T |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 129.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | A |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard, NEMA |
| Sub Brand | Super-E |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156852663 |
| UPC 12 | 78156852663 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | TEFC |
| Frame | 213 |
| Full Load Current | 9.4/18.8/21 A |
| Horsepower | 7.5 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,770 rpm |
| Voltage Rating | 208/230/460 V |
| General Purpose |
| 7.5HP,1770RPM,3PH,60HZ,213TC,3736M,TEFC |
| ISR® (Inverter Spike Resistant®) copper windings |
| Low-loss electrical grade lamination steel |
| 81 power factor |
