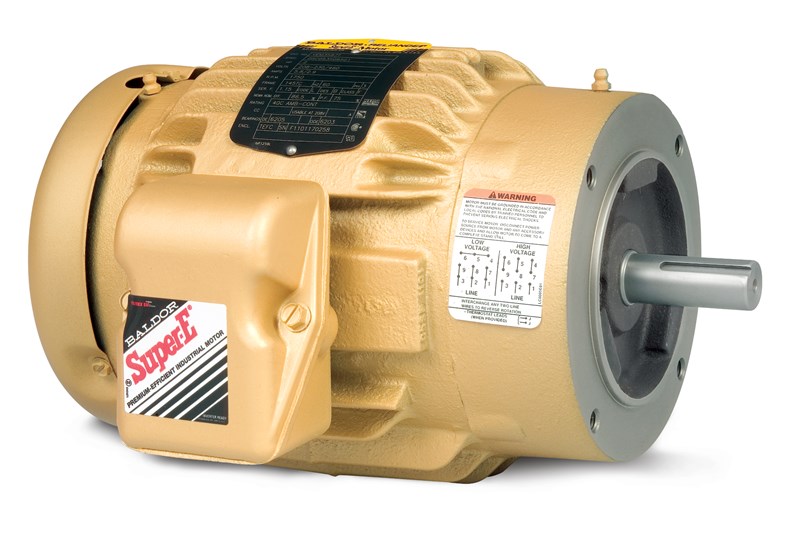

Baldor-Reliance Super-E® VEM3661T AC Motor, 208/230/460 VAC, 4.1/8.2/8.6 A, 182 Frame, 3 hp, 1755 rpm
Custom_Product_Images_Illustration
Baldor-Reliance Super-E® VEM3661T AC Motor, 208/230/460 VAC, 4.1/8.2/8.6 A, 182 Frame, 3 hp, 1755 rpm
SKU742602
MFGR #VEM3661T
$/ea
Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 4.1/8.2/8.6 A, 60 Hz, 3 hp, 3, 1755 rpm, 1 Speed, TEFC, 182 Frame, 1-1/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 33.1 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 16 in L x 11.91 in W
Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 4.1/8.2/8.6 A, 60 Hz, 3 hp, 3, 1755 rpm, 1 Speed, TEFC, 182 Frame, 1-1/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 33.1 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 16 in L x 11.91 in W
Application General purpose Base No mounting Brand Baldor-Reliance Catalog Number VEM3661T Country of Origin US Duty Continuous Enclosure TEFC Frame 182 Frequency Rating 60 Hz Full Load Current 4.1/8.2/8.6 A Gross Weight Per Pack 98.0000 lb Horsepower 3 hp Insulation Class F Manufacturer Baldor-Reliance (ABB) Mounting F1 NEMA DESIGN B Phase 3 Power Factor 1.00 Rotation Reversible Service Factor 1 Speed Rating 1,755 rpm Standards CSA Certified, UR Standard, NEMA Stock Status NONSTOCK Sub Brand Super-E Type AC Motors UNSPSC 26101112 UPC 11 78156815413 UPC 12 78156815413 Voltage Rating 208/230/460 V General Purpose 3HP,1755RPM,3PH,60HZ,182TC,0632M,TEFC,F1 Locked drive end bearing 77 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose |
| Base | No mounting |
| Brand | Baldor-Reliance |
| Catalog Number | VEM3661T |
| Country of Origin | US |
| Duty | Continuous |
| Enclosure | TEFC |
| Frame | 182 |
| Frequency Rating | 60 Hz |
| Full Load Current | 4.1/8.2/8.6 A |
| Gross Weight Per Pack | 98.0000 lb |
| Horsepower | 3 hp |
| Insulation Class | F |
| Manufacturer | Baldor-Reliance (ABB) |
| Mounting | F1 |
| NEMA DESIGN | B |
| Phase | 3 |
| Power Factor | 1.00 |
| Rotation | Reversible |
| Service Factor | 1 |
| Speed Rating | 1,755 rpm |
| Standards | CSA Certified, UR Standard, NEMA |
| Stock Status | NONSTOCK |
| Sub Brand | Super-E |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156815413 |
| UPC 12 | 78156815413 |
| Voltage Rating | 208/230/460 V |
| General Purpose |
| 3HP,1755RPM,3PH,60HZ,182TC,0632M,TEFC,F1 |
| Locked drive end bearing |
| 77 power factor |
