Baldor-Reliance

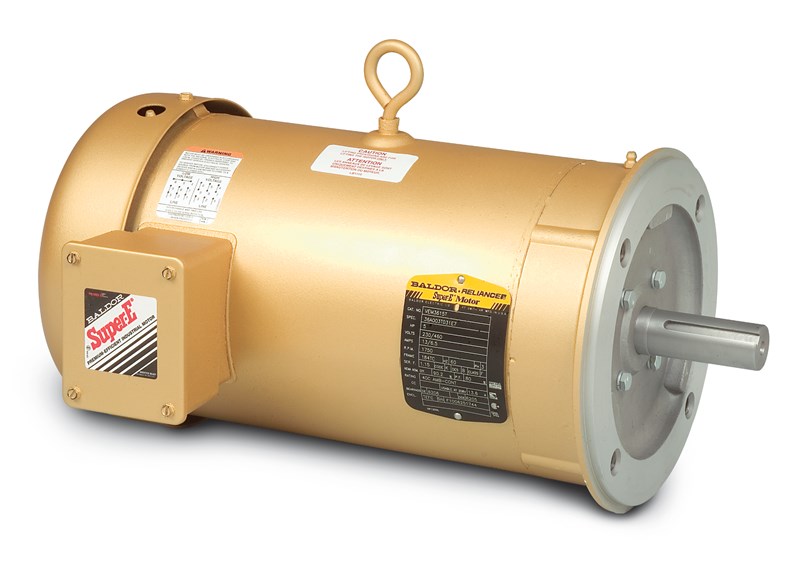

Baldor-Reliance Super-E® VEM3611T AC Motor, 208/230/460 VAC, 4.2/8.4/9 A, 182 Frame, 3 hp, 1760 rpm
Custom_Product_Images_Illustration
Baldor-Reliance
Baldor-Reliance Super-E® VEM3611T AC Motor, 208/230/460 VAC, 4.2/8.4/9 A, 182 Frame, 3 hp, 1760 rpm
SKU1144134
MFGR #VEM3611T
Your Cost: $1,033.51/ea
List: Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 4.2/8.4/9 A, 60 Hz, 3 hp, 3, 1760 rpm, 1 Speed, TEFC, 182 Frame, 1-1/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 37.6 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 16.55 in L x 12.03 in W
Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 4.2/8.4/9 A, 60 Hz, 3 hp, 3, 1760 rpm, 1 Speed, TEFC, 182 Frame, 1-1/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 37.6 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 16.55 in L x 12.03 in W
Application General purpose Base No mounting Catalog Number VEM3611T Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 73.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard, NEMA Sub Brand Super-E Type AC Motors UNSPSC 26101112 UPC 11 78156842284 UPC 12 78156842284 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure TEFC Frame 182 Full Load Current 4.2/8.4/9 A Horsepower 3 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,760 rpm Voltage Rating 208/230/460 V General Purpose 3HP,1760RPM,3PH,60HZ,182TC,3631M,TEFC,F1 ISR® (Inverter Spike Resistant®) copper windings 75 power factor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose |
| Base | No mounting |
| Catalog Number | VEM3611T |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 73.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard, NEMA |
| Sub Brand | Super-E |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156842284 |
| UPC 12 | 78156842284 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | TEFC |
| Frame | 182 |
| Full Load Current | 4.2/8.4/9 A |
| Horsepower | 3 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,760 rpm |
| Voltage Rating | 208/230/460 V |
| General Purpose |
| 3HP,1760RPM,3PH,60HZ,182TC,3631M,TEFC,F1 |
| ISR® (Inverter Spike Resistant®) copper windings |
| 75 power factor |
