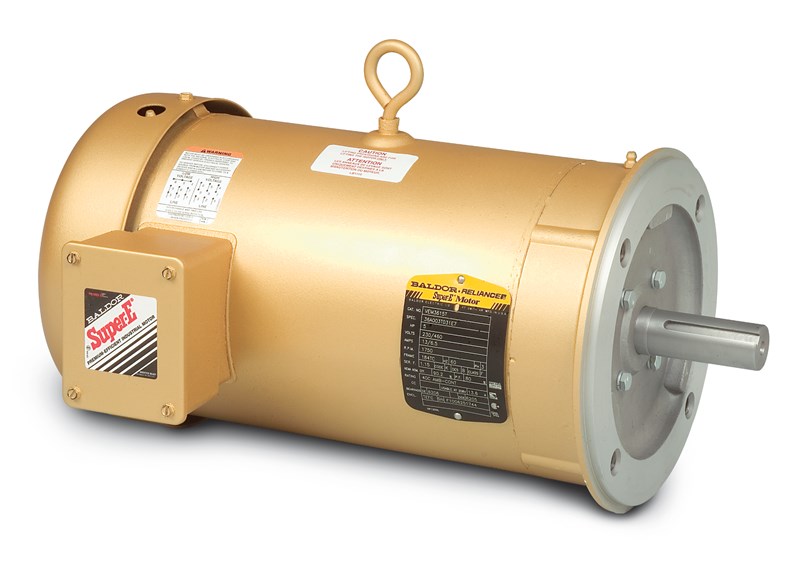

Baldor-Reliance Super-E® VEM3542 AC Motor, 230/460 VAC, 1.1/2.3 A, 56 Frame, 0.75 hp, 1750 rpm
General Purpose Motor AC
1157573
MFG #: VEM3542
Baldor-Reliance
793.13000
/ ea
Baldor-Reliance Super-E® AC Motor, 230/460 VAC, 1.1/2.3 A, 60 Hz, 0.75 hp, 3, 1750 rpm, 1 Speed, TEFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, 10.2 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 12.23 in L x 9-3/4 in W
- Applications
- Features
| General Purpose |
| .75HP,1750RPM,3PH,60HZ,56C,3517M,TEFC,F1 |
| ISR® (Inverter Spike Resistant®) copper windings |
| Low-loss electrical grade lamination steel |
| 73 power factor |
