Baldor-Reliance

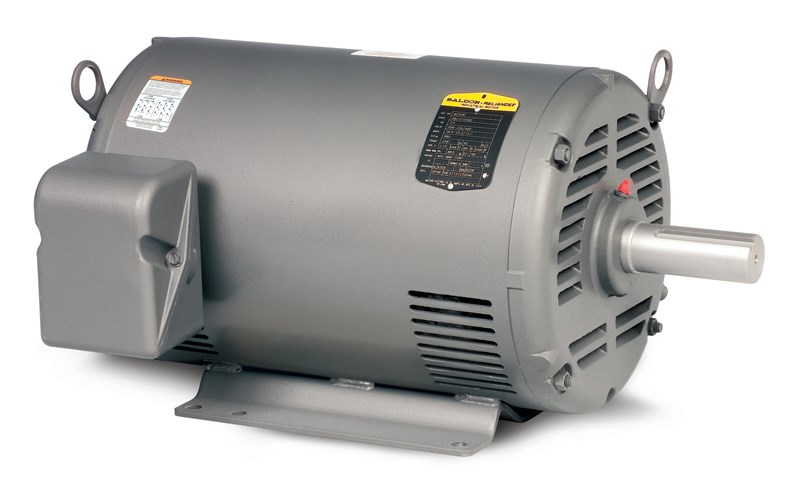

Baldor-Reliance Super-E® M3116T-8 AC Motor, 200 VAC, 3.6 A, 143 Frame, 1 hp, 1750 rpm
Custom_Product_Images_Illustration
Baldor-Reliance
Baldor-Reliance Super-E® M3116T-8 AC Motor, 200 VAC, 3.6 A, 143 Frame, 1 hp, 1750 rpm
SKUPDW~1271137
MFGR #M3116T-8
$/ea
Baldor-Reliance Super-E® AC Motor, 200 VAC, 3.6 A, 60 Hz, 1 hp, 3, 1750 rpm, 1 Speed, OPSB, 143 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 17.5 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 14.38 in L x 9.97 in W x 6.81 in H
Baldor-Reliance Super-E® AC Motor, 200 VAC, 3.6 A, 60 Hz, 1 hp, 3, 1750 rpm, 1 Speed, OPSB, 143 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 17.5 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 14.38 in L x 9.97 in W x 6.81 in H
Application General purpose Base Rigid Catalog Number M3116T-8 Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 32.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UL Listed, RoHS Compliant, NEMA Type AC Motors UNSPSC 26101112 UPC 11 78156811885 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure OPSB Frame 143 Full Load Current 3.6 A Horsepower 1000 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,750 rpm Voltage Rating 200 V General Purpose 1HP,1750RPM,3PH,60HZ,143T,3516M,OPSB,F1 73 power factor Rigid base
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose |
| Base | Rigid |
| Catalog Number | M3116T-8 |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 32.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UL Listed, RoHS Compliant, NEMA |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156811885 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | OPSB |
| Frame | 143 |
| Full Load Current | 3.6 A |
| Horsepower | 1000 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,750 rpm |
| Voltage Rating | 200 V |
| General Purpose |
| 1HP,1750RPM,3PH,60HZ,143T,3516M,OPSB,F1 |
| 73 power factor |
| Rigid base |
