Baldor-Reliance

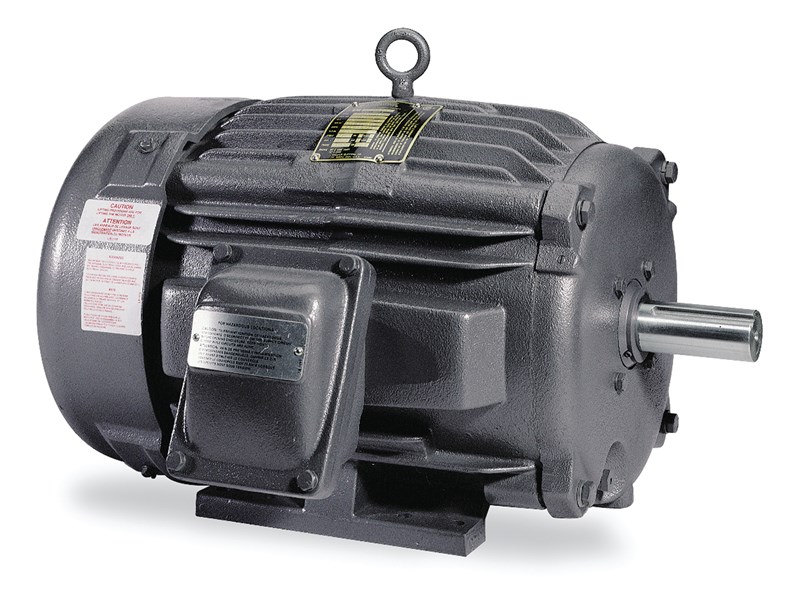

Baldor-Reliance Super-E® EM7170T-C AC Motor, 190/230/380/460 VAC, 11.3/12.2/22.6/24.4 A, 215 Frame, 7.5/10 hp
Custom_Product_Images_Illustration
Baldor-Reliance
Baldor-Reliance Super-E® EM7170T-C AC Motor, 190/230/380/460 VAC, 11.3/12.2/22.6/24.4 A, 215 Frame, 7.5/10 hp
SKUPDW~1476898
MFGR #EM7170T-C
Call For Price
Baldor-Reliance Super-E® AC Motor, 190/230/380/460 VAC, 11.3/12.2/22.6/24.4 A, 50/60 Hz, 7.5/10 hp, 3, 1465/1760 rpm, 1 Speed, XPFC, 215 Frame, 1-3/8 in Dia Shaft, Reversible, Service Factor: 1, Ball Bearing, 80.9 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 19.91 in L x 15.16 in W x 10-3/4 in H
Baldor-Reliance Super-E® AC Motor, 190/230/380/460 VAC, 11.3/12.2/22.6/24.4 A, 50/60 Hz, 7.5/10 hp, 3, 1465/1760 rpm, 1 Speed, XPFC, 215 Frame, 1-3/8 in Dia Shaft, Reversible, Service Factor: 1, Ball Bearing, 80.9 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 19.91 in L x 15.16 in W x 10-3/4 in H
Application Hazardous Location Motor Base Rigid Catalog Number EM7170T-C Country of Origin US Duty Continuous Frequency Rating 50/60 Hz Gross Weight Per Pack 249.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard, UL Listed Sub Brand Super-E Type AC Motors UNSPSC 26101112 UPC 11 78156822031 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure XPFC Frame 215 Full Load Current 11.3/12.2/22.6/24.4 A Horsepower 7.5/10 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,760 rpm; 1,465 rpm Voltage Rating 190/230/380/460 V Hazardous Location Motor 10//7.5HP,1760//1465RPM,3PH,60//50HZ,215 Available in 182T through 449T frames (-c models) Corrosion resistant epoxy finish U.L. approved cast conduit box standard 83 power factor Rigid base
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Hazardous Location Motor |
| Base | Rigid |
| Catalog Number | EM7170T-C |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 249.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard, UL Listed |
| Sub Brand | Super-E |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156822031 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | XPFC |
| Frame | 215 |
| Full Load Current | 11.3/12.2/22.6/24.4 A |
| Horsepower | 7.5/10 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,760 rpm; 1,465 rpm |
| Voltage Rating | 190/230/380/460 V |
| Hazardous Location Motor |
| 10//7.5HP,1760//1465RPM,3PH,60//50HZ,215 |
| Available in 182T through 449T frames (-c models) |
| Corrosion resistant epoxy finish |
| U.L. approved cast conduit box standard |
| 83 power factor |
| Rigid base |
