Baldor-Reliance

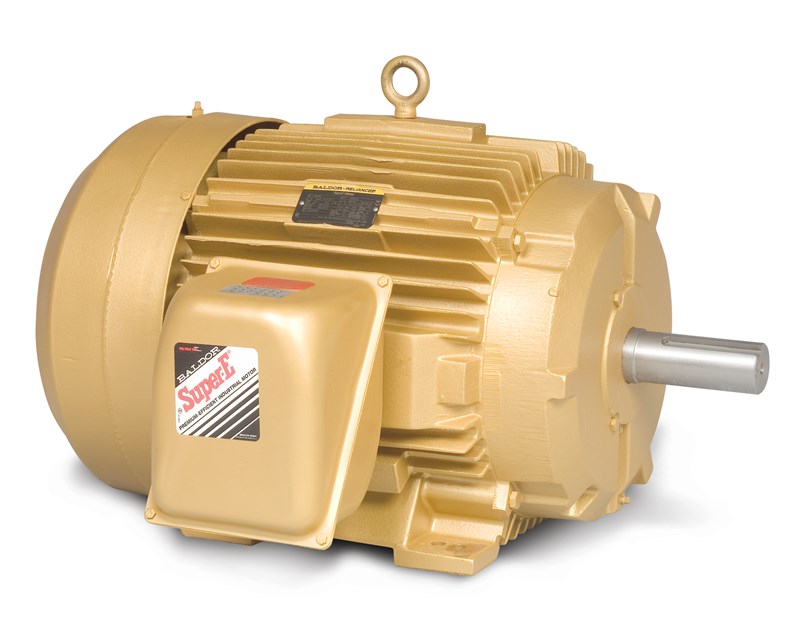

Baldor-Reliance Super-E® EM4316T AC Motor, 230/460 VAC, 84.9/169 A, 365 Frame, 75 hp, 1780 rpm
Custom_Product_Images_Illustration
Baldor-Reliance
Baldor-Reliance Super-E® EM4316T AC Motor, 230/460 VAC, 84.9/169 A, 365 Frame, 75 hp, 1780 rpm
SKU347410
MFGR #EM4316T
$/ea
Baldor-Reliance Super-E® AC Motor, 230/460 VAC, 84.9/169 A, 60 Hz, 75 hp, 3, 1780 rpm, 1 Speed, TEFC, 365 Frame, 2-3/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 528 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 33.48 in L x 19.12 in H
Baldor-Reliance Super-E® AC Motor, 230/460 VAC, 84.9/169 A, 60 Hz, 75 hp, 3, 1780 rpm, 1 Speed, TEFC, 365 Frame, 2-3/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 528 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 33.48 in L x 19.12 in H
Application General purpose Base Rigid Brand Baldor-Reliance Catalog Number EM4316T Country of Origin US Duty Continuous Enclosure TEFC Frame 365 Frequency Rating 60 Hz Full Load Current 84.9/169 A Gross Weight Per Pack 955.0000 lb Horsepower 75 hp Insulation Class F Manufacturer Baldor-Reliance (ABB) NEMA DESIGN B Phase 3 Power Factor 1.00 Rotation Reversible Service Factor 1 Speed Rating 1,780 rpm Standards CSA Certified, UR Standard Stock Status NONSTOCK Sub Brand Super-E Type AC Motors UNSPSC 26101112 UPC 11 78156810359 UPC 12 78156810359 Voltage Rating 230/460 V General Purpose 75HP,1780RPM,3PH,60HZ,365T,A36068M,TEFC Suitable for mounting any position 87 power factor Rigid base
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose |
| Base | Rigid |
| Brand | Baldor-Reliance |
| Catalog Number | EM4316T |
| Country of Origin | US |
| Duty | Continuous |
| Enclosure | TEFC |
| Frame | 365 |
| Frequency Rating | 60 Hz |
| Full Load Current | 84.9/169 A |
| Gross Weight Per Pack | 955.0000 lb |
| Horsepower | 75 hp |
| Insulation Class | F |
| Manufacturer | Baldor-Reliance (ABB) |
| NEMA DESIGN | B |
| Phase | 3 |
| Power Factor | 1.00 |
| Rotation | Reversible |
| Service Factor | 1 |
| Speed Rating | 1,780 rpm |
| Standards | CSA Certified, UR Standard |
| Stock Status | NONSTOCK |
| Sub Brand | Super-E |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156810359 |
| UPC 12 | 78156810359 |
| Voltage Rating | 230/460 V |
| General Purpose |
| 75HP,1780RPM,3PH,60HZ,365T,A36068M,TEFC |
| Suitable for mounting any position |
| 87 power factor |
| Rigid base |
