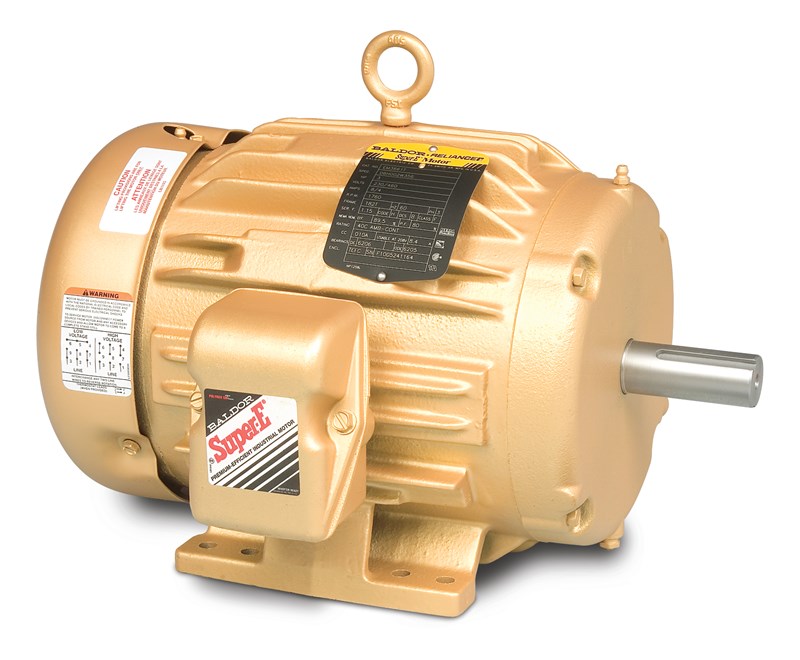

Baldor-Reliance Super-E® EM4108T AC Motor, 230/460 VAC, 34/68 A, 286 Frame, 30 hp, 3520 rpm
Custom_Product_Images_Illustration
Baldor-Reliance Super-E® EM4108T AC Motor, 230/460 VAC, 34/68 A, 286 Frame, 30 hp, 3520 rpm
SKU1320706
MFGR #EM4108T
Your Cost: $5,756.32/ea
List: Baldor-Reliance Super-E® AC Motor, 230/460 VAC, 34/68 A, 60 Hz, 30 hp, 3, 3520 rpm, 1 Speed, TEFC, 286 Frame, 1-5/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 222 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 24.7 in L x 18.83 in W x 16.35 in H
Baldor-Reliance Super-E® AC Motor, 230/460 VAC, 34/68 A, 60 Hz, 30 hp, 3, 3520 rpm, 1 Speed, TEFC, 286 Frame, 1-5/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 222 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 24.7 in L x 18.83 in W x 16.35 in H
Application General Purpose Base Rigid Catalog Number EM4108T Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 347.0000 lb Insulation Class F NEMA DESIGN A Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard Sub Brand Super-E Type AC Motors UNSPSC 26101112 UPC 11 78156810328 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure TEFC Frame 286 Full Load Current 34/68 A Horsepower 30 hp Mounting F1 Phase 3 Power Factor 0.00 Speed Rating 3,520 rpm Voltage Rating 230/460 V General Purpose 30HP,3520RPM,3PH,60HZ,286TS,0950M,TEFC,F Suitable for mounting any position 9 power factor Rigid base
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General Purpose |
| Base | Rigid |
| Catalog Number | EM4108T |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 347.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | A |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard |
| Sub Brand | Super-E |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156810328 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | TEFC |
| Frame | 286 |
| Full Load Current | 34/68 A |
| Horsepower | 30 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 0.00 |
| Speed Rating | 3,520 rpm |
| Voltage Rating | 230/460 V |
| General Purpose |
| 30HP,3520RPM,3PH,60HZ,286TS,0950M,TEFC,F |
| Suitable for mounting any position |
| 9 power factor |
| Rigid base |
