Baldor-Reliance

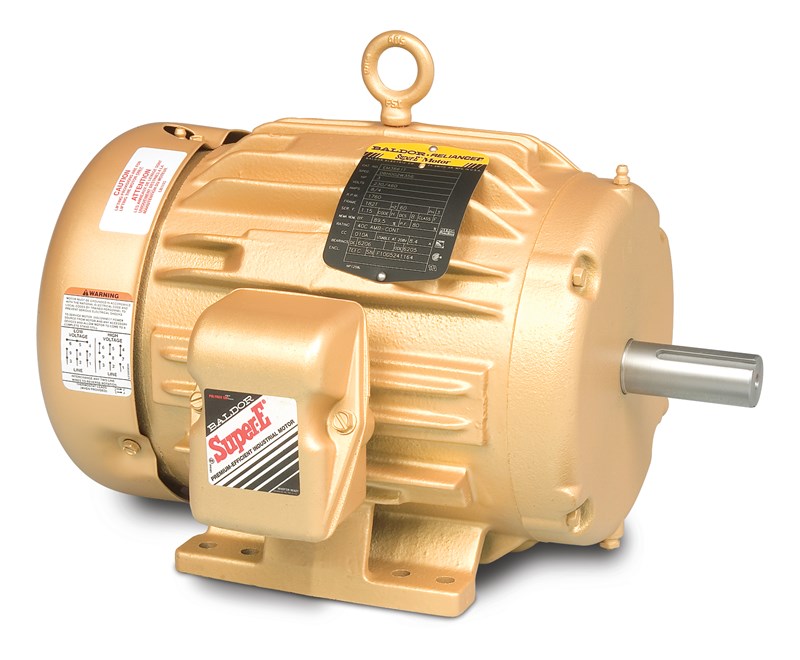

Baldor-Reliance Super-E® EM4107T AC Motor, 230/460 VAC, 29/58 A, 284 Frame, 25 hp, 3525 rpm
Custom_Product_Images_Illustration
Baldor-Reliance
Baldor-Reliance Super-E® EM4107T AC Motor, 230/460 VAC, 29/58 A, 284 Frame, 25 hp, 3525 rpm
SKU368615
MFGR #EM4107T
$/ea
Baldor-Reliance Super-E® AC Motor, 230/460 VAC, 29/58 A, 60 Hz, 25 hp, 3, 3525 rpm, 1 Speed, TEFC, 284 Frame, 1-5/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 198 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 24.7 in L x 18.83 in W x 16.35 in H
Baldor-Reliance Super-E® AC Motor, 230/460 VAC, 29/58 A, 60 Hz, 25 hp, 3, 3525 rpm, 1 Speed, TEFC, 284 Frame, 1-5/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 198 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 24.7 in L x 18.83 in W x 16.35 in H
Application General Purpose Base Rigid Brand Baldor-Reliance Catalog Number EM4107T Country of Origin US Duty Continuous Enclosure TEFC Frame 284 Frequency Rating 60 Hz Full Load Current 29/58 A Gross Weight Per Pack 327.0000 lb Horsepower 25 hp Insulation Class F Manufacturer Baldor-Reliance (ABB) Mounting F1 NEMA DESIGN B Phase 3 Power Factor 1.00 Rotation Reversible Service Factor 1 Speed Rating 3,525 rpm Standards CSA Certified, UR Standard Stock Status NONSTOCK Sub Brand Super-E Type AC Motors UNSPSC 26101112 UPC 11 78156810318 UPC 12 78156810318 Voltage Rating 230/460 V General Purpose 25HP,3525RPM,3PH,60HZ,284TS,0946M,TEFC,F Suitable for mounting any position 88 power factor Rigid base
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General Purpose |
| Base | Rigid |
| Brand | Baldor-Reliance |
| Catalog Number | EM4107T |
| Country of Origin | US |
| Duty | Continuous |
| Enclosure | TEFC |
| Frame | 284 |
| Frequency Rating | 60 Hz |
| Full Load Current | 29/58 A |
| Gross Weight Per Pack | 327.0000 lb |
| Horsepower | 25 hp |
| Insulation Class | F |
| Manufacturer | Baldor-Reliance (ABB) |
| Mounting | F1 |
| NEMA DESIGN | B |
| Phase | 3 |
| Power Factor | 1.00 |
| Rotation | Reversible |
| Service Factor | 1 |
| Speed Rating | 3,525 rpm |
| Standards | CSA Certified, UR Standard |
| Stock Status | NONSTOCK |
| Sub Brand | Super-E |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156810318 |
| UPC 12 | 78156810318 |
| Voltage Rating | 230/460 V |
| General Purpose |
| 25HP,3525RPM,3PH,60HZ,284TS,0946M,TEFC,F |
| Suitable for mounting any position |
| 88 power factor |
| Rigid base |
