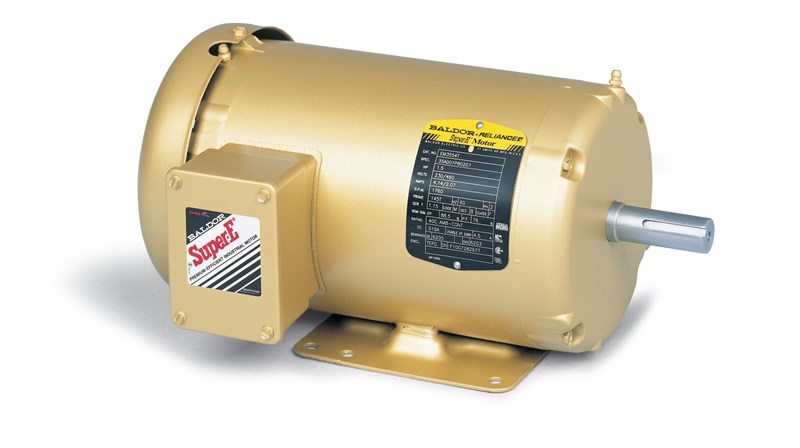

Baldor-Reliance Super-E® EM3708T AC Motor, 208/230/460 VAC, 7.3/14.6/15.3 A, 215 Frame, 5 hp, 1160 rpm
Custom_Product_Images_Illustration
Baldor-Reliance Super-E® EM3708T AC Motor, 208/230/460 VAC, 7.3/14.6/15.3 A, 215 Frame, 5 hp, 1160 rpm
SKU297617
MFGR #EM3708T
Your Cost: $1,845.02/ea
List: Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 7.3/14.6/15.3 A, 60 Hz, 5 hp, 3, 1160 rpm, 1 Speed, TEFC, 215 Frame, 1-3/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 73.2 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 19.77 in L x 12.42 in H
Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 7.3/14.6/15.3 A, 60 Hz, 5 hp, 3, 1160 rpm, 1 Speed, TEFC, 215 Frame, 1-3/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 73.2 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 19.77 in L x 12.42 in H
Application General purpose Base Rigid Brand Baldor-Reliance Catalog Number EM3708T Country of Origin US Duty Continuous Enclosure TEFC Frame 215 Frequency Rating 60 Hz Full Load Current 7.3/14.6/15.3 A Gross Weight Per Pack 154.0000 lb Horsepower 5 hp Insulation Class F Manufacturer Baldor-Reliance (ABB) Mounting F1 NEMA DESIGN A Phase 3 Power Factor 1.00 Rotation Reversible Service Factor 1 Speed Rating 1,160 rpm Standards CSA Certified, UR Standard Stock Status NONSTOCK Sub Brand Super-E Type AC Motors UNSPSC 26101112 UPC 11 78156813902 UPC 12 78156813902 Voltage Rating 208/230/460 V General Purpose 5HP,1160RPM,3PH,60HZ,215T,3748M,TEFC,F1 Suitable for mounting any position 72 power factor Rigid base
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose |
| Base | Rigid |
| Brand | Baldor-Reliance |
| Catalog Number | EM3708T |
| Country of Origin | US |
| Duty | Continuous |
| Enclosure | TEFC |
| Frame | 215 |
| Frequency Rating | 60 Hz |
| Full Load Current | 7.3/14.6/15.3 A |
| Gross Weight Per Pack | 154.0000 lb |
| Horsepower | 5 hp |
| Insulation Class | F |
| Manufacturer | Baldor-Reliance (ABB) |
| Mounting | F1 |
| NEMA DESIGN | A |
| Phase | 3 |
| Power Factor | 1.00 |
| Rotation | Reversible |
| Service Factor | 1 |
| Speed Rating | 1,160 rpm |
| Standards | CSA Certified, UR Standard |
| Stock Status | NONSTOCK |
| Sub Brand | Super-E |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156813902 |
| UPC 12 | 78156813902 |
| Voltage Rating | 208/230/460 V |
| General Purpose |
| 5HP,1160RPM,3PH,60HZ,215T,3748M,TEFC,F1 |
| Suitable for mounting any position |
| 72 power factor |
| Rigid base |
