Baldor-Reliance

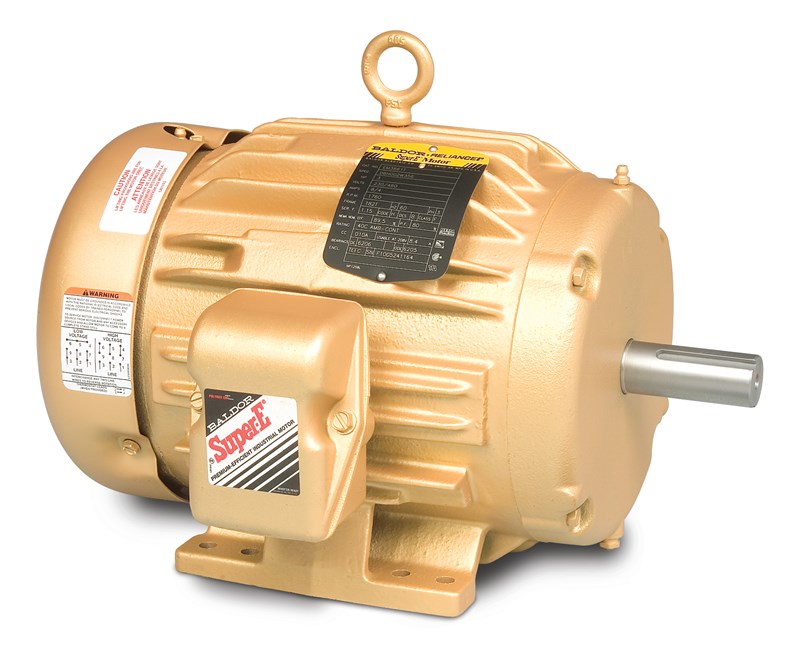

Baldor-Reliance Super-E® EM3664T AC Motor, 230/460 VAC, 3.2/6.3 A, 184 Frame, 2 hp, 1165 rpm
Custom_Product_Images_Illustration
Baldor-Reliance
Baldor-Reliance Super-E® EM3664T AC Motor, 230/460 VAC, 3.2/6.3 A, 184 Frame, 2 hp, 1165 rpm
SKUPDW~1476822
MFGR #EM3664T
Your Cost: $2,991.19/ea
Baldor-Reliance Super-E® AC Motor, 230/460 VAC, 3.2/6.3 A, 60 Hz, 2 hp, 3, 1165 rpm, 1 Speed, TEFC, 184 Frame, 1-1/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 31.2 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 15.24 in L x 11.91 in W x 11-1/4 in H
Baldor-Reliance Super-E® AC Motor, 230/460 VAC, 3.2/6.3 A, 60 Hz, 2 hp, 3, 1165 rpm, 1 Speed, TEFC, 184 Frame, 1-1/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 31.2 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Iron, 15.24 in L x 11.91 in W x 11-1/4 in H
Application General Purpose Base Rigid Catalog Number EM3664T Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 109.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard Sub Brand Super-E Type AC Motors UNSPSC 26101112 UPC 11 78156820476 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure TEFC Frame 184 Full Load Current 3.2/6.3 A Horsepower 2 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,165 rpm Voltage Rating 230/460 V General Purpose 2HP,1165RPM,3PH,60HZ,184T,0642M,TEFC,F1 Suitable for mounting any position 68 power factor Rigid base
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General Purpose |
| Base | Rigid |
| Catalog Number | EM3664T |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 109.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard |
| Sub Brand | Super-E |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156820476 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | TEFC |
| Frame | 184 |
| Full Load Current | 3.2/6.3 A |
| Horsepower | 2 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,165 rpm |
| Voltage Rating | 230/460 V |
| General Purpose |
| 2HP,1165RPM,3PH,60HZ,184T,0642M,TEFC,F1 |
| Suitable for mounting any position |
| 68 power factor |
| Rigid base |
