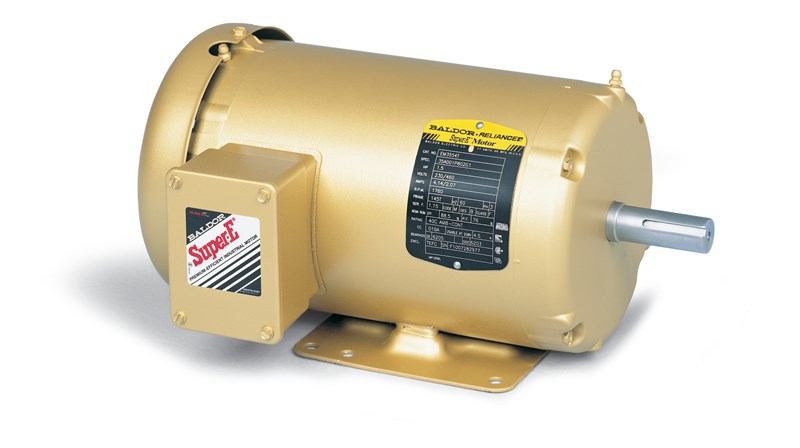

Baldor-Reliance Super-E® EM3614T AC Motor, 208/230/460 VAC, 3.5/7 A, 184 Frame, 2 hp, 1175 rpm
Custom_Product_Images_Illustration
Baldor-Reliance Super-E® EM3614T AC Motor, 208/230/460 VAC, 3.5/7 A, 184 Frame, 2 hp, 1175 rpm
SKU604007
MFGR #EM3614T
Your Cost: $1,255.50/ea
List: Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 3.5/7 A, 60 Hz, 2 hp, 3, 1175 rpm, 1 Speed, TEFC, 184 Frame, 1-1/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 40.2 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 18.05 in L x 12.03 in W x 10.87 in H
Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 3.5/7 A, 60 Hz, 2 hp, 3, 1175 rpm, 1 Speed, TEFC, 184 Frame, 1-1/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 40.2 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 18.05 in L x 12.03 in W x 10.87 in H
Application General purpose Base Rigid Brand Baldor-Reliance Catalog Number EM3614T Country of Origin US Duty Continuous Enclosure TEFC Frame 184 Frequency Rating 60 Hz Full Load Current 3.5/7 A Gross Weight Per Pack 93.0000 lb Horsepower 2 hp Insulation Class F Manufacturer Baldor-Reliance (ABB) Mounting F1 NEMA DESIGN A Phase 3 Power Factor 0.00 Rotation Reversible Service Factor 1 Speed Rating 1,175 rpm Standards CSA Certified, UR Standard Stock Status NONSTOCK Sub Brand Super-E Type AC Motors UNSPSC 26101112 UPC 11 78156860441 UPC 12 78156860441 Voltage Rating 200/230/460 V General Purpose 2HP,1170RPM,3PH,60HZ,184T,3644M,TEFC,F1 ISR® (Inverter Spike Resistant®) copper windings Low-loss electrical grade lamination steel 6 power factor Rigid base
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose |
| Base | Rigid |
| Brand | Baldor-Reliance |
| Catalog Number | EM3614T |
| Country of Origin | US |
| Duty | Continuous |
| Enclosure | TEFC |
| Frame | 184 |
| Frequency Rating | 60 Hz |
| Full Load Current | 3.5/7 A |
| Gross Weight Per Pack | 93.0000 lb |
| Horsepower | 2 hp |
| Insulation Class | F |
| Manufacturer | Baldor-Reliance (ABB) |
| Mounting | F1 |
| NEMA DESIGN | A |
| Phase | 3 |
| Power Factor | 0.00 |
| Rotation | Reversible |
| Service Factor | 1 |
| Speed Rating | 1,175 rpm |
| Standards | CSA Certified, UR Standard |
| Stock Status | NONSTOCK |
| Sub Brand | Super-E |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156860441 |
| UPC 12 | 78156860441 |
| Voltage Rating | 200/230/460 V |
| General Purpose |
| 2HP,1170RPM,3PH,60HZ,184T,3644M,TEFC,F1 |
| ISR® (Inverter Spike Resistant®) copper windings |
| Low-loss electrical grade lamination steel |
| 6 power factor |
| Rigid base |
