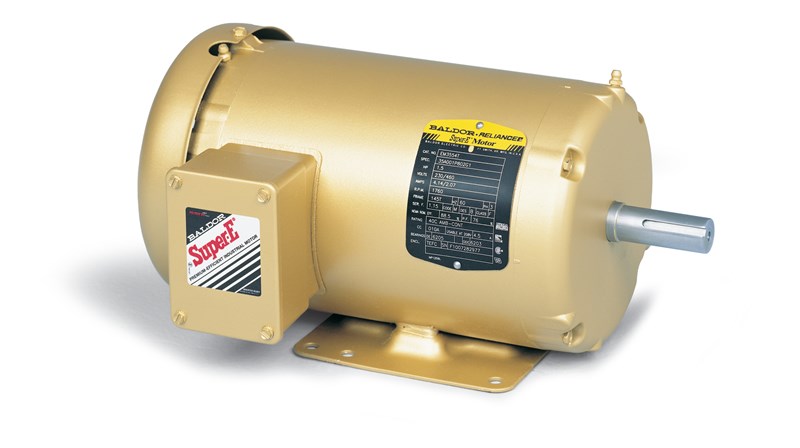

Baldor-Reliance Super-E® EM3558T-8 AC Motor, 200 VAC, 6.8 A, 145 Frame, 2 hp, 1750 rpm
Custom_Product_Images_Illustration
Baldor-Reliance Super-E® EM3558T-8 AC Motor, 200 VAC, 6.8 A, 145 Frame, 2 hp, 1750 rpm
SKUPDW~1476802
MFGR #EM3558T-8
$/ea
Baldor-Reliance Super-E® AC Motor, 200 VAC, 6.8 A, 60 Hz, 2 hp, 3, 1750 rpm, 1 Speed, TEFC, 145 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 25.8 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 13.31 in L x 10-1/4 in W x 6.81 in H
Baldor-Reliance Super-E® AC Motor, 200 VAC, 6.8 A, 60 Hz, 2 hp, 3, 1750 rpm, 1 Speed, TEFC, 145 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 25.8 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 13.31 in L x 10-1/4 in W x 6.81 in H
Application General Purpose Base Rigid Catalog Number EM3558T-8 Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 46.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard Sub Brand Super-E Type AC Motors UNSPSC 26101112 UPC 11 78156868202 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure TEFC Frame 145 Full Load Current 6.8 A Horsepower 2 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,750 rpm Voltage Rating 200 V General Purpose 2HP,1750RPM,3PH,60HZ,145T,3530M,TEFC,F1 73 power factor Rigid base
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General Purpose |
| Base | Rigid |
| Catalog Number | EM3558T-8 |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 46.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard |
| Sub Brand | Super-E |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156868202 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | TEFC |
| Frame | 145 |
| Full Load Current | 6.8 A |
| Horsepower | 2 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,750 rpm |
| Voltage Rating | 200 V |
| General Purpose |
| 2HP,1750RPM,3PH,60HZ,145T,3530M,TEFC,F1 |
| 73 power factor |
| Rigid base |
