Baldor-Reliance

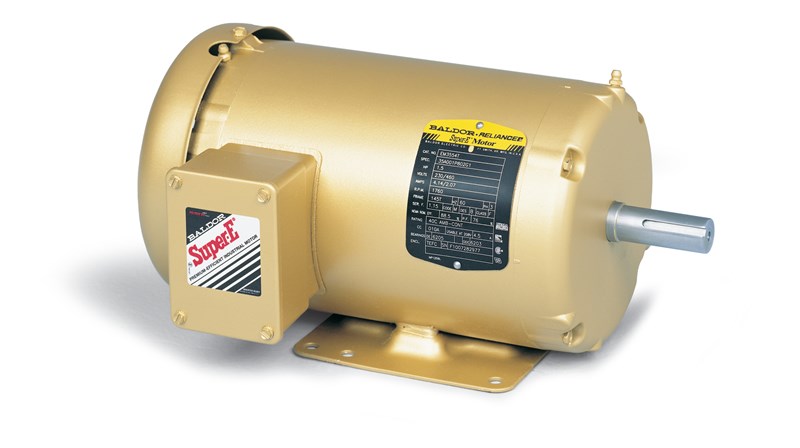

Baldor-Reliance Super-E® EM3555T AC Motor, 208/230/460 VAC, 2.5/5/5.3 A, 145 Frame, 2 hp, 3490 rpm
Custom_Product_Images_Illustration
Baldor-Reliance
Baldor-Reliance Super-E® EM3555T AC Motor, 208/230/460 VAC, 2.5/5/5.3 A, 145 Frame, 2 hp, 3490 rpm
SKU670084
MFGR #EM3555T
$/ea
Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 2.5/5/5.3 A, 60 Hz, 2 hp, 3, 3490 rpm, 1 Speed, TEFC, 145 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 14.2 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 13.29 in L x 10-1/4 in W x 6.81 in H
Baldor-Reliance Super-E® AC Motor, 208/230/460 VAC, 2.5/5/5.3 A, 60 Hz, 2 hp, 3, 3490 rpm, 1 Speed, TEFC, 145 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 14.2 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 13.29 in L x 10-1/4 in W x 6.81 in H
Application General purpose Base Rigid Brand Baldor-Reliance Catalog Number EM3555T Country of Origin US Duty Continuous Enclosure TEFC Frame 145 Frequency Rating 60 Hz Full Load Current 2.5/5/5.3 A Gross Weight Per Pack 43.0000 lb Horsepower 2 hp Insulation Class F Manufacturer Baldor-Reliance (ABB) Mounting F1 NEMA DESIGN B Phase 3 Power Factor 1.00 Rotation Reversible Service Factor 1 Speed Rating 3,490 rpm Standards CSA Certified, UR Standard Stock Status NONSTOCK Sub Brand Super-E Type AC Motors UNSPSC 26101112 UPC 11 78156821769 UPC 12 78156821769 Voltage Rating 208/230/460 V General Purpose 2HP,3490RPM,3PH,60HZ,145T,3526M,TEFC,F1 Suitable for mounting any position 88 power factor Rigid base
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General purpose |
| Base | Rigid |
| Brand | Baldor-Reliance |
| Catalog Number | EM3555T |
| Country of Origin | US |
| Duty | Continuous |
| Enclosure | TEFC |
| Frame | 145 |
| Frequency Rating | 60 Hz |
| Full Load Current | 2.5/5/5.3 A |
| Gross Weight Per Pack | 43.0000 lb |
| Horsepower | 2 hp |
| Insulation Class | F |
| Manufacturer | Baldor-Reliance (ABB) |
| Mounting | F1 |
| NEMA DESIGN | B |
| Phase | 3 |
| Power Factor | 1.00 |
| Rotation | Reversible |
| Service Factor | 1 |
| Speed Rating | 3,490 rpm |
| Standards | CSA Certified, UR Standard |
| Stock Status | NONSTOCK |
| Sub Brand | Super-E |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156821769 |
| UPC 12 | 78156821769 |
| Voltage Rating | 208/230/460 V |
| General Purpose |
| 2HP,3490RPM,3PH,60HZ,145T,3526M,TEFC,F1 |
| Suitable for mounting any position |
| 88 power factor |
| Rigid base |
