Baldor-Reliance

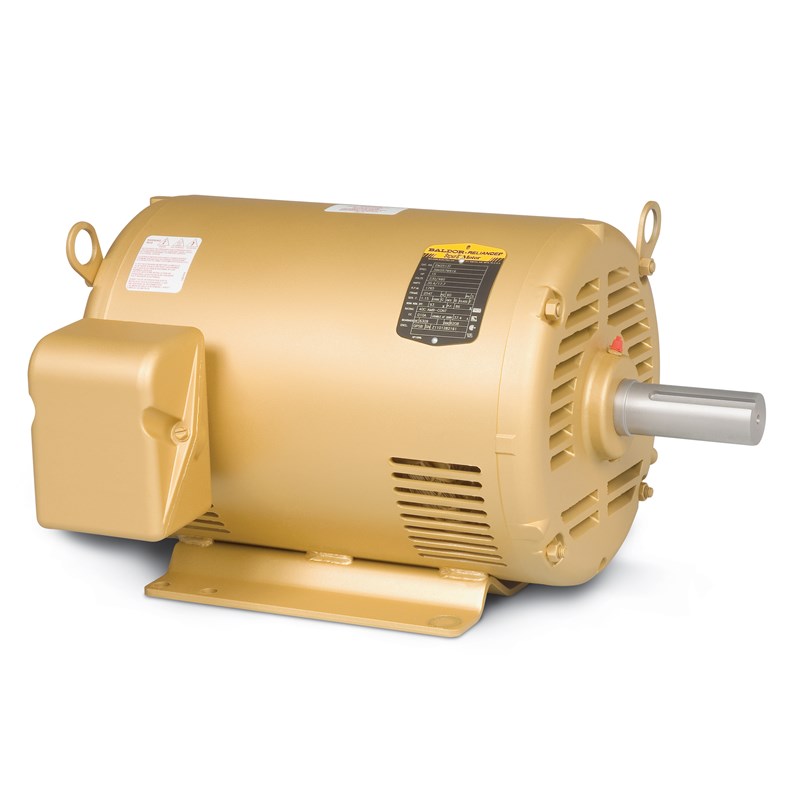

Baldor-Reliance Super-E® EM2547T AC Motor, 230/460 VAC, 68/136 A, 364 Frame, 60 hp, 1775 rpm
Custom_Product_Images_Illustration
Baldor-Reliance
Baldor-Reliance Super-E® EM2547T AC Motor, 230/460 VAC, 68/136 A, 364 Frame, 60 hp, 1775 rpm
SKU1174044
MFGR #EM2547T
Your Cost: $7,593.97/ea
List: Baldor-Reliance Super-E® AC Motor, 230/460 VAC, 68/136 A, 60 Hz, 60 hp, 3, 1775 rpm, 1 Speed, OPSB, 364 Frame, 2-3/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 624 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 30.69 in L x 20.76 in W x 16.59 in H
Baldor-Reliance Super-E® AC Motor, 230/460 VAC, 68/136 A, 60 Hz, 60 hp, 3, 1775 rpm, 1 Speed, OPSB, 364 Frame, 2-3/8 in Dia Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 624 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 30.69 in L x 20.76 in W x 16.59 in H
Application General Purpose Base Rigid Catalog Number EM2547T Country of Origin US Duty Continuous Frequency Rating 60 Hz Gross Weight Per Pack 615.0000 lb Insulation Class F NEMA DESIGN B Rotation Reversible Service Factor 1 Standards CSA Certified, UR Standard Sub Brand Super-E Type AC Motors UNSPSC 26101112 UPC 11 78156810524 UPC 12 78156810524 Stock Status NONSTOCK Brand Baldor-Reliance Manufacturer Baldor-Reliance (ABB) Enclosure OPSB Frame 364 Full Load Current 68/136 A Horsepower 60 hp Mounting F1 Phase 3 Power Factor 1.00 Speed Rating 1,775 rpm Voltage Rating 230/460 V General Purpose 60HP,1775RPM,3PH,60HZ,364T,4278M,OPSB,F1 Cast iron frames available Copper windings 87 power factor Rigid base
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | General Purpose |
| Base | Rigid |
| Catalog Number | EM2547T |
| Country of Origin | US |
| Duty | Continuous |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 615.0000 lb |
| Insulation Class | F |
| NEMA DESIGN | B |
| Rotation | Reversible |
| Service Factor | 1 |
| Standards | CSA Certified, UR Standard |
| Sub Brand | Super-E |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156810524 |
| UPC 12 | 78156810524 |
| Stock Status | NONSTOCK |
| Brand | Baldor-Reliance |
| Manufacturer | Baldor-Reliance (ABB) |
| Enclosure | OPSB |
| Frame | 364 |
| Full Load Current | 68/136 A |
| Horsepower | 60 hp |
| Mounting | F1 |
| Phase | 3 |
| Power Factor | 1.00 |
| Speed Rating | 1,775 rpm |
| Voltage Rating | 230/460 V |
| General Purpose |
| 60HP,1775RPM,3PH,60HZ,364T,4278M,OPSB,F1 |
| Cast iron frames available |
| Copper windings |
| 87 power factor |
| Rigid base |
