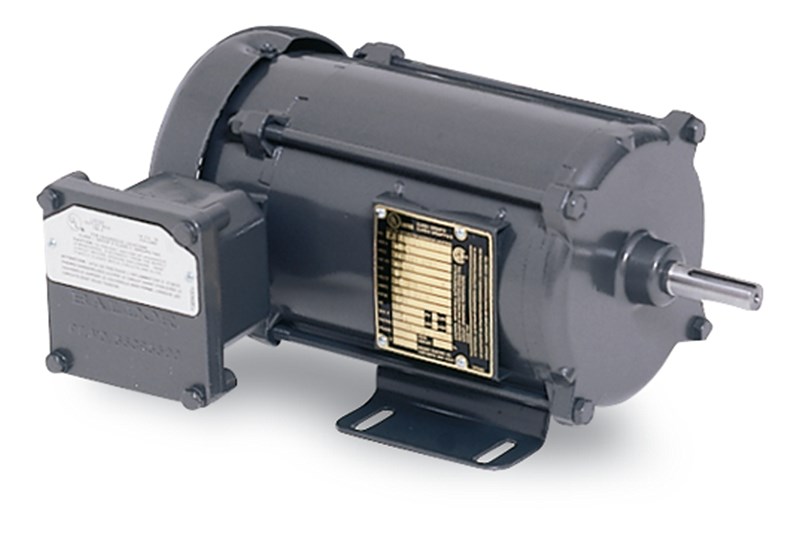

Baldor-Reliance M7002A AC Motor, 208/230/460 VAC, 0.8/1.6/1.8 A, 56 Frame, 1/3 hp, 1725 rpm
Custom_Product_Images_Illustration
Baldor-Reliance M7002A AC Motor, 208/230/460 VAC, 0.8/1.6/1.8 A, 56 Frame, 1/3 hp, 1725 rpm
SKU807738
MFGR #M7002A
Your Cost: $490.95/ea
List: Baldor-Reliance AC Motor, 208/230/460 VAC, 0.8/1.6/1.8 A, 60 Hz, 1/3 hp, 3, 1725 rpm, 1 Speed, XPFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1, Ball Bearing, 4.7 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 13.22 in L x 6.6 in H
Baldor-Reliance AC Motor, 208/230/460 VAC, 0.8/1.6/1.8 A, 60 Hz, 1/3 hp, 3, 1725 rpm, 1 Speed, XPFC, 56 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1, Ball Bearing, 4.7 ft-lb, F1 Mount, 40 deg C, Insulation Class: F, Steel, 13.22 in L x 6.6 in H
Application Hazardous Location Motor Base Rigid Brand Baldor-Reliance Catalog Number M7002A Country of Origin US Duty Continuous Enclosure XPFC Frame 56 Frequency Rating 60 Hz Full Load Current 0.8/1.6/1.8 A Gross Weight Per Pack 27.0000 lb Horsepower 330 hp Insulation Class F Manufacturer Baldor-Reliance (ABB) Mounting F1 NEMA DESIGN B Phase 3 Power Factor 1.00 Rotation Reversible Service Factor 1 Speed Rating 1,725 rpm Standards CSA Certified, UL Listed, UR Standard, NEMA Stock Status NONSTOCK Type AC Motors UNSPSC 26101112 UPC 11 78156810581 UPC 12 78156810581 Voltage Rating 208/230/460 V Hazardous Location Motor .33HP,1725RPM,3PH,60HZ,56,X3413M,XPFC,F1 Corrosion resistant epoxy finish 57 power factor Rigid base
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Hazardous Location Motor |
| Base | Rigid |
| Brand | Baldor-Reliance |
| Catalog Number | M7002A |
| Country of Origin | US |
| Duty | Continuous |
| Enclosure | XPFC |
| Frame | 56 |
| Frequency Rating | 60 Hz |
| Full Load Current | 0.8/1.6/1.8 A |
| Gross Weight Per Pack | 27.0000 lb |
| Horsepower | 330 hp |
| Insulation Class | F |
| Manufacturer | Baldor-Reliance (ABB) |
| Mounting | F1 |
| NEMA DESIGN | B |
| Phase | 3 |
| Power Factor | 1.00 |
| Rotation | Reversible |
| Service Factor | 1 |
| Speed Rating | 1,725 rpm |
| Standards | CSA Certified, UL Listed, UR Standard, NEMA |
| Stock Status | NONSTOCK |
| Type | AC Motors |
| UNSPSC | 26101112 |
| UPC 11 | 78156810581 |
| UPC 12 | 78156810581 |
| Voltage Rating | 208/230/460 V |
| Hazardous Location Motor |
| .33HP,1725RPM,3PH,60HZ,56,X3413M,XPFC,F1 |
| Corrosion resistant epoxy finish |
| 57 power factor |
| Rigid base |
