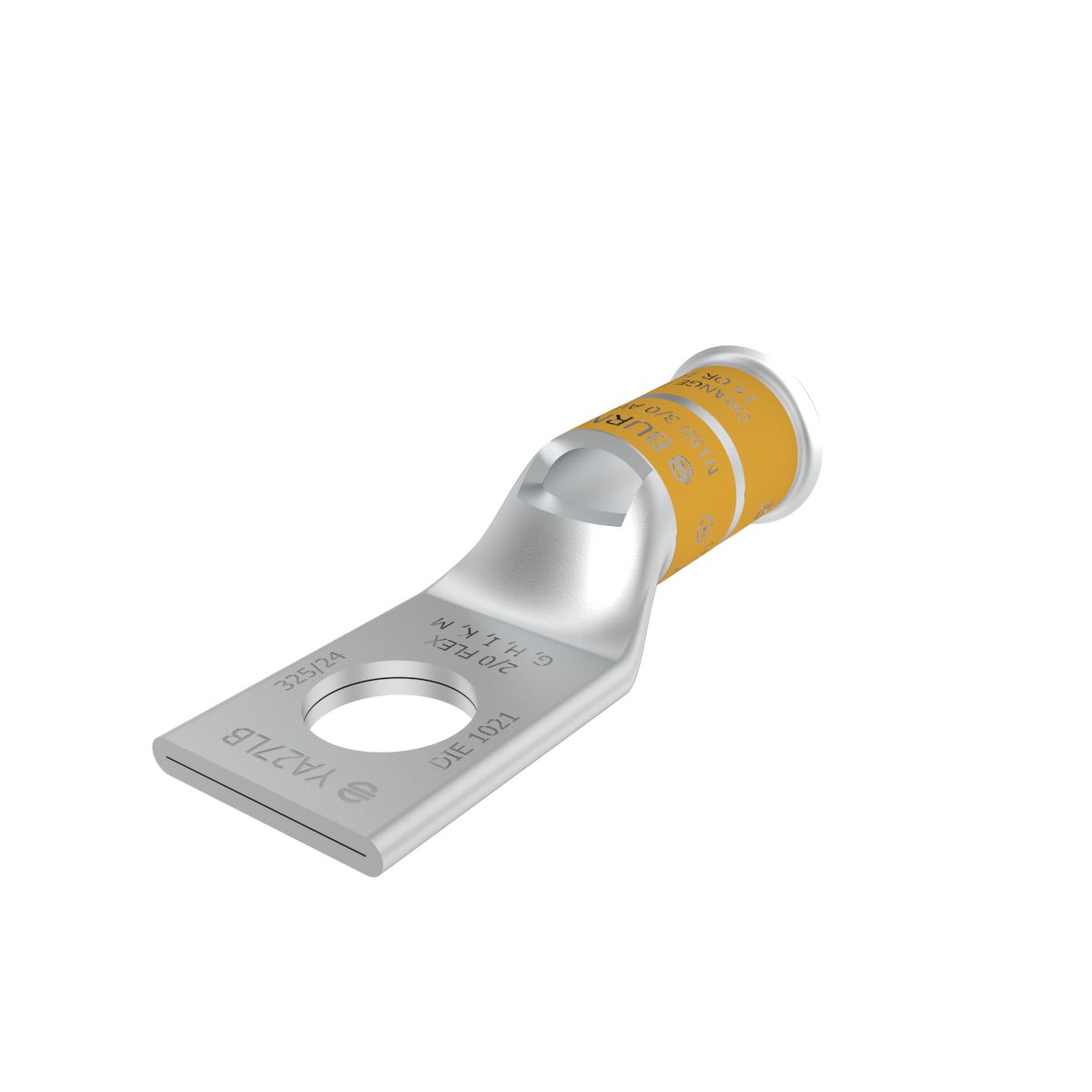

BURNDY® HYLUG™ YA-LB 1-Hole Compression Lug With Inspection Window, 3/0 AWG Copper Conductor, 1/2 in Stud, 14, Copper
Custom_Product_Images_Illustration
BURNDY® HYLUG™ YA-LB 1-Hole Compression Lug With Inspection Window, 3/0 AWG Copper Conductor, 1/2 in Stud, 14, Copper
SKU1093733
MFGR #YA27LB
Your Cost: $13.55/ea
List: BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Application Wire Termination ARRA Compliant C Barrel Size 0.99 in L Barrel Type Belled End/Standard/Short Buy American Compliant C Catalog Number YA27LB Color Orange Color Code Orange Country of Origin US EU RoHS Indicator Y Gross Weight Per Pack 0.0800 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8535908020 Height 0.62 in Height [Metric] 1.5748 cm Length 2.61 in Length [Metric] 6.6294 cm Overall Length 2.61 in Returnable Y Series YA-LB Specifications 1-1/16 in L Wire Strip Standard UL 486A-486B Sub Brand HYLUG Temperature Rating 90 °C Tongue Size 0.91 in W x 0.12 in THK Tongue Type Standard Straight Type Standard Belled Barrel, Tin Plated UNSPSC 39121405 UPC 11 78181050332 UPC 12 781810503324 Voltage Rating 35,000 V Width 0.91 in Width [Metric] 2.3114 cm Stock Status NONSTOCK Brand BURNDY® Manufacturer BURNDY® Conductor Size 3/0 AWG Conductor Type Solid/Stranded Copper Die Code 14 Material Copper Stud Size 1/2 in Wire Termination Features: UL Listed 90 DEG C, 600 V - 35 KV, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: U27D-1 Die Nest, Y34PR2 Die Indentor, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Conductor Type: Flexible Copper, Welding Cable, Class M (#34 STR), Locomotive Cable, Battery Cable, Class K (#30 STR), Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Wire Strip Length: 1-1/16 IN, Die Index: 1021 For die nest catalog number, die indentor catalog number: U27D-1 die nest, Y34PR2 die indentor installation tool Welding cable, class M (no 34 STR), locomotive cable, battery cable, class K (no 30 STR), dieless tools (number of crimps): (1) Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool 2/0 AWG flex (Class G, H, I, M) size, 2/0 (375/NO 24) DLO size, 150 (61) navy cable size, 3/0 AWG copper stranded/solid conductor Electro tin plated 3/0 AWG stranded/solid conductor size 1-1/16 in L Strip Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Application | Wire Termination |
ARRA Compliant | C |
Barrel Size | 0.99 in L |
Barrel Type | Belled End/Standard/Short |
Buy American Compliant | C |
Catalog Number | YA27LB |
Color | Orange |
Color Code | Orange |
Country of Origin | US |
EU RoHS Indicator | Y |
Gross Weight Per Pack | 0.0800 lb |
Gross Weight per Pack Metric | 0.04 |
Gross Weight UOM Metric | kg |
Harmonization Tariff Schedule Code | 8535908020 |
Height | 0.62 in |
Height [Metric] | 1.5748 cm |
Length | 2.61 in |
Length [Metric] | 6.6294 cm |
Overall Length | 2.61 in |
Returnable | Y |
Series | YA-LB |
Specifications | 1-1/16 in L Wire Strip |
Standard | UL 486A-486B |
Sub Brand | HYLUG |
Temperature Rating | 90 °C |
Tongue Size | 0.91 in W x 0.12 in THK |
Tongue Type | Standard Straight |
Type | Standard Belled Barrel, Tin Plated |
UNSPSC | 39121405 |
UPC 11 | 78181050332 |
UPC 12 | 781810503324 |
Voltage Rating | 35,000 V |
Width | 0.91 in |
Width [Metric] | 2.3114 cm |
Stock Status | NONSTOCK |
Brand | BURNDY® |
Manufacturer | BURNDY® |
Conductor Size | 3/0 AWG |
Conductor Type | Solid/Stranded Copper |
Die Code | 14 |
Material | Copper |
Stud Size | 1/2 in |
Wire Termination |
Features: UL Listed 90 DEG C, 600 V - 35 KV, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: U27D-1 Die Nest, Y34PR2 Die Indentor, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Conductor Type: Flexible Copper, Welding Cable, Class M (#34 STR), Locomotive Cable, Battery Cable, Class K (#30 STR), Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Wire Strip Length: 1-1/16 IN, Die Index: 1021 |
For die nest catalog number, die indentor catalog number: U27D-1 die nest, Y34PR2 die indentor installation tool |
Welding cable, class M (no 34 STR), locomotive cable, battery cable, class K (no 30 STR), dieless tools (number of crimps): (1) Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool |
2/0 AWG flex (Class G, H, I, M) size, 2/0 (375/NO 24) DLO size, 150 (61) navy cable size, 3/0 AWG copper stranded/solid conductor |
Electro tin plated |
3/0 AWG stranded/solid conductor size |
1-1/16 in L Strip |
Electro Tin Plated Copper |
