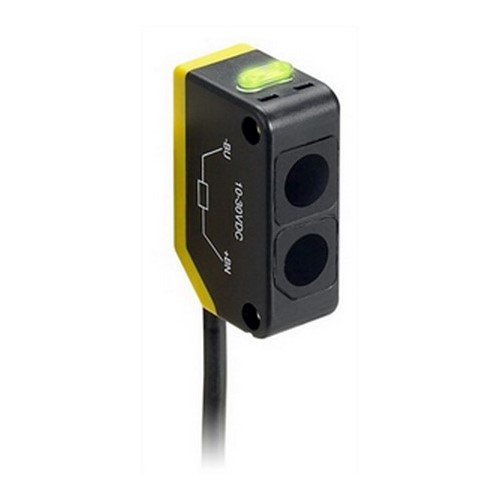

BANNER Q20PDLQ5
SKU412343
MFGR #Q20PDLQ5
$/ea
World-Beam Q20 Series Compact Self-Contained Proximity Long-Range Diffuse Mode Photoelectric Sensor, Voltage Rating: 10 - 30 VDC, Amperage Rating: Less Than 18 MILAMP, Sensing Range: 800 MM, Sensing Beam: 624 NMTR Visible Red LED, Output: Complementary Solid State PNP, Lens: PMMA, Enclosure: IEC IP67, NEMA 6, ABS Rectangular Thermoplastic, Response Time: 800 MICSEC On/Off, Leakage Current: Off-State Output: Less Than 10 MICAMP Sourcing, Vibration: 10 - 60 HZ Maximum, Double Amplitude 0.06 IN, Maximum Acceleration 10G, Connection: 150 MM Pigtail With 4-Pin Euro-Style Quick Disconnect, Size: 33.8 MM Height x 19.98 MM Width x 12 MM Depth, Operating Temperature: -20 To 60 DEG C, Environmental Conditions: Relative Humidity: 95 PCT At 50 DEG C (Non-Condensing), Operation: Light/Dark, Delay At Power-Up: 100 MS, Repeatability: 155 MICSEC, Output Rating: 100 MILAMP With Short Circuit Protection, On-State Saturation Voltage: Less Than 3 V At 100 MILAMP, CE Certified, Meets MIL-STD-202F Requirements Method 201A, IEC 947-5-2; 30G 11 MS Duration, Half Sine Wave, For Global Manufacturing
World-Beam Q20 Series Compact Self-Contained Proximity Long-Range Diffuse Mode Photoelectric Sensor, Voltage Rating: 10 - 30 VDC, Amperage Rating: Less Than 18 MILAMP, Sensing Range: 800 MM, Sensing Beam: 624 NMTR Visible Red LED, Output: Complementary Solid State PNP, Lens: PMMA, Enclosure: IEC IP67, NEMA 6, ABS Rectangular Thermoplastic, Response Time: 800 MICSEC On/Off, Leakage Current: Off-State Output: Less Than 10 MICAMP Sourcing, Vibration: 10 - 60 HZ Maximum, Double Amplitude 0.06 IN, Maximum Acceleration 10G, Connection: 150 MM Pigtail With 4-Pin Euro-Style Quick Disconnect, Size: 33.8 MM Height x 19.98 MM Width x 12 MM Depth, Operating Temperature: -20 To 60 DEG C, Environmental Conditions: Relative Humidity: 95 PCT At 50 DEG C (Non-Condensing), Operation: Light/Dark, Delay At Power-Up: 100 MS, Repeatability: 155 MICSEC, Output Rating: 100 MILAMP With Short Circuit Protection, On-State Saturation Voltage: Less Than 3 V At 100 MILAMP, CE Certified, Meets MIL-STD-202F Requirements Method 201A, IEC 947-5-2; 30G 11 MS Duration, Half Sine Wave, For Global Manufacturing
Amperage Rating 18m A Application For Global Manufacturing Catalog Number Q20PDLQ5 Connection 150 MM Pigtail With 4-Pin Euro-Style Quick Disconnect Country of Origin CN/MX Enclosure IEC IP67, NEMA 6, ABS Rectangular Thermoplastic Environmental Conditions Relative Humidity: 95 PCT At 50 DEG C (Non-Condensing) Gross Weight Per Pack 0.0500 lb Leakage Current Off-State Output: Less Than 10 MICAMP Sourcing Lens PMMA Operating Temperature -20 To 60 Output Complementary Solid State PNP Size 33.8 MM Height x 19.98 MM Width x 12 MM Depth Sub Brand World-Beam Type Q20 Series Compact Self-Contained Proximity Long-Range Diffuse Mode Photoelectric Sensor UNSPSC 39121528 UPC 11 66248878187 UPC 12 66248878187 Vibration 10 - 60 HZ Maximum, Double Amplitude 0.06 IN, Maximum Acceleration 10G Voltage Rating 30 V Stock Status NONSTOCK Brand Banner® Manufacturer Banner Engineering Corp. Response Time 800 MICSEC On/Off Sensing Beam 624 NMTR Visible Red LED Sensing Range 800 For Global Manufacturing Banner's Q20 family of sensors offers a full complement of sensing modes, with the excellent performance expected of much larger sensors; Their compact plastic housings feature overmolded construction for superior robustness and sealing; Their popular rectangular design is easy to mount into tight spaces; integral threaded mounting holes eliminate the need for separate mounting nuts; The single-turn gain potentiometer on most models and bright LEDs (positioned on top of the housing for 360 DEG visibility) provide easy alignment and configuration for reliable sensing; Photoelectric sensors in a compact, rugged, sealed, over-molded plastic housing; Standard 3 MM threaded mounting holes on 25.4 MM spacing; Advanced electronic design for excellent noise immunity and cross-talk avoidance; Exceptional optical performance with easy to align visible red emitters; Rated t
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 18m A |
| Application | For Global Manufacturing |
| Catalog Number | Q20PDLQ5 |
| Connection | 150 MM Pigtail With 4-Pin Euro-Style Quick Disconnect |
| Country of Origin | CN/MX |
| Enclosure | IEC IP67, NEMA 6, ABS Rectangular Thermoplastic |
| Environmental Conditions | Relative Humidity: 95 PCT At 50 DEG C (Non-Condensing) |
| Gross Weight Per Pack | 0.0500 lb |
| Leakage Current | Off-State Output: Less Than 10 MICAMP Sourcing |
| Lens | PMMA |
| Operating Temperature | -20 To 60 |
| Output | Complementary Solid State PNP |
| Size | 33.8 MM Height x 19.98 MM Width x 12 MM Depth |
| Sub Brand | World-Beam |
| Type | Q20 Series Compact Self-Contained Proximity Long-Range Diffuse Mode Photoelectric Sensor |
| UNSPSC | 39121528 |
| UPC 11 | 66248878187 |
| UPC 12 | 66248878187 |
| Vibration | 10 - 60 HZ Maximum, Double Amplitude 0.06 IN, Maximum Acceleration 10G |
| Voltage Rating | 30 V |
| Stock Status | NONSTOCK |
| Brand | Banner® |
| Manufacturer | Banner Engineering Corp. |
| Response Time | 800 MICSEC On/Off |
| Sensing Beam | 624 NMTR Visible Red LED |
| Sensing Range | 800 |
| For Global Manufacturing |
| Banner's Q20 family of sensors offers a full complement of sensing modes, with the excellent performance expected of much larger sensors; Their compact plastic housings feature overmolded construction for superior robustness and sealing; Their popular rectangular design is easy to mount into tight spaces; integral threaded mounting holes eliminate the need for separate mounting nuts; The single-turn gain potentiometer on most models and bright LEDs (positioned on top of the housing for 360 DEG visibility) provide easy alignment and configuration for reliable sensing; Photoelectric sensors in a compact, rugged, sealed, over-molded plastic housing; Standard 3 MM threaded mounting holes on 25.4 MM spacing; Advanced electronic design for excellent noise immunity and cross-talk avoidance; Exceptional optical performance with easy to align visible red emitters; Rated t |
