B-Line

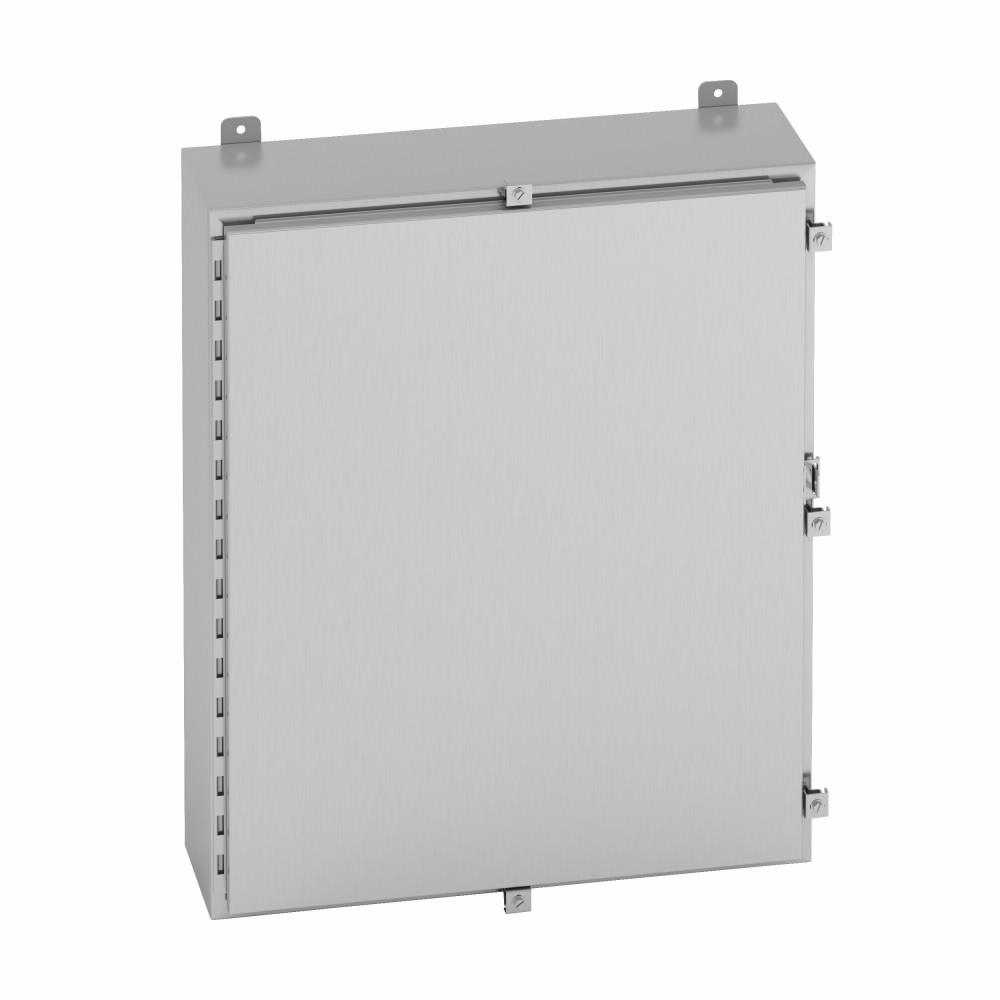

B-Line 242412-4XS 1-Door Wall Mount Enclosure, 24 in W x 12 in D, NEMA 4X, 304 Stainless Steel
Custom_Product_Images_Illustration
B-Line
B-Line 242412-4XS 1-Door Wall Mount Enclosure, 24 in W x 12 in D, NEMA 4X, 304 Stainless Steel
SKU907051
MFGR #242412-4XS
$/ea
B-Line Wall Mount Enclosure, 1-Door, 24 in Width, 12 in Depth, NEMA 4X, Hinged Cover, 20.87 in H x 20.87 in W Panel, Padlock Hasp Lock, Wall Mount, 304 Stainless Steel, Smooth Brushed
B-Line Wall Mount Enclosure, 1-Door, 24 in Width, 12 in Depth, NEMA 4X, Hinged Cover, 20.87 in H x 20.87 in W Panel, Padlock Hasp Lock, Wall Mount, 304 Stainless Steel, Smooth Brushed
Alternate Catalog Number 78205140752 ARRA Compliant C Buy American Compliant C Catalog Number 242412-4XS Color Gray Country of Origin US Cover Type Continuous Hinged Currency USD EU RoHS Indicator C Finish Smooth Brushed Gross Weight Per Pack 56.5160 lb Gross Weight per Pack Metric 25.81 Gross Weight UOM Metric kg Height [Metric] 60.9600 cm Length [Metric] 30.4800 cm Lock Padlock Hasp Mounting Wall Mounting Type External Feet/Wall Panel Size 20.87 in H x 20.87 in W Returnable Y Size 24.00 In Width X 12.00 In Depth X 24.00 In Height Standard UL 508, CSA C22.2, IEC 60529 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 508ACSA C22.2 No. 94IEC 60529 Sub Brand B-Line series Type 1-Door UNSPSC 39121324 UPC 11 78205140752 UPC 12 782051407525 Width [Metric] 60.9600 cm Stock Status NONSTOCK Brand B-Line Manufacturer Eaton Depth 12 in Height 24.00 in Length 12.00 in Material 304 Stainless Steel NEMA Rating NEMA 4X/IP66 Width 24.00 in Commercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - AftermarketCommercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - OtherGeneration - Renewable Energy - Alternative EnergyUtility - Substations, Utility Transmission and DistributionCommercial / Institutional Buildings / Structures - Power Distribution and ControlsDatacenters - IT Space: CI and Hyper ConvergedCommercial / Institutional Buildings / Structures - Critical PowerOther IT and Datacom - IT and Datacomm - OtherCommercial / Institutional Buildings / Structures - Safety and Security SystemsCommercial / Institutional Buildings / Structures - Lighting and Lighting ControlsCommercial / Institutional Buildings / Structures - Building Automation and Monitoring Stainless door clamps Enclosure and door are fabricated from 14 ga type 304 or type 316l stainless steel All continuous welded seams are finished smooth Doors are secured to the body with a heavy duty, stainless steel continuous hinge and pin ON one side and easy-to release stainless steel door clamps mounted to the other three sides Each door has a padlock hasp with sealing hole provision Print pocket provided Door has a seamless poured in place gasket Ground stud provided ON door and body Formed lip around enclosure openings to diverts liquids and contaminants 3/8-16 collar studs are furnished for mounting optional panel External mounting feet are provided for secure wall mounting Protects against corrosion, windblown dust and rain, splashing water and hose directed water
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 78205140752 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 242412-4XS |
| Color | Gray |
| Country of Origin | US |
| Cover Type | Continuous Hinged |
| Currency | USD |
| EU RoHS Indicator | C |
| Finish | Smooth Brushed |
| Gross Weight Per Pack | 56.5160 lb |
| Gross Weight per Pack Metric | 25.81 |
| Gross Weight UOM Metric | kg |
| Height [Metric] | 60.9600 cm |
| Length [Metric] | 30.4800 cm |
| Lock | Padlock Hasp |
| Mounting | Wall |
| Mounting Type | External Feet/Wall |
| Panel Size | 20.87 in H x 20.87 in W |
| Returnable | Y |
| Size | 24.00 In Width X 12.00 In Depth X 24.00 In Height |
| Standard | UL 508, CSA C22.2, IEC 60529 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 508ACSA C22.2 No. 94IEC 60529 |
| Sub Brand | B-Line series |
| Type | 1-Door |
| UNSPSC | 39121324 |
| UPC 11 | 78205140752 |
| UPC 12 | 782051407525 |
| Width [Metric] | 60.9600 cm |
| Stock Status | NONSTOCK |
| Brand | B-Line |
| Manufacturer | Eaton |
| Depth | 12 in |
| Height | 24.00 in |
| Length | 12.00 in |
| Material | 304 Stainless Steel |
| NEMA Rating | NEMA 4X/IP66 |
| Width | 24.00 in |
| Commercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - AftermarketCommercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - OtherGeneration - Renewable Energy - Alternative EnergyUtility - Substations, Utility Transmission and DistributionCommercial / Institutional Buildings / Structures - Power Distribution and ControlsDatacenters - IT Space: CI and Hyper ConvergedCommercial / Institutional Buildings / Structures - Critical PowerOther IT and Datacom - IT and Datacomm - OtherCommercial / Institutional Buildings / Structures - Safety and Security SystemsCommercial / Institutional Buildings / Structures - Lighting and Lighting ControlsCommercial / Institutional Buildings / Structures - Building Automation and Monitoring |
| Stainless door clamps |
| Enclosure and door are fabricated from 14 ga type 304 or type 316l stainless steel |
| All continuous welded seams are finished smooth |
| Doors are secured to the body with a heavy duty, stainless steel continuous hinge and pin ON one side and easy-to release stainless steel door clamps mounted to the other three sides |
| Each door has a padlock hasp with sealing hole provision |
| Print pocket provided |
| Door has a seamless poured in place gasket |
| Ground stud provided ON door and body |
| Formed lip around enclosure openings to diverts liquids and contaminants |
| 3/8-16 collar studs are furnished for mounting optional panel |
| External mounting feet are provided for secure wall mounting |
| Protects against corrosion, windblown dust and rain, splashing water and hose directed water |
