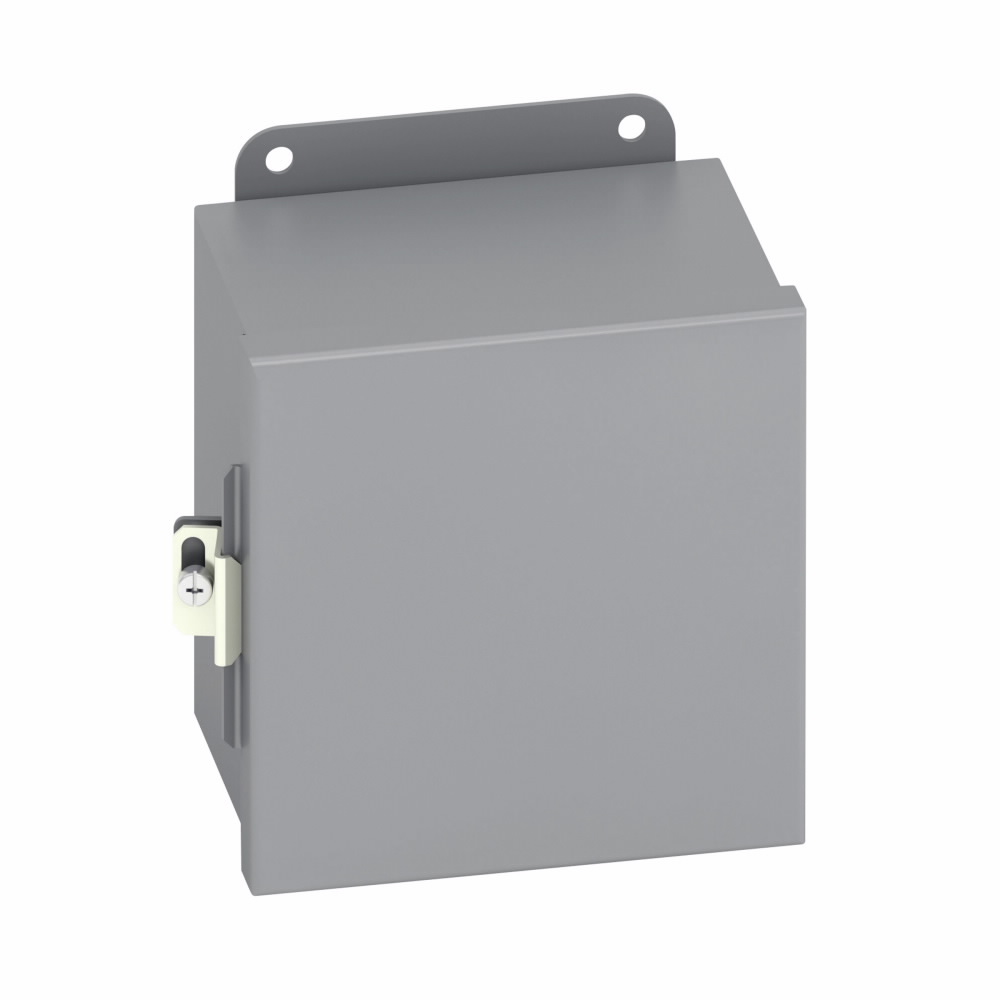

B-Line 12126-12CHC 1-Door JIC Enclosure, 12 in L x 12 in W x 6 in D, NEMA 12/IP65, Steel
Custom_Product_Images_Illustration
B-Line 12126-12CHC 1-Door JIC Enclosure, 12 in L x 12 in W x 6 in D, NEMA 12/IP65, Steel
SKU919726
MFGR #12126-12CHC
Your Cost: $320.36/ea
List: B-Line JIC Enclosure, 1-Door, 12 in Length, 12 in Width, 6 in Depth, NEMA 12/IP65, Continuous Hinged Cover, 10.87 x 10.87 in Panel, Wall/External Feet Mount, Steel, Powder Coated, Gray
B-Line JIC Enclosure, 1-Door, 12 in Length, 12 in Width, 6 in Depth, NEMA 12/IP65, Continuous Hinged Cover, 10.87 x 10.87 in Panel, Wall/External Feet Mount, Steel, Powder Coated, Gray
Alternate Catalog Number 78205170022 ARRA Compliant C Buy American Compliant C Catalog Number 12126-12CHC Color ANSI 61 Gray Country of Origin US Cover Type Continuous Hinged Currency USD EU RoHS Indicator C Finish Polyester Powder Coated/Phosphate Undercoat Gross Weight Per Pack 11.7030 lb Gross Weight per Pack Metric 5.31 Gross Weight UOM Metric kg Height [Metric] 30.4800 cm Length [Metric] 15.2400 cm Mounting External Feet, Wall Mounting Type External Feet/Wall Panel Size 10.87 in H x 10.87 in W Returnable Y Size 12.00 In Width X 6.00 In Depth X 12.00 In Height Standard UL 508, CSA C22.2, IEC 60529 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 508ACSA C22.2 No. 94IEC 60529 Sub Brand B-Line series Type 1-Door UNSPSC 39121324 UPC 11 78205170022 UPC 12 782051700220 Width [Metric] 25.4000 cm Stock Status NONSTOCK Brand B-Line Manufacturer Eaton Depth 6 in Height 12.00 in Length 6.00 in Material Steel NEMA Rating NEMA 12/IP65 Width 10.00 in Ind Facilities & Factories - Mfg. Process Electrification and ControlCommercial / Institutional Buildings / Structures - Critical PowerInd Facilities & Factories - Facility: Safety and Security SystemsInd Facilities & Factories - Facility: Automation and MonitoringCommercial / Institutional Buildings / Structures - Power Distribution and ControlsCommercial / Institutional Buildings / Structures - Lighting and Lighting ControlsInd Facilities & Factories - Industrial Facilities/Factories - OtherInd Facilities & Factories - Facility: Power Distribution and ControlInd Facilities & Factories - Facility: Critical PowerInd Facilities & Factories - Facility: Lighting and Lighting ControlsUtility - Substations, Utility Transmission and Distribution Cont. piano hinge, panel mount,plated door clamps Enclosure and cover are fabricated from (16) gauge steel All continuous welded seams are finished smooth Cover is secured to the body with a continuous hinge on one side and easy-to-operate screw clamps mounted to the opposite side Cover has a seamless poured in-place gasket Ground stud provided on cover NO 10-32 weldnuts are provided for mounting optional panel on 6 x 4 in and larger enclosures External mounting feet are provided for secure wall mounting Protects against circulating dust, falling dirt and dripping non-corrosive liquids Wash and phosphate undercoat ANSI 61 gray polyester powder finish Hardware and clamps are zinc plated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 78205170022 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 12126-12CHC |
| Color | ANSI 61 Gray |
| Country of Origin | US |
| Cover Type | Continuous Hinged |
| Currency | USD |
| EU RoHS Indicator | C |
| Finish | Polyester Powder Coated/Phosphate Undercoat |
| Gross Weight Per Pack | 11.7030 lb |
| Gross Weight per Pack Metric | 5.31 |
| Gross Weight UOM Metric | kg |
| Height [Metric] | 30.4800 cm |
| Length [Metric] | 15.2400 cm |
| Mounting | External Feet, Wall |
| Mounting Type | External Feet/Wall |
| Panel Size | 10.87 in H x 10.87 in W |
| Returnable | Y |
| Size | 12.00 In Width X 6.00 In Depth X 12.00 In Height |
| Standard | UL 508, CSA C22.2, IEC 60529 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 508ACSA C22.2 No. 94IEC 60529 |
| Sub Brand | B-Line series |
| Type | 1-Door |
| UNSPSC | 39121324 |
| UPC 11 | 78205170022 |
| UPC 12 | 782051700220 |
| Width [Metric] | 25.4000 cm |
| Stock Status | NONSTOCK |
| Brand | B-Line |
| Manufacturer | Eaton |
| Depth | 6 in |
| Height | 12.00 in |
| Length | 6.00 in |
| Material | Steel |
| NEMA Rating | NEMA 12/IP65 |
| Width | 10.00 in |
| Ind Facilities & Factories - Mfg. Process Electrification and ControlCommercial / Institutional Buildings / Structures - Critical PowerInd Facilities & Factories - Facility: Safety and Security SystemsInd Facilities & Factories - Facility: Automation and MonitoringCommercial / Institutional Buildings / Structures - Power Distribution and ControlsCommercial / Institutional Buildings / Structures - Lighting and Lighting ControlsInd Facilities & Factories - Industrial Facilities/Factories - OtherInd Facilities & Factories - Facility: Power Distribution and ControlInd Facilities & Factories - Facility: Critical PowerInd Facilities & Factories - Facility: Lighting and Lighting ControlsUtility - Substations, Utility Transmission and Distribution |
| Cont. piano hinge, panel mount,plated door clamps |
| Enclosure and cover are fabricated from (16) gauge steel |
| All continuous welded seams are finished smooth |
| Cover is secured to the body with a continuous hinge on one side and easy-to-operate screw clamps mounted to the opposite side |
| Cover has a seamless poured in-place gasket |
| Ground stud provided on cover |
| NO 10-32 weldnuts are provided for mounting optional panel on 6 x 4 in and larger enclosures |
| External mounting feet are provided for secure wall mounting |
| Protects against circulating dust, falling dirt and dripping non-corrosive liquids |
| Wash and phosphate undercoat |
| ANSI 61 gray polyester powder finish |
| Hardware and clamps are zinc plated |
