Appleton™

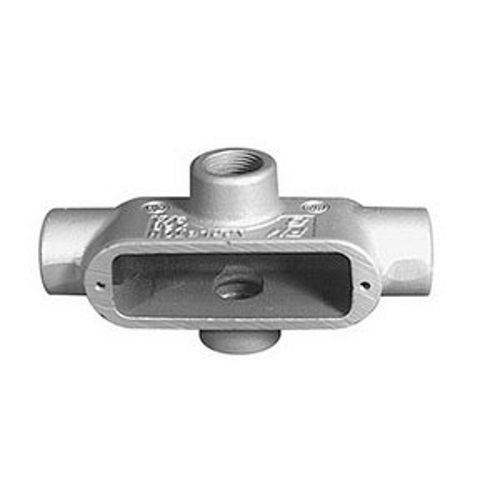

Appleton® X58 Type X Conduit Outlet Body, 1-1/2 in Hub, 8, 44 cu-in, Grayloy-Iron, Tri-Coated
Custom_Product_Images_Illustration
Appleton™
Appleton® X58 Type X Conduit Outlet Body, 1-1/2 in Hub, 8, 44 cu-in, Grayloy-Iron, Tri-Coated
SKU181610
MFGR #X58
Your Cost: $160.67/ea
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality componets you need.
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality componets you need.
Application For Use With Rigid Steel Conduit And IMC ARRA Compliant N Buy American Compliant N Catalog Number X58 Color Gray Connection Tapered Female Threaded Country of Origin MX Currency USD EU RoHS Indicator N Gross Weight Per Pack 6.2000 lb Gross Weight per Pack Metric 1.24 Gross Weight UOM Metric kg Height 4.30 in Height [Metric] 10.9220 cm Length 11.90 in Length [Metric] 30.2260 cm Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards UL 514A, 514B, E2527 Listed, CSA C22.2 NO 18.3, CSA 065183 Certified Sub Brand UNILETS Type Type X Conduit Outlet Body UNSPSC 39131708 UPC 11 78138174450 UPC 12 781381744508 Width 5.10 in Width [Metric] 12.9540 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Form 8 Hub Size 1.5 in Material Grayloy-Iron For Use With Rigid Steel Conduit And IMC Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers; Equivalent FM8 and Form 8 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Wiring capacity: 44 CU-IN as per NEC 314.16(A) Serve as pulling fittings Provide openings for splicing Connect and change direction of conduit runs Allow connections for branch runs, permit access to conductors for maintenance Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers Equivalent FM8 and Form 8 units have identical applications and installation dimensions Flat back design provides greater cubic content for easier wire pulling and more room for splicing Fits flush and snug against flat surfaces for more stable installation Smooth hub openings allow easy conduit joining Smooth hub bushings and cover openings protect conductor insulation Covers with gaskets are approved for use in wet locations Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated) finish
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel Conduit And IMC |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | X58 |
| Color | Gray |
| Connection | Tapered Female Threaded |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 6.2000 lb |
| Gross Weight per Pack Metric | 1.24 |
| Gross Weight UOM Metric | kg |
| Height | 4.30 in |
| Height [Metric] | 10.9220 cm |
| Length | 11.90 in |
| Length [Metric] | 30.2260 cm |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | UL 514A, 514B, E2527 Listed, CSA C22.2 NO 18.3, CSA 065183 Certified |
| Sub Brand | UNILETS |
| Type | Type X Conduit Outlet Body |
| UNSPSC | 39131708 |
| UPC 11 | 78138174450 |
| UPC 12 | 781381744508 |
| Width | 5.10 in |
| Width [Metric] | 12.9540 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Form | 8 |
| Hub Size | 1.5 in |
| Material | Grayloy-Iron |
| For Use With Rigid Steel Conduit And IMC |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers; Equivalent FM8 and Form 8 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Wiring capacity: 44 CU-IN as per NEC 314.16(A) |
| Serve as pulling fittings |
| Provide openings for splicing |
| Connect and change direction of conduit runs |
| Allow connections for branch runs, permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers |
| Equivalent FM8 and Form 8 units have identical applications and installation dimensions |
| Flat back design provides greater cubic content for easier wire pulling and more room for splicing |
| Fits flush and snug against flat surfaces for more stable installation |
| Smooth hub openings allow easy conduit joining |
| Smooth hub bushings and cover openings protect conductor insulation |
| Covers with gaskets are approved for use in wet locations |
| Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated) finish |
