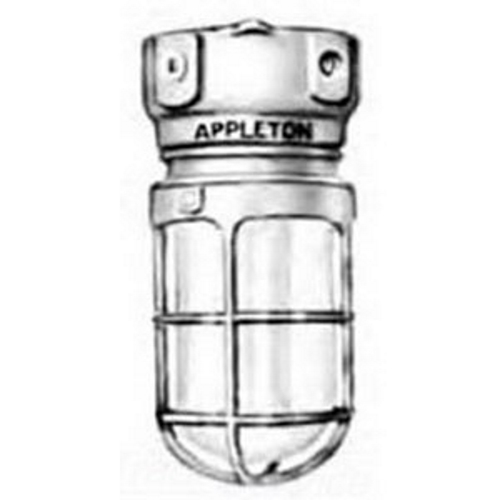

Appleton® V-51 VXHA2050G-M Area Lighting with Guard, PS30/Incandescent Lamp, 150 to 300 W Fixture, 150 VAC
Custom_Product_Images_Illustration
Appleton® V-51 VXHA2050G-M Area Lighting with Guard, PS30/Incandescent Lamp, 150 to 300 W Fixture, 150 VAC
SKU931427
MFGR #VXHA2050GM
Your Cost: $389.63/ea
Appleton® V-51 Area Lighting, 150 VAC, 150 to 300 W Fixture, PS30/Incandescent Lamp, 150 to 300 W Lamp, Medium Lamp Base, Glass Lens, Ceiling Mount, Malleable Iron Housing, Triple-Coated Housing, 9.5 in H x 5.69 in W
Appleton® V-51 Area Lighting, 150 VAC, 150 to 300 W Fixture, PS30/Incandescent Lamp, 150 to 300 W Lamp, Medium Lamp Base, Glass Lens, Ceiling Mount, Malleable Iron Housing, Triple-Coated Housing, 9.5 in H x 5.69 in W
Application For Enclosed And Gasketed Lighting Fixtures For Use In Storage Areas, Tunnels, Subways, Chemical Plants And Other Areas Where Moisture, Dirt Or Corrosive Atmospheres Are A Problem; Suitable For Use In Wet Locations; Use With Threaded Metal Conduit ARRA Compliant N Buy American Compliant N Catalog Number VXHA2050GM Country of Origin MX Currency USD Dimensions 5.69 in L x 5.69 in W x 12-1/4 in H EU RoHS Indicator C Gross Weight Per Pack 1 lb Height 12.25 in Housing Material Malleable Iron Lamp Base Type Medium Lamp Wattage 150 to 300 W Length 5.69 in Lens Type Natural Finish Glass Material Malleable Iron Mounting Hood With Aluminum Adapter And Steel Guard, Porcelain Socket With Brass Screw Shell Mounting Type Ceiling Number Of Lamps 1 Standard NEC: Class I, Division 2, Groups A, B, C, D; CSA Certified: Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 And 2, Groups E, F, G, Class III, Enclosure 3R; UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428 Standards UL 1598, 844, File No. E10444, CSA C22.2 No. 250, C22.2 No. 137, CSA 025428, Class I, Division 2, Groups A, B, C, D Sub Brand UNILETS Type V-51 Series Incandescent Luminaire With Guard UNSPSC 39111525 UPC 11 78138133678 UPC 12 781381336789 Width 5.69 in Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Fixture Wattage 150 to 300 W Housing Finish Triple Coated Lamp Type PS-30 Incandescent Voltage Rating 150 VAC For Enclosed And Gasketed Lighting Fixtures For Use In Storage Areas, Tunnels, Subways, Chemical Plants And Other Areas Where Moisture, Dirt Or Corrosive Atmospheres Are A Problem; Suitable For Use In Wet Locations; Use With Threaded Metal Conduit Furnished with connection block for easy wiring; Unitized construction reduces installation and maintenance costs; Shock-absorbing porcelain socket for longer lamp life; Neoprene rubber ring in neck of reflector snaps into groove of mounting hood - protects against vibration and chipping; Guard snaps into two recesses of adapter - no clamps or set screws; Five tapped openings and four close-up plugs Furnished with connection block for easy wiring Unitized construction reduces installation and maintenance costs Shock absorbing porcelain socket for longer lamp life Neoprene rubber ring in neck of reflector snaps into groove of mounting hood protects against vibration and chipping Guard snaps into two recesses of adapter, no clamps or setscrews Maximum input voltage 150 VAC Suitable for use in wet locations Standard fixtures designed for 60 to 300 W medium base incandescent lamps Malleable iron globe adapters Porcelain with brass screw shell socket Optional globes in polycarbonate plastic 100 W maximum Zinc electroplate steel guards White porcelain enamel steel reflectors UNILETS® for use with threaded metal conduit Five tapped openings (4) close up plugs Triple coat (zinc electroplate, chromate, epoxy powder) finish Triple coated (zinc electroplate/chromate/epoxy powder) housing finish
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Enclosed And Gasketed Lighting Fixtures For Use In Storage Areas, Tunnels, Subways, Chemical Plants And Other Areas Where Moisture, Dirt Or Corrosive Atmospheres Are A Problem; Suitable For Use In Wet Locations; Use With Threaded Metal Conduit |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | VXHA2050GM |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.69 in L x 5.69 in W x 12-1/4 in H |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1 lb |
| Height | 12.25 in |
| Housing Material | Malleable Iron |
| Lamp Base Type | Medium |
| Lamp Wattage | 150 to 300 W |
| Length | 5.69 in |
| Lens Type | Natural Finish Glass |
| Material | Malleable Iron Mounting Hood With Aluminum Adapter And Steel Guard, Porcelain Socket With Brass Screw Shell |
| Mounting Type | Ceiling |
| Number Of Lamps | 1 |
| Standard | NEC: Class I, Division 2, Groups A, B, C, D; CSA Certified: Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 And 2, Groups E, F, G, Class III, Enclosure 3R; UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428 |
| Standards | UL 1598, 844, File No. E10444, CSA C22.2 No. 250, C22.2 No. 137, CSA 025428, Class I, Division 2, Groups A, B, C, D |
| Sub Brand | UNILETS |
| Type | V-51 Series Incandescent Luminaire With Guard |
| UNSPSC | 39111525 |
| UPC 11 | 78138133678 |
| UPC 12 | 781381336789 |
| Width | 5.69 in |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Fixture Wattage | 150 to 300 W |
| Housing Finish | Triple Coated |
| Lamp Type | PS-30 Incandescent |
| Voltage Rating | 150 VAC |
| For Enclosed And Gasketed Lighting Fixtures For Use In Storage Areas, Tunnels, Subways, Chemical Plants And Other Areas Where Moisture, Dirt Or Corrosive Atmospheres Are A Problem; Suitable For Use In Wet Locations; Use With Threaded Metal Conduit |
| Furnished with connection block for easy wiring; Unitized construction reduces installation and maintenance costs; Shock-absorbing porcelain socket for longer lamp life; Neoprene rubber ring in neck of reflector snaps into groove of mounting hood - protects against vibration and chipping; Guard snaps into two recesses of adapter - no clamps or set screws; Five tapped openings and four close-up plugs |
| Furnished with connection block for easy wiring |
| Unitized construction reduces installation and maintenance costs |
| Shock absorbing porcelain socket for longer lamp life |
| Neoprene rubber ring in neck of reflector snaps into groove of mounting hood protects against vibration and chipping |
| Guard snaps into two recesses of adapter, no clamps or setscrews |
| Maximum input voltage 150 VAC |
| Suitable for use in wet locations |
| Standard fixtures designed for 60 to 300 W medium base incandescent lamps |
| Malleable iron globe adapters |
| Porcelain with brass screw shell socket |
| Optional globes in polycarbonate plastic 100 W maximum |
| Zinc electroplate steel guards |
| White porcelain enamel steel reflectors |
| UNILETS® for use with threaded metal conduit |
| Five tapped openings |
| (4) close up plugs |
| Triple coat (zinc electroplate, chromate, epoxy powder) finish |
| Triple coated (zinc electroplate/chromate/epoxy powder) housing finish |
